Government First Utility Smart Meter Digital Electric Meter Remote Control
Government First Utility Smart Meter Digital Electric Meter Remote Control
Specifications
Brand Name :
Calin
Model Number :
CA168-M
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
Single Phase smart electric Multi-function meter
Feature :
Modular design
Dimensions :
160x112x58mm
Weight :
750 g
Display :
Backlit LCD 8 digits + icons
Accuracy :
Class 1s
Payment mode :
credit and prepayment mode selectable
Material :
ABS blend with fire retardant
Description

Government First Utility Smart Meter Digital Electric Meter Remote Control

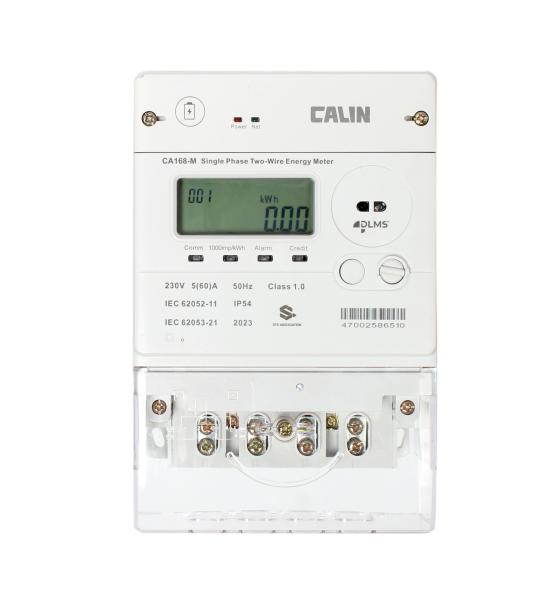

The CA168-M is a high profile newly upgraded new generation of smart electricity meter that combines high precision metrology along with non-wired communication and contractual methodology. It is a single phaes two wires electric Watt-hour meter that works in both prepayment and credit mode. The meter changes the payment mode by the command transmitted from back-end server. Utility can choose from various contractual billing control for consumers.

The CA168-M operates with a plug-in module for data collection and communications . This modular design provides utility free choice of PLC/RF/GPRS/3G and 4G LTE cellular data networks according to local infrastructure conditions, which greatly reduces their operational cost. Upgrade and maintenance will also become economic by replacing the modules only instead of the entire meter.

Main Features

1) Prepayment or credit mode toggle

2) Maximum demand measurement as MD ( Optional)

3) Tamper protection: magnetic immunity, data retention in outage, cover open detection

4) TOU with multi-rate and multi billing cycles

5) IEC 62056-21 and DLMS/COSEM compliant

6) Available for AMR/AMI functionality and remote control from the server side

Key benefits

a) Build in load switch allows for load management on demand and remote

b) Reduce operational and maintenance cost

c) Free to choose suitable communication according to local needs

d) Revenue protection by flexible consumer contractual control

e) Long life time design with easy upgrade features

Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields

80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

Protective Class II

Government First Utility Smart Meter Digital Electric Meter Remote Control
