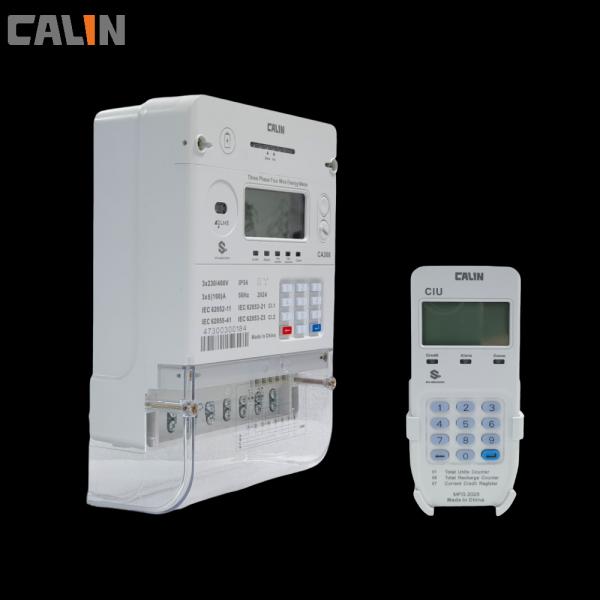

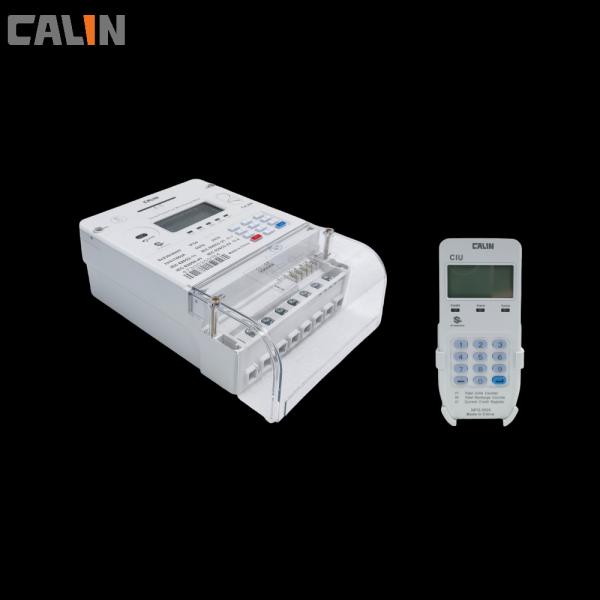

Compact 3 Phase Electric Meter Transparent Cover Prepaid Electricity Meters
Compact 3 Phase Electric Meter Transparent Cover Prepaid Electricity Meters
Specifications
Brand Name :
Calin
Model Number :
CA368-E
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
Compact 3 Phase electric meter
Connection :
direct connection
Com port :
Optical infrared port
Weight :
1.5 kg
Display :
Backlit LCD 6 integers +2 decimals
Accuracy :
Class 1s 2s
Terminal cover :
Short cover
Bore :
9 mm
Description

Compact 3 Phase Electric Meter Transparent Cover Prepaid Electricity Meters

The entire CA368 series' features and functions are condensed and bult into this CA368-E , the economy type that support a diversity of basic functions of entire three phase four wire product range. The CA368-E offers a cost-effective and reliable solution to complex landlords, small utility service providers.

Main functions

■ Unidirectional measurement of active and reactive energy

■Maximum demand recording by preset intervals

■ Multi-rate and usage register on TOU(Time of Use) basis

■Reverse energy measurement (SRE)

■ Multi-level security access to engineering mode

■Large 8 digits' LCD display

User benefits

1) Easy to install and diagonize

2) Full house of metrological value measurement

3) Available with anti-tamper features on request such as reverse connection, earthing, „„phase failure, current / voltage unbalance, etc.

4) Wide range of current allowance 5(100)A

Specifications:

Electrical parameters

Nominal voltage Un

3x 220/230/ 240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

5A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy

Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption

Power consumption in Voltage circuit

<2W <8VA

Power consumption in current circuit

<1VA

Temperature range

Operation meter

25℃ to+70℃

Storage

40℃ to+85℃

Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV

Electro Magnetic Compatibility

Electrostatic discharges

Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields

27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements

Protection Rating

IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm



Compact 3 Phase Electric Meter Transparent Cover Prepaid Electricity Meters
