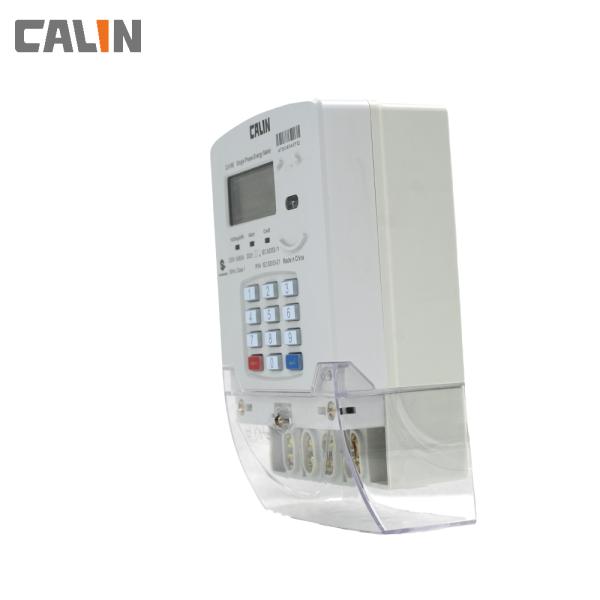

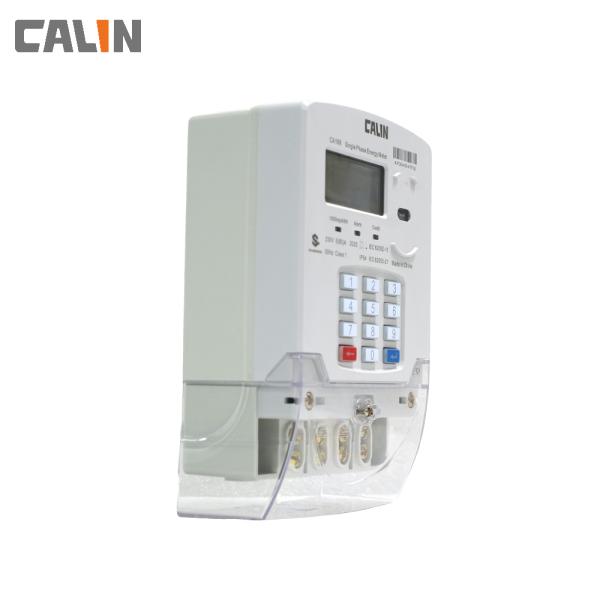

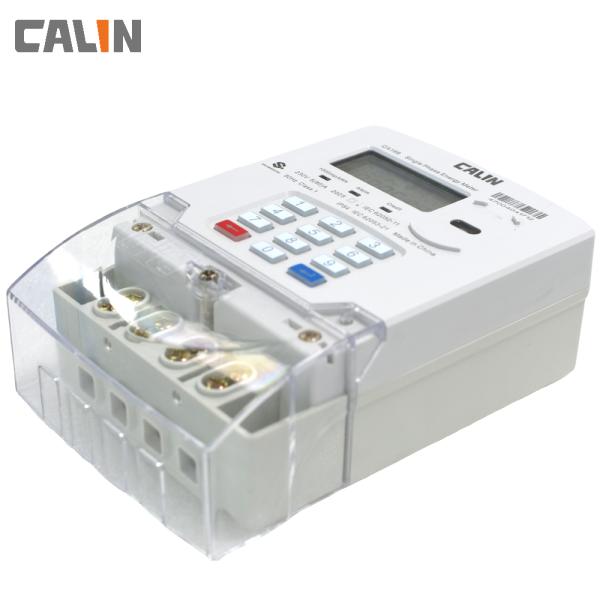

Anti - Tamper Single Phase Electric Meter , MCB connected STS Prepaid Meters
Anti - Tamper Single Phase Electric Meter , MCB connected STS Prepaid Meters
Anti - Tamper Single Phase Electric Meter , MCB connected STS Prepaid Meters
Anti - Tamper Single Phase Electric Meter , MCB connected STS Prepaid Meters
Specifications
Brand Name :
Calin
Model Number :
CA168-E
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
Anti tamper 1 phase low cost electric prepaid meter
Latch relay :
Build-in
Dimensions :
155x120x52mm
Weight :
750 g
wiring :
1 phase two wire LNNL
Accuracy :
Class 1

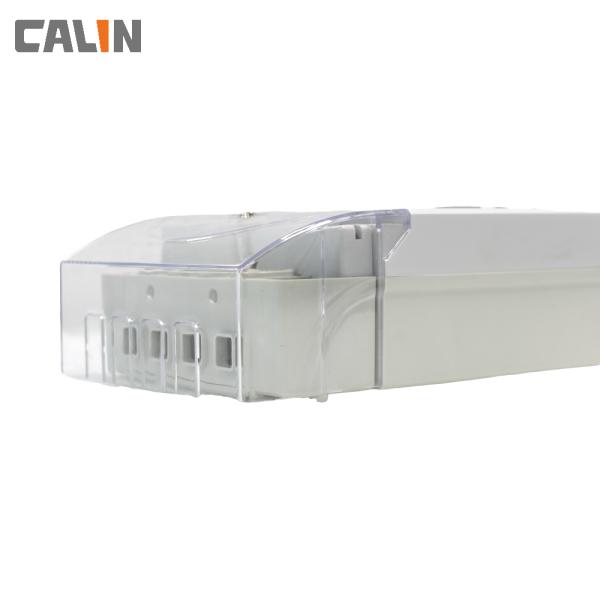

Terminal cover :
Extended flush type transparent
Data port :
Infrared optical
Description

Anti - Tamper Single Phase Electric Meter , MCB connected STS Prepaid Meters

The CA168-E is a reinforced anti-tamper single phase electric meter designed on the basis of CA168 basic version. It is a keypad based compact BS footprint STS prepayment meter and credit dispenser. It is low cost but feature rich, offering a broad range of 5(80)Amp current and 30Vm RF withstand immunity , allowing it to operate in very harsh environments. The meter is applied for low voltage side small residential and light commercial metering applications.

The meter is equiped with a metal backplate for it to be fixed tightly against the mounting surface, making it hard to be tampered with. The polycarbonate fire resistant closure make this meter durable in high heat conditions. The meter is manufactured strictly by ISO9001 standards and STS encryption algorithm. It provides utilities a reliable revenue protection tool.

Major Features

a) Trip and alarm on tamper: cover open, reverse connection, neutral missing, etc.

b) Display latch relay status, tamper, low credit warning

c) Adjustable power limit and emergency credit

d) Bi-directional measurement

e) Display valuable meter information : V, A, P, balance

f) IP 54 rating

Utility benefits

1) Easy to deploy and maintenance

2) Increased tamper protection

3) Low operational cost

4) Optical port offers simple interrogation

5) Broad range of engineering settings

6) 15 year designed lifespan

Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields

80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

Protective Class II
