Load Switch Single Phase Electric Meter , Prepayment Electricity Meters
Load Switch Single Phase Electric Meter , Prepayment Electricity Meters
Specifications
Brand Name :
Calin
Model Number :
CA168-E
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
1 phase low cost electric prepaid meter
Latch relay :
Build-in
Dimensions :
155x120x52mm
Weight :
700 g
Consumption rate :
1600 imp/kWh
Accuracy :
Class 1
Terminal cover :
Flush type transparent
Data port :
Infrared optical
Description

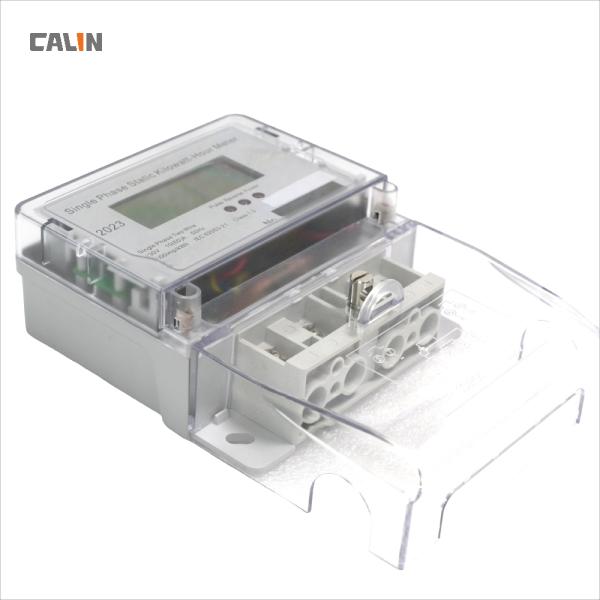

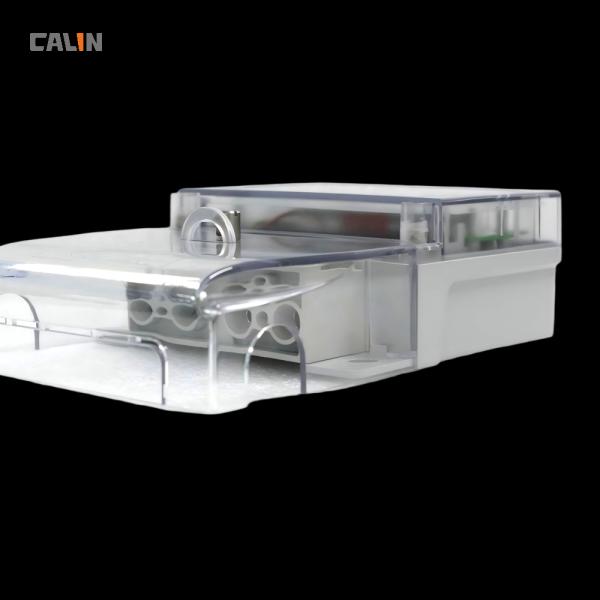

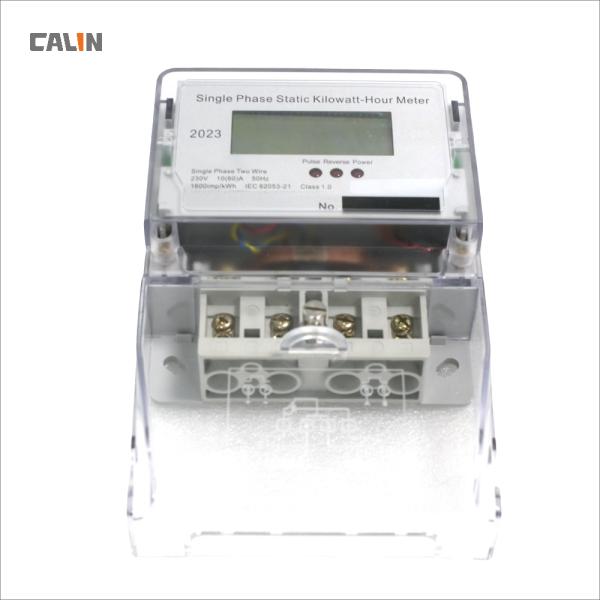

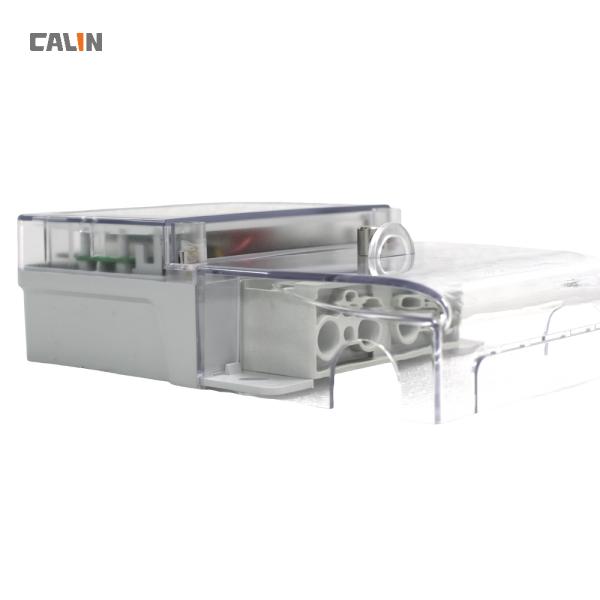

Load Switch Single Phase Electric Meter , Prepayment Electricity Meters

The CA168-E is an economy class design derived from CA168 basic version. It is a single phase two wire keypad based STS prepayment meter and credit dispenser. It is widely used for low income residential metering applications. The meter is built in a British Standard 5685 footprint housing, with a dynamic range of 5(80)Amp current and 30Vm RF withstand immunity to ensure its stability and durability even in very harsh environments.

Low cost as it is , CA168-E is manufactured with polycarbonate fire retardant material and available with rich functions, making the meter an ideal cost-effective revenue protection device in less developed areas. The meter is equiped with a 12-key audio feedback keypad and visual LED alarm. It offers numerous advantages and convenience including onsite information toggle, low credit warning, power threshold setting, debt collection repayment, compact light and easy to handle, etc.

Major Features

1) Display contactor status, tamper, low credit warning

2) Programmable power limit and emergency overdraft

3) Bi-directional measurement

4) Display valuable meter information for consumers to budget their usage

5) Measure and display various power factors: V, A, P, balance and last 5 entered tokens

6) IP 54 rating

Utility benefits

a) Flexible consumer contract plans

b) Multi-rate and billing cycle setting

c) Low operational cost and easy to deploy and maintenance

d) Optical port offers simple interrogation

e) Broad range of engineering settings

f) 15 year designed lifespan

Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields

80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

Protective Class II

Load Switch Single Phase Electric Meter , Prepayment Electricity Meters
