Tamper Proof Wireless Electricity Meter Split Type , Prepayment Electric Meters​

The CA168-S is a Din Rail split type STS compliant prepayment meter complete in polycarbonate housing of IP51 rating and up to 13kV / 6.5kA lightening protection, making it applicable in lightening frequent African continent. Due to its wide range of working current 5(80)A and 30Vm withstand of rugged RF, the meter is able to operate well in severe environments.

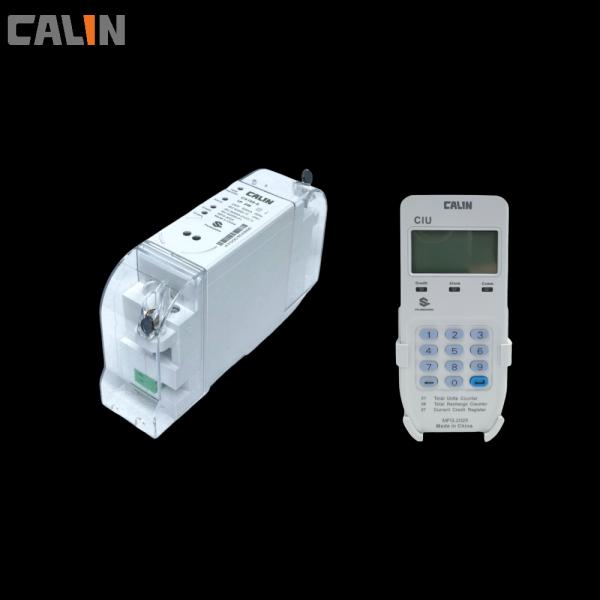

The CA168 -S consists of two parts. A customer interface unit (CIU), and a metering and control unit (MCU). The CIU is a keypad based display, to be installed within consumers homes wherever there is a plug point. A MCU is the main meter, locked away from consumer's home in a kiosk, meter box or a pole-mounted enclosure .The communication between the MCU and CIU is Power Line Carrier (PLC) This wireless feature facilitates the inspection by utility and service providers at any time without visiting consumers' houses and also makes the meter immune to all type of tamper and frauds.

Major Features

a) 20 digits STS compliant encryption

b) ritical metering functionalitys

c) Disconnects on no credit or programmable balance

d) Disconnect on tamper detected

e) Meter provides input setting for power limit, emergency credit, debt collection, surchages, etc

f) Bi-directional measurement for reverse energy( SRE )

g) Anti-fraud features

h) Multi-rate and usage records on Time of Use (TOU) basis

User Benefits

a) Quick and easy installation

b) Reduce operational and inventory cost

c) Slim-line design is space economy and reduce cost on meter enclosures

d) Two way communication with AMR AMI server(on request)

e) Flexible payment control through various element settings

f) Information toggled by Calin's short codes inputs

Specifications:
