Card Type Single Phase Kwh Meter Prepayment Residential Electric Meters
Card Type Single Phase Kwh Meter Prepayment Residential Electric Meters
Specifications
Brand Name :
Calin
Model Number :
CA168-C
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
1 Phase IC Card Electric meter
Application :
Residential
Dimensions :
160x112x58mm
Com port :
Optical infrared
Display :
Backlit LCD
Accuracy :
Class 1s
Encryption :
3DES
Material :
Uv Stable polycarbonate
Description

Card Type Single Phase Kwh Meter Prepayment Residential Electric Meters

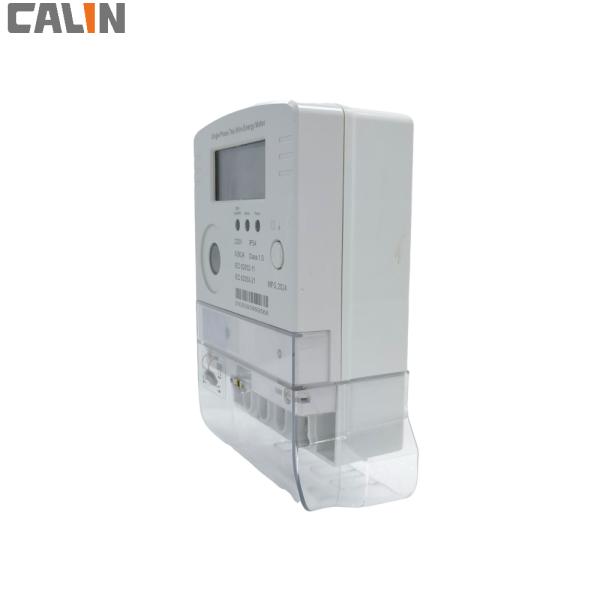

The CA168-C is a single phase two wire card prepayment wat-hour meter. It is used for low voltage residential applications. The meter adopts latest 3DES encryption technology and STS (Standard Transfer Specification) standards with increased security protection for both hardware and software. Thanks to an improved broad range of measurable current 5(80)Amp, and the rugged RF immunity withstand of 30V/m, the meter is able to operate in very harsh environments.

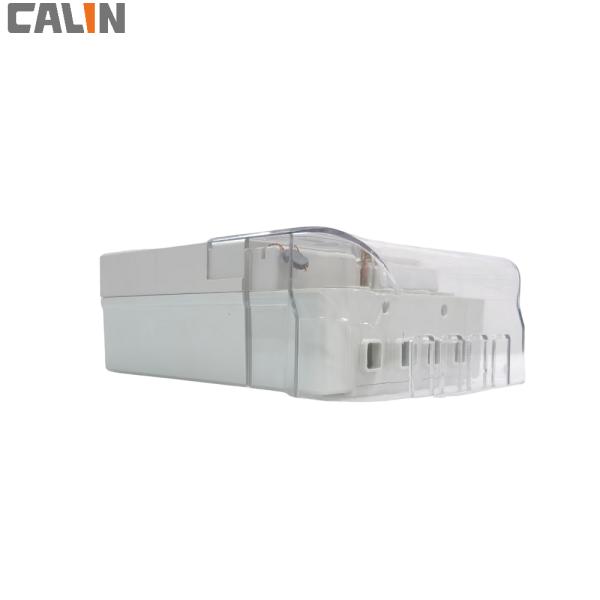

The meter is built in a BS8565 footprint compact housing and maintains IP54 rating protective class, allowing it to be installed in harsh environments. The meter closure is made of polycarbonate fire resistant material and durable for 15 years' lifespan.

Features

1) Bi-directional measurement of significant reverse energy (SRE)

2) Disconnects on overload and credit expires or exhausts

3) Preset power limit and low credit warning

4) Emergency credit overdraft and repayment control

5) Tamper detection: opening cover, reverse connection, power failure and etc.

Key benefits

a) Compact and easy to install

b) Ideal for retrofitting of BS footprint mounting credit meters

c) Wide dynamic range 5(80)A

d) Time of Use (TOU) , multi-tariff, holiday setting

e) Flexible consumer's contract to budget usage limit

f) 15 year designed life

Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields

80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

Protective Class II

Card Type Single Phase Kwh Meter Prepayment Residential Electric MetersCard Type Single Phase Kwh Meter Prepayment Residential Electric Meters
