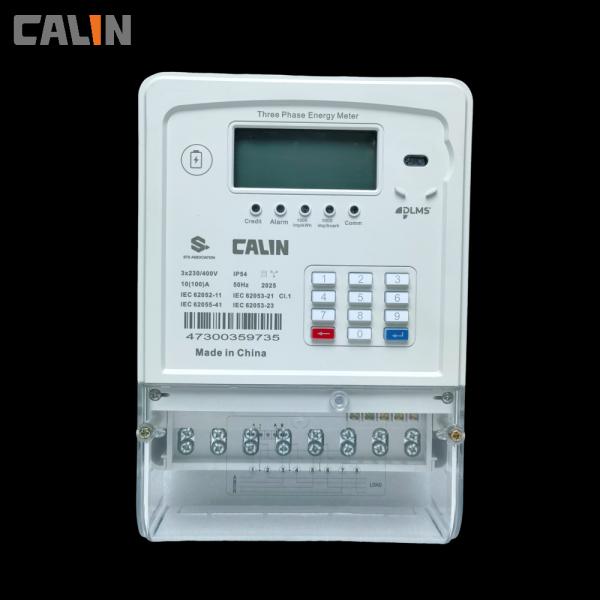

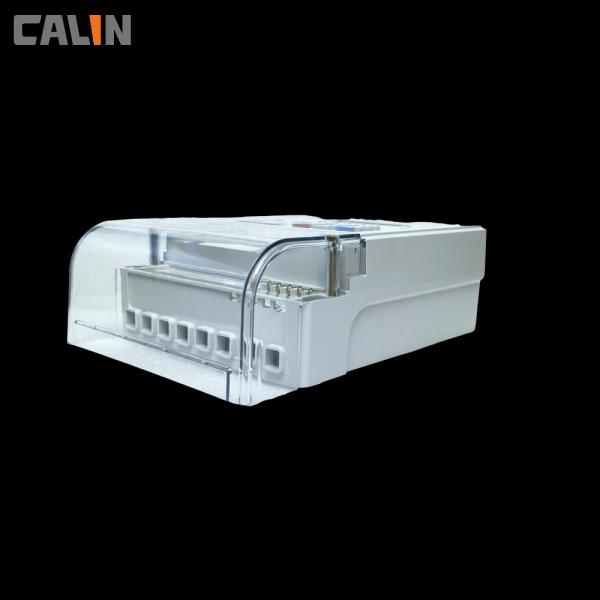

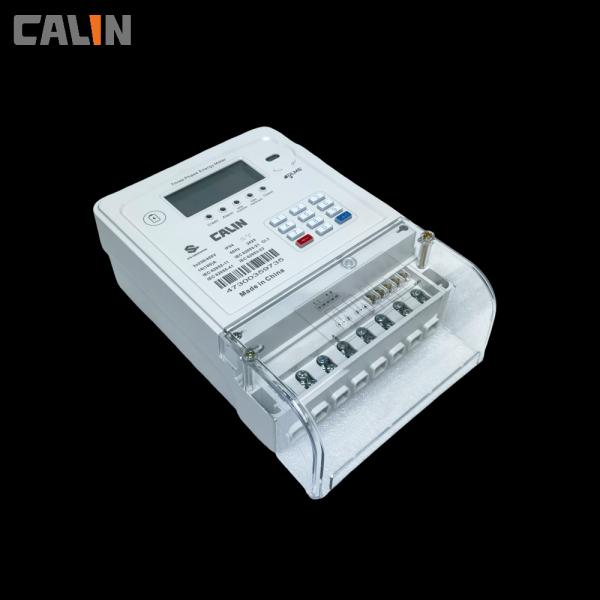

Lightening protection STS Prepaid Meters , Backlit LCD 3 Phase Kwh Meter

The CA368 offers options for extended surge protection for lightening up to 16kV with a build-in 8kA VDR. It is intended for unstable grid voltage envrionment such as African and Central American continent. The meter works in a three phase four wire or three wire (optional) network with 100 Amp per phase, and 30 Vm withstand of RF immunity, allowing it to operate in very severe envrionments. It is a perfect revenue protection device for submetering of residential, light commercial and industrial applications.

The CA368 allows a utility and service provider to make flexible payment control settings such as free basic unit, emergency overdraft credit, low credit waring, repayment rules. This feature enables the service providers to secure their revenue through dynamic contractual control.

Featured functions

a) Surge safe meter

b) 20 digit STS standard compliant encryption

c) IR optical and RS485 com port for data exchange

d) Disconnects on overload and zero credit

e) Programmable power limit

f) Tamper protection against opening cover, reverse connection, black-out

g) Recall 12 months historical usage data and last 5 successfully entered token

h) Maximum demand measurement and load profiling record (optional)

i) Operates in prepayment and credit mode

j) Access to information via Calin's short code

User Benefits

1) Low maitenance cost due to surge safe design

2) Meters can be extended to Split type with UIU

3) Available with choices of PLC/ RF/ LoRa/ GSM wireless communication with AMR AMI server

4) Consumpton record on Time of Use (TOU) basis

5) Multi-rate with programmable billing cycles

6) DLMS/COSEM , IEC62056 protocol compliant interoperability

Specifications:
