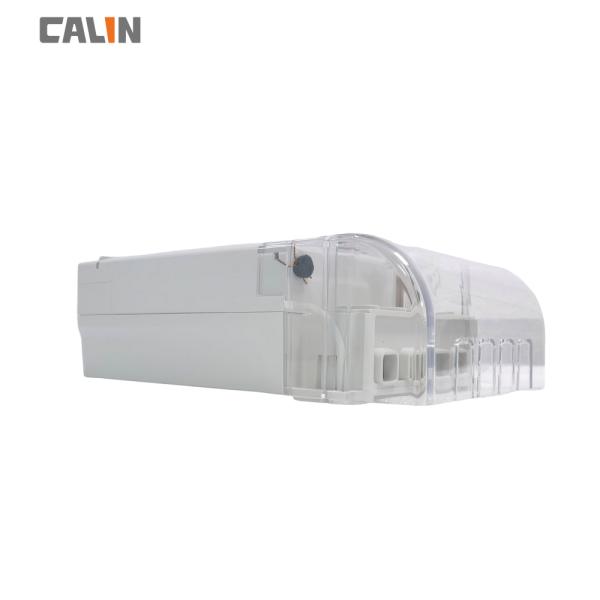

Anti - Fraud Prepaid Power Meters 2 Wire Class Prepayment Electricity Meters
Anti - Fraud Prepaid Power Meters 2 Wire Class Prepayment Electricity Meters
Anti - Fraud Prepaid Power Meters 2 Wire Class Prepayment Electricity Meters
Anti - Fraud Prepaid Power Meters 2 Wire Class Prepayment Electricity Meters
Specifications
Brand Name :
Calin
Model Number :
CA168-I
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
Standalone 2 wire STS prepayment energy meter
Standard :
SPLN D3.009 IEC 62052-11, IEC 62053-21
Dimensions :
205x120x52mm
Weight :
600 g
Accuracy :
Class 1s
Cover type :
Extended flush type with MCB
Cable size :
8mm
cost :
low for entry level
Description

Anti - Fraud Prepaid Power Meters 2 Wire Class Prepayment Electricity Meters

The CA168-I is a standalone 2 wire one phase prepayment meter.The meter is built with multi sensors and triggers. including tamper shutdown protection ,disconnects on overload and no credit .

The credit data is transferred to the meter via a 20-digit numeric token code that is generated by Standard Transfer Specification (STS) encryption protocol. The code is entered into the meter via a keypad. It is finished in a compact and keypad-based BS8565 standard housing and maintains IP54 rating, providing a cost-effective solution of prepayment.

The CA168-I allows for payment control settings. Landlords or service provider can input emergency credit, power limit, daily or monthly limitation, debt collection policy, etc via token code into the meter. Credit dispensing to service providers.and the meter will provide valuable information such as daily usage, monthly usage, demand record to consumers for them to budget their electricity consumption.

Features

1) IEC62056-21 compliant optical communication port

2) Bi-directional measurement for SRE

3) Operates in prepayment and credit mode

4) Prepayment and credit mode

5) Latching relay trips on overload and no credit

6) Adjustable power limit and low credit warning

7) Tamper detection : terminal cover open, reverse connection, outage and etc.

User Benefit

a) Easy to install and ideal for new reticulation as well as retrofitting of credit meters with BS footprints

b) Long life and durable

c) Transparent terminal cover and MCB for extra protection

d) Low cost and effective

Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields

80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

Protective Class II
