Split Type Single Phase Keypad Prepaid Electricity Meters Din Rail Mounted Kwh Meter
Split Type Single Phase Keypad Prepaid Electricity Meters Din Rail Mounted Kwh Meter
Specifications
Brand Name :
Calin
Model Number :
CA168-S
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
1 phase split keypad watt hour meter
Mounting :
BS5685 footprint
Dimensions :
155x120x52mm
Weight :
700 g
Constant :
1000 imp/kWh
Accuracy :
Class 1s
Standard :
IEC/SABS
Connection type :
twin wire cable , Power line carrier , RF
Description

Split Type Single Phase Keypad Prepaid Electricity Meters Din Rail Mounted Kwh Meter

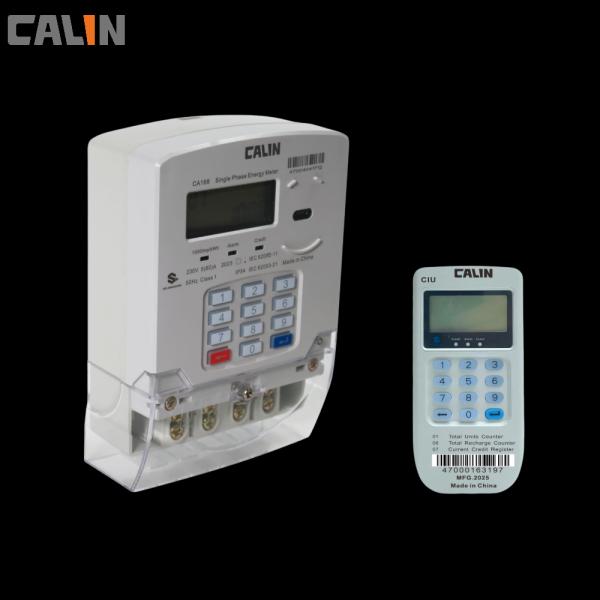

The CA168-S is a splity type compact and keypad-based design prepaid meter. It is in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.The meter is applied for a broad rang of prepayment applications,

The CA168-S is a splity Din Rail mounting designed prepayment meter . It is in an international 35mm Din Rail housing and keypad based with STS encryption.The meter is provided for a broad rang of prepayment applications

As meter manufacturers, we not only provide BS mounting devices, 35mm DIN RAIL is also one of our most popular meter types. Both types connect to a CIU with a galvanically isolated twin wire cable and non-wired configuration as PLC, RF, MBUS are also available on request. This wireless setup will greatly reduce the deployment cost, narrow the payback period, and most importantly prevent potential tamper attempt.

Key Features

1) Split type configuration, easy and low cost installation

2) Programmable power threshhold trip

3) Enhanced tamper detection

4) Reverse energy measurement SRE

5) Programmable power limit

6) Tamper shutdown protection

7) MCU UIU are separated for better tamper protection

8) Information register display toggled by codes

Utility benefits

a) PLC/ RF / GPRS communication (On request)

b) Time of Use (TOU) , multi-rate, tariff control, holiday setting

c) Tamper free with split type setting

d) Long life time design (15yrs)

e) Enhanced revenue protection through flexible payment control

Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields

80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

Protective Class II
