South Africa STS Split Keypad Prepaid R160 Water Meter Electronic Valve Controlled

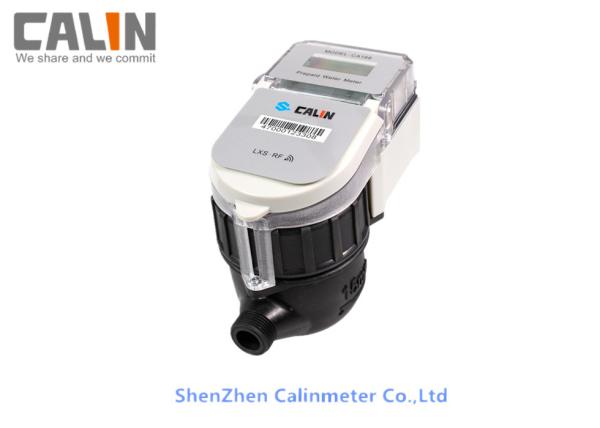

The CA568 is an STS prepayment standard multi-jet dry dial type, prepaid water meter. The meter has compact design, equipped with a low power motor driven valve, and switches off water supply when credit drains or tamper is detected. CA568 series assure you of continuously good metrology and revenue protection at the same time. It has IP68 highest water proof protection, allowing it to work in server flooding environment.

To top-up or recharge the water meter, a consumer just need to purchase 20 digits' credit token from the vendor and punch in the code with the CIU. The CIU is installed in customer's premise, it is kept away from the meter reduce the risk of tamper and fraud proof, customer can know the meter's data credit status and historical usage date from the LCD of CIU. This split type mechanism vastly reduce the chance of tamper.

Features

a) Size variety from DN15, 20 and 25 up to DN100 on request

b) Work with 20 digits' code

c) STS prepayment algorithm

d) Wireless connection

e) Dual display LCD and Counter register

f) IP68 water proof

g) Tamper and zero credit shut down

h) Low credit / battery alarm

i) Data retention in abscense of power

j) Prepared for AMR / AMI functions (optional)

Key benefits

1) Light, compact, easy to handle

2) Instant cash back and good cashflow

3) Support mobile money, online banking and any 3rd party payment

4) Flexible tariff and contractual setting

5) Drive-by reading , AMR reading

6) Control your revenue streams

7) Reduced operational and inventory cost

Specifications:

Maximum Permission Error (MPE)

Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)

Dimensions and diagram
