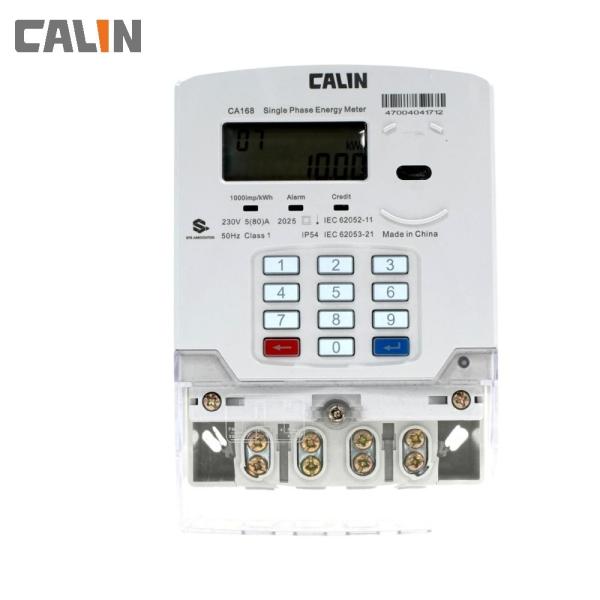

STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication
STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication
Specifications
Brand Name :
Calin
Model Number :
CA168
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
Single phase electric prepaid meter
Latch relay :
Build-in
Dimensions :
155x120x52mm
Weight :
700 g
Consumption rate :
1600 imp/kWh
Accuracy :
Class 1
Data port :
Infrared optical
Split keypad :
Optional
Communication :
PLC / RF
Description

STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication

The CA168 is used for a wide range of applications, due to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features. It is a compact and keypad-based design in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.

Major Features

  1. 20 digit (Standard Transfer Specification) STS encryption
  2. Detection of significant reverse energy (SRE)
  3. IEC62056-21 compliant port allowing for easy data interrogation
  4. Disconnects on overload and no credit
  5. Dual power source working on both prepaid and credit mode
  6. Programmable load limit and low credit warning
  7. Detection and record tamper event such as cover open, reversal, black-out, etc.
  8. Easy access to 12 months historical consumption data and last 5 token entered

Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications
  2. PLC/ RF / GPRS wireless communication with a head-end AMR/AMI server
  3. Time of Use (TOU), multi-tariff, holiday setting.
  4. Advanced load control and disconnection features

Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields

80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

Protective Class II

STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF CommunicationSTS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF CommunicationSTS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF CommunicationSTS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication
