Single Phase Smart Micro Grid System PV Solar Generator For Minigrid Offgrid Rural
Single Phase Smart Micro Grid System PV Solar Generator For Minigrid Offgrid Rural
Single Phase Smart Micro Grid System PV Solar Generator For Minigrid Offgrid Rural
Single Phase Smart Micro Grid System PV Solar Generator For Minigrid Offgrid Rural
Specifications
Brand Name :
Calin
Model Number :
CA168
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
Mini Grid Single Phase Prepaid Kwh Meter
Latch relay :
Build-in
Dimensions :
155x120x52mm
Weight :
700 g
Consumption rate :
1000 imp/kWh
Accuracy :
Class 1
Data port :
Infrared optical
Split keypad :
Optional
Communication :
RF
Description

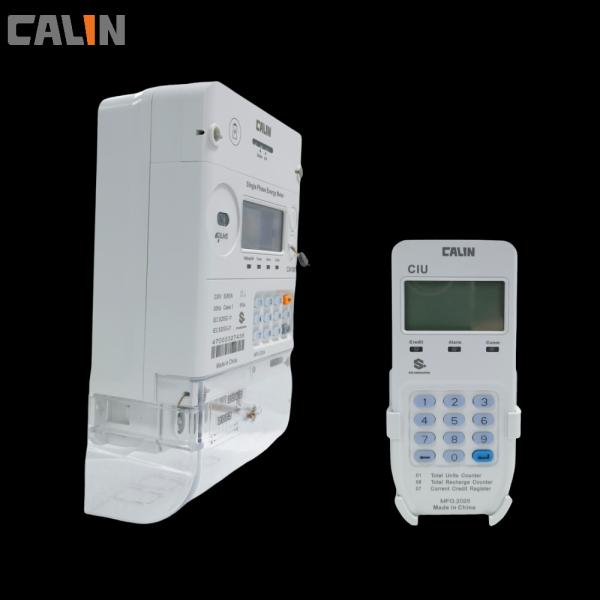

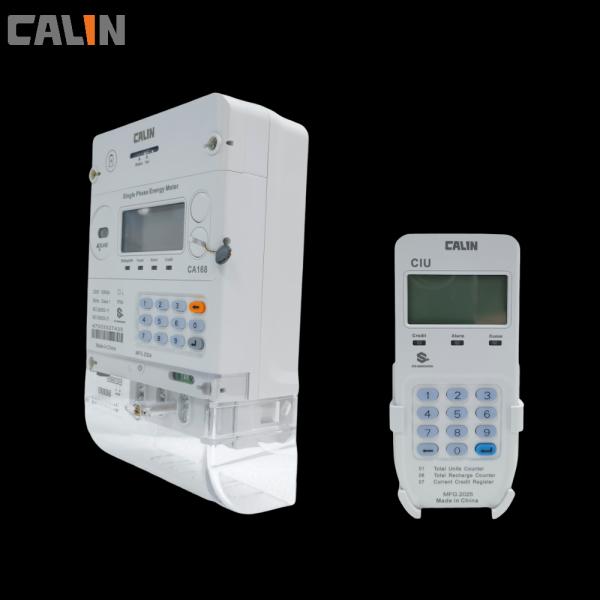

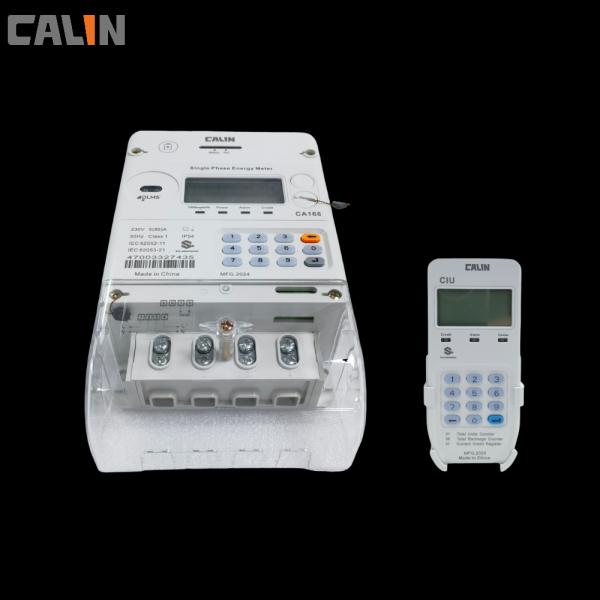

Ｍini Grid PV Solar Generator Single Phase Prepaid Kwh Meter

with Monitoring Remotely for minigrid offgrid rural

Photovoltaic (PV) power generation is growing fastly in the South Asia and Africa, As mini grid to effectively provide electricity for the remote area which the utility grid cannot cover. The CA168 is special designed for PV solar generation mini grid to measurement the power consumption, it can support 5A, 16A, 40A, 60 A current, 230V Nominal voltage, Class 1 accuracy class make sure the good measurement. We have built in a RF module in the meter so that the monitoring and management system can be developed, the meter send the data to the data concentrator by RF, and then the data concentrator upload the data by GPRS. The repeater can extend the communication range for data concentrator.

Single Phase Smart Micro Grid System PV Solar Generator For Minigrid Offgrid Rural

Major Features

  1. 20 digit (Standard Transfer Specification) STS encryption
  2. Detection of significant reverse energy (SRE)
  3. IEC62056-21 compliant port allowing for easy data interrogation
  4. Disconnects on overload and no credit
  5. Dual power source working on both prepaid and credit mode
  6. Programmable load limit and low credit warning
  7. Detection and record tamper event such as cover open, reversal, black-out, etc.
  8. Easy access to 12 months historical consumption data and last 5 token entered

Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications
  2. RF / GPRS wireless communication with a head-end AMR/AMI server
  3. Time of Use (TOU), multi-tariff, holiday setting.
  4. Advanced load control and disconnection features

Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields

80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

Protective Class II

Single Phase Smart Micro Grid System PV Solar Generator For Minigrid Offgrid RuralSingle Phase Smart Micro Grid System PV Solar Generator For Minigrid Offgrid RuralSingle Phase Smart Micro Grid System PV Solar Generator For Minigrid Offgrid Rural

Single Phase Smart Micro Grid System PV Solar Generator For Minigrid Offgrid Rural
