Smart Multi Jet STS Keypad Prepaid Water Meters IP67 Waterproof
Smart Multi Jet STS Keypad Prepaid Water Meters IP67 Waterproof
Smart Multi Jet STS Keypad Prepaid Water Meters IP67 Waterproof
Smart Multi Jet STS Keypad Prepaid Water Meters IP67 Waterproof
Smart Multi Jet STS Keypad Prepaid Water Meters IP67 Waterproof
Smart Multi Jet STS Keypad Prepaid Water Meters IP67 Waterproof
Specifications
Brand Name :
Calin
Model Number :
CA568-K
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, Paypal,T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Name :
Prepaid Water Meters
Type :
Prepaid water meters
Standard :
ISO4064 ClassB
Color :
Red,White,Gray,etc
Keyword :
prepaid ultrasonic water meter
Feature :
Accuracy
Dynamic range :
R250(optional)
Protection class :
IP68
Description

Smart Multi Jet STS Keypad Prepaid Water Meters IP67 Waterproof

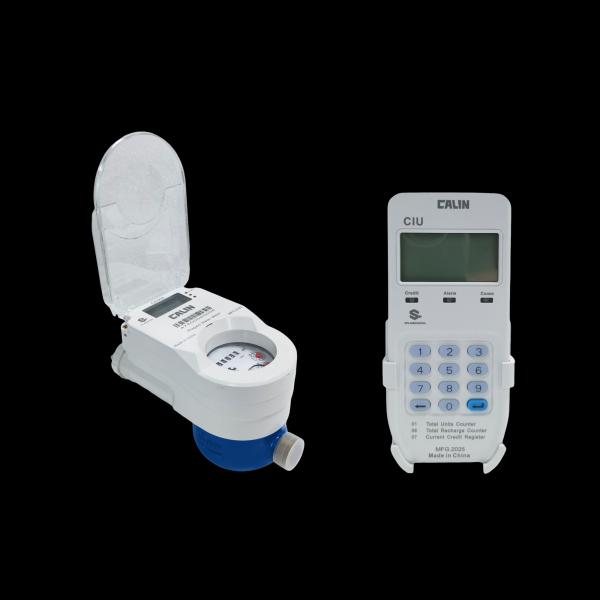

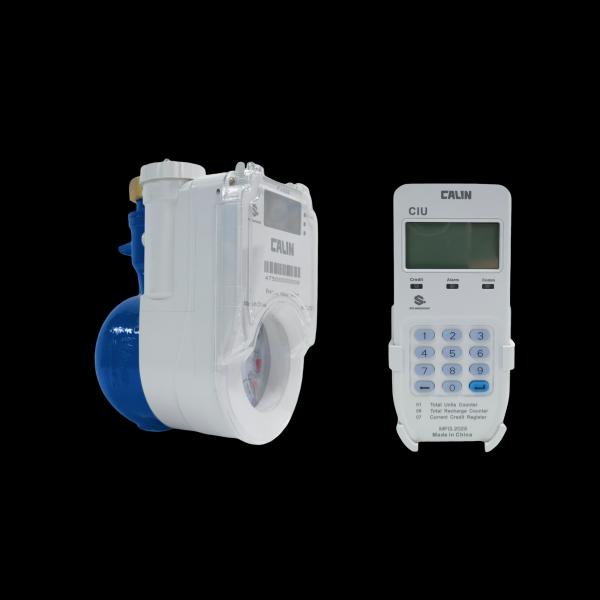

Smart IP67 Multi-jet STS Keypad Prepaid Water Meter CA568-K

The multi-jet CA568-K is an STS (Standard Transfer Specification) compliant, keypad-input type, electronic valve controlled prepayment water meter. It is an ideal domestic water meter for revenue collection and consumer management. The base meter has been supplied and proven by millions of service connections for reliable and cost-effective consumption measurement.

Main Features

1 IP67 waterproof

2 Wet dial / dry dial register construction on request

3 Magnetic field protection

4 Pre-programmable low credit warning

5 Recharge by inputting 20 digits TOKEN with keypad

6 Brass / plastic meter body on request

7 For cold water up to 50℃

8 Flexible tariff and debt collection setting

9 Over 10 years’ data storage in absence of power

Metrological Parameters

DN mm 15 20 25 32 40 50
Size Inch 1/2” 3/4” 1” 1-1/4” 1-1/2” 2”
Q4 Permanent flow m³/h 3.125 5 7.875 12.5 20 31.25
Q3 Overload flow m³/h 2.5 4 6.3 10 16 25

R80

Q3/Q1

 Q2 m³/h 0.05 0.08 0.126 0.2 0.32 0.5
Q1 m³/h 0.031 0.05 0.079 0.125 0.2 0.312

R100

Q3/Q1

 Q2 m³/h 0.04 0.064 0.1 0.16 0.256 0.4
Q1 m³/h 0.025 0.04 0.063 0.1 0.16 0.25

R125

Q3/Q1

 Q2 m³/h 0.032 0.051 0.081 0.128 0.2 0.32
Q1 m³/h 0.02 0.032 0.05 0.08 0.128 0.2
Max. Pressure Bar 16
Pressure loss 0.63 (as complete unit)
Max temperature ℃ 50
Max reading m³ 99999
Max Permissible Error(MPE) %

Q1≦Q≦Q2: MPE = ±5%

Q2≦Q≦Q4: MPE = ±2%

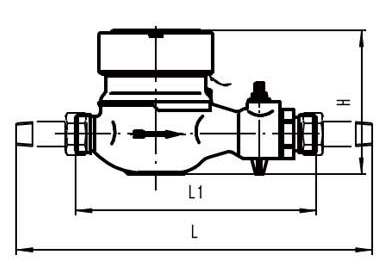

Dimensions

Smart Multi Jet STS Keypad Prepaid Water Meters IP67 Waterproof

Size mm

DN in

15

1/2”

20

3/4”

25

1”

32

1-1/4”

40

1-1/2”

50

2”
Length (L) 165/190 190 225/260 230/260 245/300 280/300
Width (W) 99 99 103 104 124 125
Height (H) 104 106 114 117 147 172

Connecting

Thread

 G3/4B G1B G1-1/4B G1-1/2B G2B G2-1/2B

Flange

ISO7005

Water Vending Process

Smart Multi Jet STS Keypad Prepaid Water Meters IP67 Waterproof
