Nigeria MAP meter asset provider program STS Single Phase Din Rail meter Rural

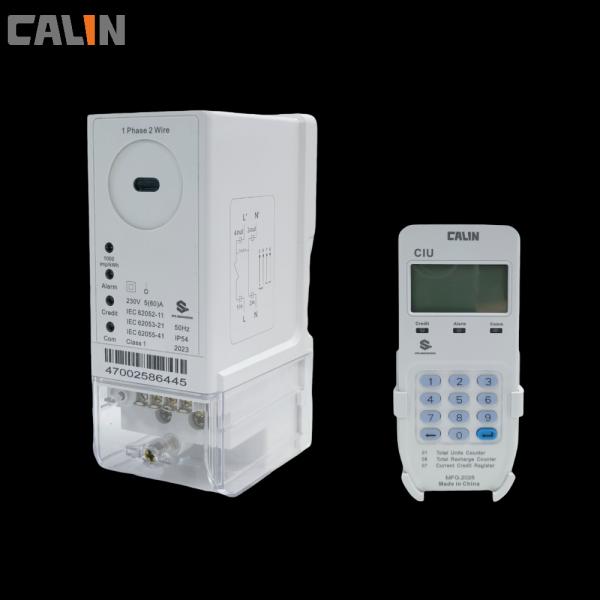

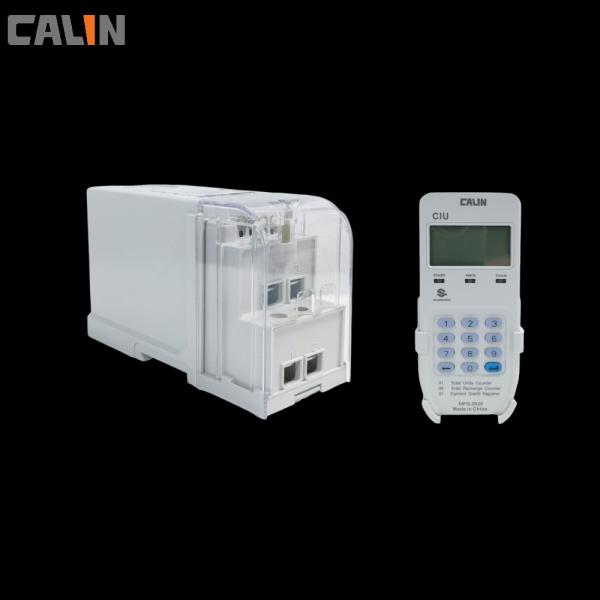

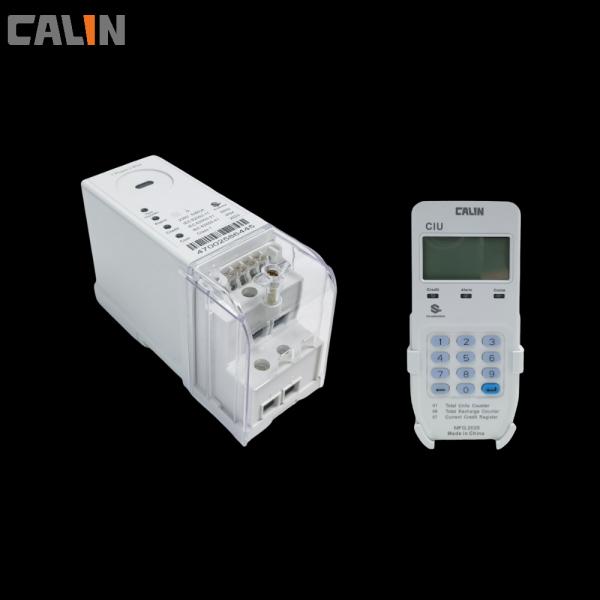

The CA168-S Meter is a split-type compact DIN-Rail mounted Class 1 accuracy single phase electricity meter built in 35mm international standard housing made of poly-carbonate flame retardant materials. Galvanic isolation wire is basic connection between the meter and keypad. Double circuit measurement and relay are also available on request for reinforced tamper prevention.

With an improved dynamic range enabling a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features, CA168 -S works with a user interface unit as UIU, UIU U is a keypad based display to be installed within consumers homes when the main meter, MCU, Metering and Control Unit, is installed away from the consumers' premises. This split setup offers utility users and service providers great convenience and enhanced revenue protection for inspecting and maintenancing meters without entering consumers' houses.

As meter manufacturers, Calin not only provide 35mm DIN RAIL, BS footprint mounting KWH meter, is also one of our most popular products. Both types connect to a CIU with a galvanically isolated communication cable while non-wired solution for PLC, RF, MBUS are also available on request. This wireless setup will greatly reduce the installation and operational cost, narrow down the payback period, and most importantly curb the potential tamper .

Major Features

1. 20 digit (Standard Transfer Specification) STS encryption
2. Up to 80A current with Class 1 accuracy
3. Disconnects on overload and no credit
4. Programmable power limit and low credit warning
5. Adjustable power limit trip
6. Enhanced tamper detection for magnetic field, reverse connection, cover open, etc.
7. Reverse energy measurement SRE
8. Information toggled by codes
9. Tamper trip protection : neutral missing

Other Benefits

a) Compact and slim-line design

b) PLC/ RF communication for MCU & UIU and same with back end AMI server (On request)

c) Time of Use (TOU) , multi-rate, tariff control, holiday setting

d) 15 year designed life

e) Enhanced revenue protection through flexible payment control

Specifications:
