Specifications
Brand Name :
Calin
Model Number :
CA568-N
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
western Union,Paypal, T/T, L/C
Supply Ability :
10,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Product Name :
Smart Remote Reading NB-IOT Water Meter
Type :
Multi-jet
Protection :
IP67
Display :
LCD / counter register
Accuracy :
Class B
communication :
NB-IOT
Size :
DN15-DN25
Description

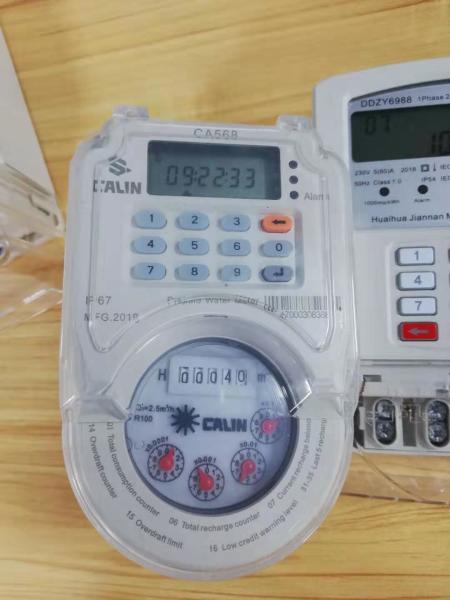

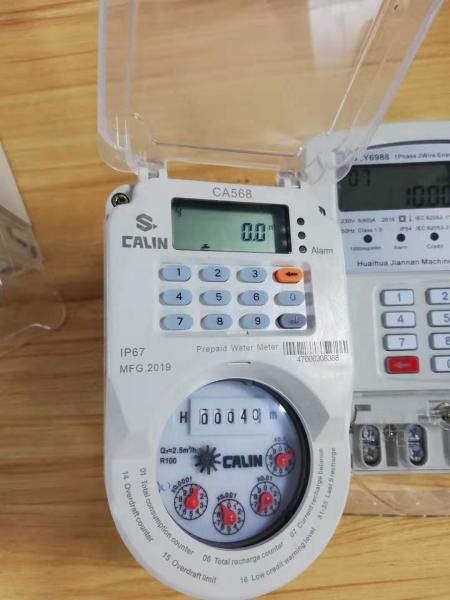

IP67 Smart Remote Reading Prepaid Water Meters NB-IOT Water Meter with AMR system

The CA568-N Smart Remote reading water meter adopts the advance NB-IOT (Internet of Things) communication technology, Through microelectronic control circuits, it converts the pulse signals of traditional mechanical meter into electrical signals, then the metering data is transmitted to background platform through NB-IOT network automatically

Calin prepaid water meter also works with mobile money / payment such as Mpesa, Airtel, Orange. Customers can purchase water credit token at anytime any place 24/7 through USSD or SMS, short codes on mobile phone

Features

  • Diretive 2014/32/EU,OMIL R-49:2013(E)&EN14154 compliant
  • Wet dial / dry dial register construction on request
  • Magnetic field protection
  • Low battery consumption design, up to 8 years' battery life
  • Large capacity data storage
  • Recording neter's running information
  • Including 36 months of time-slicing information for the district metering monitoring
  • Brass / plastic meter body on request
  • Over 10 years' data storage on absence of power
  • Non-return valve preventing back-flow

Specifications:

DN mm 15 20 25 32 40 50
Size Inch 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Q4 permanent flow m³/h 3.125 5 7.875 12.5 20 31.25
Q3 Overload flow m³/h 2.5 4 6.3 10 16 25

R80

Q3/Q1

 Q2 m³/h 0.05 0.08 0.126 0.2 0.32 0.5
Q1 m³/h 0.031 0.05 0.079 0.125 0.2 0.312

R100

Q3/Q1

 Q2 m³/h 0.04 0.064 0.1 0.16 0.256 0.4
Q1 m³/h 0.025 0.04 0.063 0.1 0.16 0.25

R125

Q3/Q1

 Q2 m³/h 0.032 0.051 0.081 0.128 0.2 0.32
Q1 m³/h 0.02 0.032 0.05 0.08 0.128 0.2
Max.Pressure Bar 16
Pressure loss Bar 0.63 (as complete unit)
Max temperature ℃ 50
Max reading m³ 99999

Max Permissible

Error (MPE)

 %

Q1≤Q≤Q2: MPE = ±5%

Q2≤Q≤Q4:MPE = ±2%

Dimension

Size mm

DN in

15

1/2"

20

3/4"

25

1"

32

1-1/4"

40

1-1/2"

50

2"
Length(L) 165/190 190 225/260 230/260 245/300 280/300
Width(W) 99 99 103 104 124 125
Height (H) 104 106 114 117 147 172

Connecting

Thread

 G3/4B G1B G1-1/4B G1-1/2B G2B G2-1/2B

Flange

ISO7005

AMR system Prepaid Water MetersAMR system Prepaid Water MetersAMR system Prepaid Water Meters

Calin is original meter manufaturer and solution provider, we not only produce our own products but also ODM / OEM with other meter manufacturers
