Specifications
Brand Name :
Aogang Optics
Model Number :
Polycarbonate Lens Blanks
Certification :
CE/FDA/ISO9001
Place of Origin :
China
MOQ :
100 pairs
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C, D/A, D/P, MoneyGram,Paypal
Supply Ability :
40,000 pieces per day
Delivery Time :
10~30 days, depend on your quantity
Packaging Details :
1) Standard white envelope 2) color envelop with customer design
INDEX :
1.59
ABBE VALUE :
32
SPECIFIC GRAVITY :
1.20
Coating :
HMC
Lens Color :
Clear
Guarantee years :
5 years
Monomer :
Polycarbonate
Base :
50~1000
Description

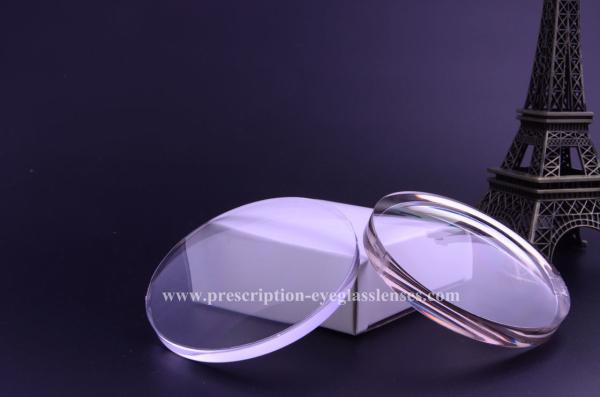

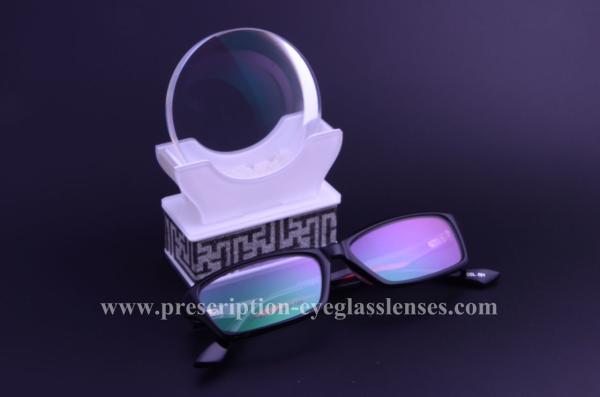

Hard Multi Coating 1.59 AR Coating Semi Finished Polycarbonate Lens Blanks

I. Technical Data:

SF 1.59 Polycarbonate Lens

Material: 1.59 Index Polycarbonate(Ne=1.586, Abbe value=32, Specific gravity=1.20 )

CONVEX SURFACE CONCAVE SURFACE

C.T

(mm)

E.T

(mm)

Dia

(mm)

Nominal

Curve

True Curve Sag(sagitta: 40mm) Sag(sagitta: 50mm) Radius Radius
1.586 1.530
0.50 0.50 0.45 0.17 0.27 1,175.06 180.31 10.7 16.5 75
1.50 1.25 1.13 0.43 0.67 467.10 9.8 15.5
2.50 2.26 2.04 0.77 1.20 259.64 102.81 10.0 14.2
3.50 3.28 2.97 1.11 1.74 178.75 10.1 13.3
4.25 4.55 4.12 1.55 2.42 128.72 10.4 11.8
5.25 5.84 5.28 1.98 3.11 100.40 9.9 9.9
6.00 7.13 6.45 2.42 3.83 82.22 10.1 8.5
7.50 8.43 7.62 2.87 4.54 69.55 10.8 7.0
8.50 9.75 8.82 3.34 5.30 60.12 9.9 4.5


II. Features:

1) Semi Finished Lenses:

Semi-finished lens is the raw blank used to produce the most individualized RX lens according to thepatient's prescription. Different prescription powers request for different semi-finished lens types or base curves.

2) PC Lenses:

AR Coating Ophthalmic Lens Blanks Hard Multi Coating 1.20 Specific Gravity

Impact Resistant: Polycarbonate material was originally made for uses on canopies covering fighter planes and then made its way into space on astronaut visors and space shuttle windshields. Today it is readily available to the public. It impact resistance makes the material extremely suitable for sports, industrial safety goggles, and children's eyewear.


Scratching: The reason for polycarbonate lenses' impact resistance is because of its "softness". Softer materials will flex instead of fragment when met with great force. However, the property allows lenses to be scratched easily. Therefore, every single one of our polycarbonate lenses is multi-coated with hard coating that forms a protective layer around the lenses allowing the lenses to be free from scratches while retaining its impact resistant qualities.


UV Protection: Polycarbonate lenses inherently carries UV protection properties that blocks nearly 100% of the UV rays from entering the back of the retina.

3) Who need the PC lenses:

AR Coating Ophthalmic Lens Blanks Hard Multi Coating 1.20 Specific Gravity

Lighter and thinner than traditional plastic lenses makes Polycarbonate lenses great choice for people with active lifestyles who desire comfort, protection, and performance with a thinner and lighter lens. The High index 1.59 Polycarbonate lens is not only thin and light weight but also very impact resistant making it essential for children’s eyewear and for use as safety lenses.

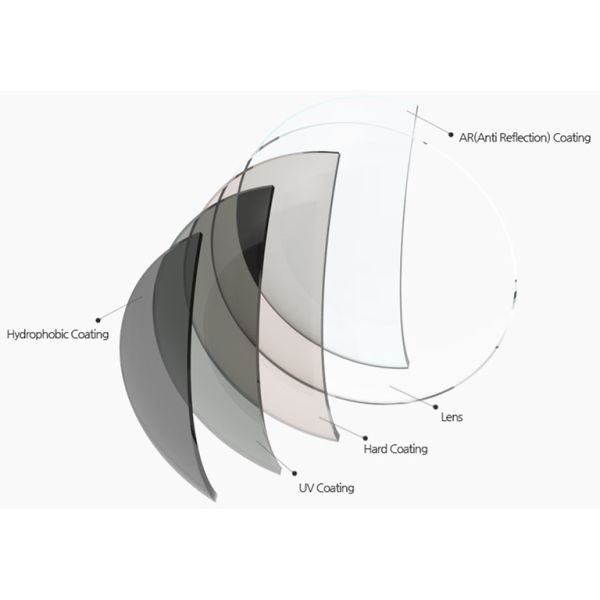

III. Coating Choice:

Hard Coating

AR Coating/

Hard Multi Coated

Super Hydrophobic Coating/

Crazil Coating

AR Coating Ophthalmic Lens Blanks Hard Multi Coating 1.20 Specific Gravity
Enhancing the hardness and resistance on the surface of lenses, prevent lenses from being scraped easily . Coating anti- reflective film can effectly reduce the reflection of light , make the lenses more cclear and transparent .

Making the lens waterproof, antistatic,anti slip and oil resistance,also convenient for clean

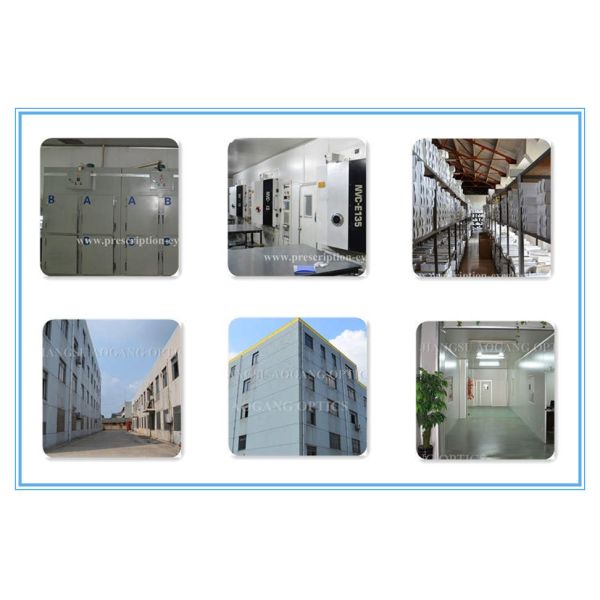

IV. Factory pictures:

AR Coating Ophthalmic Lens Blanks Hard Multi Coating 1.20 Specific Gravity


V. Packing&Shipping:

Envelops 1) standard white envelop

2) color envelop with customer design

weight: 157g size: 9*9*9cm

Outer box standard export paper carton 38cm*48cm*35cm ( 0.064 CBMS )
Include around 500 pairs of finished lenses, 21kgs
Include around 100 pairs of semi finished lenses, 15kgs
Lead time Depend on the quantity
Carrier We can choose for you or offer us your cooperative company
All the numbers provided above are estimated number, the actual numbers need to be measured according to the order you make

VI. Our service:

1. Our Customer service will begin to track the product processing every day until you receive the goods and verify the product quality when you finish the payment.

2. Online via SKYPE, Whatsapp; Also through mail, voice phone, message could contact us at any time!

3. Follow up the case, record the entire process. Solution will be provide with 24 hours.
Meanwhile, the problem complaint will be reported to QC department.
QC will find defect from which department, who is in charge to identify responsibility.

4. Collect and record all the voice from each customer respond, suggestion, requirement.

5. We own the best after-sale service, if any problems happen, our team will do our best to solve for customers.
