1.56 Semi Finished Photochromic Lenses Blanks Anti UV Ray Hard Coating
1.56 Semi Finished Photochromic Lenses Blanks Anti UV Ray Hard Coating
Specifications
Brand Name :
Aogang Optics
Model Number :
Photochromic Lenses
Certification :
CE/FDA/ISO9001
Place of Origin :
China
MOQ :
100 pairs
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C, D/A, D/P, MoneyGram,Paypal
Supply Ability :
40,000 pieces per day
Delivery Time :
10~30 days, depend on your quantity
Packaging Details :
1) Standard white envelope 2) color envelop with customer design
Index :
1.56
Material :
NK55
Diameter :
70/75mm
Abbe value :
36.8
Specific Gravity :
1.27
Transmission :
96%
Coating :
HC
Power range :
Base: 2/4/6/8
Description

Hard Coating Transition 1.56 Photochromic Semi Finished Lens Blanks For Anti-UV Rays

I. Technical Data:

Refractive Index(25ºC): n(d)=1.56; n(e)=1.558

Abbe Value: 36.8

Specific Gravity(25ºC): 1.27

Color: Brown, Grey

Nominal Base Curve True Curve C.T(mm) E.T(mm) Front Side Back Side Dia(mm)
Curve Radius Curve Radius 70
0.00
0.50
2.00 2.25 12.00 12.00 2.25 229.30 3.00 229.30
4.00 4.25 10.00 10.00 4.25 131.40 4.00 131.40
6.00 6.00 10.00 10.00 6.00 88.81 6.00 88.81
8.00 8.00 10.00 10.00 8.00 63.88 8.00 63.88

Refractive Index(25ºC): n(d)=1.56; n(e)=1.558

Abbe Value: 36.8

Specific Gravity(25ºC): 1.27

Color: Grey

Nominal Base Curve True Curve C.T(mm) E.T(mm) Front Side Back Side Dia(mm)
Curve Radius Curve Radius 75
0.50 0.46 11.70 17.84 0.46 1194.38 5.33 103.08
1.50 1.44 10.70 15.57 1.44 381.54 5.33 103.08
2.50 2.47 11.50 15.11 2.47 222.44 5.33 103.08
3.50 3.51 9.50 11.79 3.51 156.53 5.33 103.08
4.50 4.50 10.80 11.79 4.50 122.09 5.33 103.08
5.50 5.51 9.50 9.12 5.51 99.71 5.33 103.08
6.50 6.49 9.70 9.39 6.49 84.66 6.37 86.25
7.50 7.40 9.50 7.73 7.40 74.25 6.37 86.25


II. Semi finished lens:

Minus and plus semi-finished lenses

Lenses with different dioptric powers can be made from one semi-finished lens. The curvature of the front and back surfaces indicates whether the lens will have a plus or minus power.

Semi-finished lens is the raw blank used to produce the most individualized RX lens according to the patient's prescription. Different prescription powers request for different semi-finished lens types or base curves.

Rather than just the cosmetic quality, semi-finished lenses are more about the inner quality, such as precise and stable parameters, especially for the prevailing freeform lens.

 1.56 Semi Finished Photochromic Lenses Blanks Anti UV Ray Hard Coating

III. Photochromic lens:

1) What is the photochromic lens?

When photochromic lenses are exposed to UV light, trillions of photochromic molecules in the lens begin to change structure. This reaction is what causes the lenses to darken.

All lenses that adapt to light use photochromic molecules; the superiority of brand technology lies in our exclusive, patented formulas. Each formula is integrated into the surface of the lens. These molecules constantly and smoothly recalibrate so the optimal amount of light reaches your eyes whether you’re in bright sunlight, under cloud cover or indoors.

1.56 Semi Finished Photochromic Lenses Blanks Anti UV Ray Hard Coating

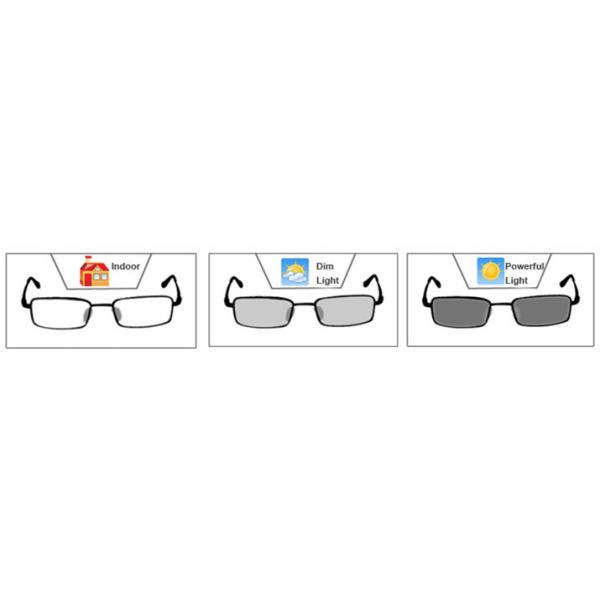

Photochromic lenses, often called or reactolights, darken to a sunglasses tint when exposed to sunlight, or U/V ultraviolet, and return to a clear state when indoors, away from U/V light.

2) How do photochromic lens work?

Tiny molecules of silver halide and chloride are embedded within a photochromic lens which is invisible and clear until exposed to sunlight/UV rays. A chemical process takes place when exposed to sunlight/UV and the molecules effectively move, change shape and absorb the light. This process changes the molecules and they darken to a sunglasses shade/tint.

 1.56 Semi Finished Photochromic Lenses Blanks Anti UV Ray Hard Coating

IV. Hard coating:

1.56 Semi Finished Photochromic Lenses Blanks Anti UV Ray Hard Coating

Hard Coating (HC): To enhance the hardness of the lens to prevent the substrate scratch

V. Packing & Shipping:

Envelope Carton Lenses Pair Size Weight Lead Time
Choice 1 White Envelope Stand Export Carton Finished optical lens: 1 pcs/envelope, 500 pairs/carton 38*48*35 cm 21 KG Depend on the order quantity
Choice 2 Your design with your logo Semi-finished optical lens: 1 pcs/envelope, 100 pairs/carton 15 KG
Carrier We can choose for you or you offer us your cooperative company
Payment terms 30% T/T in advance, the balance before shipment
All the numbers provided above are estimated number, the actual number need to be measured according to the order you make.

VI. Why choose us:

1. Q: Are your company a manufacturer or a trade company?

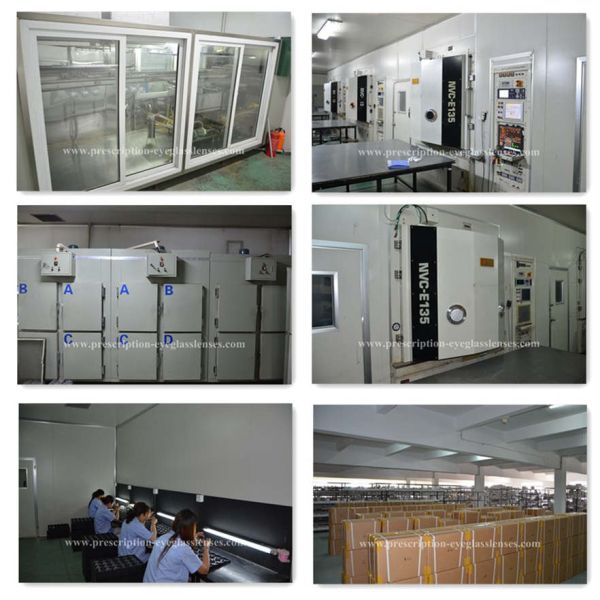

A: We are a manufacturer with many years exporting experience. Our factory is located in Jiangsu province.

2. Q: How can I get sample from you ?
A: Just send us your requirements , then we will send samples accordingly .

3. Q: Can your products be customized?
A: We accept OEM &ODM orders. Actually most of our products are customized. We will try our best to fulfill your requirements about the material, the size, the printing.

4. Q: How many days will samples be finished? How about mass products?
A: Generally, we need 5-7 days to finish the sample production.
As for the mass products, it depends on your order quantity.

5. Q: Do you have stock products to sell?
A: Yes.We have a lot of inventory .

 1.56 Semi Finished Photochromic Lenses Blanks Anti UV Ray Hard Coating
