Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Specifications
Condition :
New
Inlet Diameter :
9.5mm
Outlet Diameter :
1.7mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
3 years
Core Components :
Pressure vessel, Motor
Place of Origin :
China
Voltage :
380v
Power :
280kw
Weight :
22500, 9ton
Warranty :
5 years
Key Selling Points :
High Productivity
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Showroom Location :
Canada, Turkey, Germany, Pakistan, Russia, Uzbekistan, Tajikistan
Name :
aluminum rod Making Machine
Function :
drawing
Application :
aluminum, steel
Usage :
aluminum Rod Breakdown Machine
Raw material :
aluminum
Keywords :
Rod Breakdown Machine
Drawing material :
Aluminum Rod 9.5mm
Local Service Location :
Tajikistan
The product name :
drawing Rod Breakdown Machine
Packaging Details :
wooden box
Supply Ability :
10 Set/Sets per Week
Price :
Negotiation
Brand Name :
UT
MOQ :
1
motor :
220v/380v/415v/customzied
color :
customzied
Description
Product Description
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Inlet Dia. (mm)
Ф9.5
Outlet Dia. (mm) Al
Ф2.2-Ф4.8
Outlet Dia. (mm) Al-alloy
Ф2.8-Ф4.5
Drawing drum Dia. (mm)
Ф450
Max. Die No.
11
Fix speed capstan Dia. (mm)
Ф450
Drawing speed (Max) (m/s)
22
Main motor (KW)
280 (DC)
Drum arrangement Horizontal type
Drawing drum Coated by tungsten
Main Component

aluminum wire rod breakdown drawing machine parameter:


1.Inlet wire diameter 9.5mm(Max.)
2.Outlet wire diameter 1.7-2.8mm
3.Speed 20m/min
4.Type Two axis, two capstans
5.Die number 10 (Buyer self prepare)
6.Die dimension 30mm×15mmT or 25mm×10mmT
7.Slip ratio 17%+10%
8.Control system Traditional analog type
9.Inverer control Dual Inverter control
10.Frame Welded
11.Capstan Tungsten
12.Lubrication Spray
13.Lubrication oil capacity 40L/min
14.Main motor AC 22KW-6
15.Spool motor AC 4KW-4
1.Power source customized

Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
aluminum wire rod breakdown drawing machine Characteristic:


1. Iron cast gearbox body ensures long life with low noise.
2. Horizontal structure, operates easily.
3. Fast die change system keep high efficiency when producing different diameter. And dies quantity decrease a lot at the same
time.
4. The capstan is coated with tungsten carbide power that can support a long life.
5. There is a small inclination between the axis of the drawing capstans and the gearbox transmission axis.
This special design can prevent the wires from overlapping with each other on the drawing capstan surface,
while maintaining a straight path from the first capstan up to the last one.
6. High-precision gear is produced by a German gear grinding machine, with high efficiency, and low noise.
we also supply the second hand wire cable machine:
the 65 PVC/PE extruder machine
the 90 PVC/PE extruder machine
the 13 die copper/aluminum wire drawing machine
the 30 fork type stranding machine
the 54 rigid stranding machine
the 1+1+3 wood drum laying up machine
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Detailed Images
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm

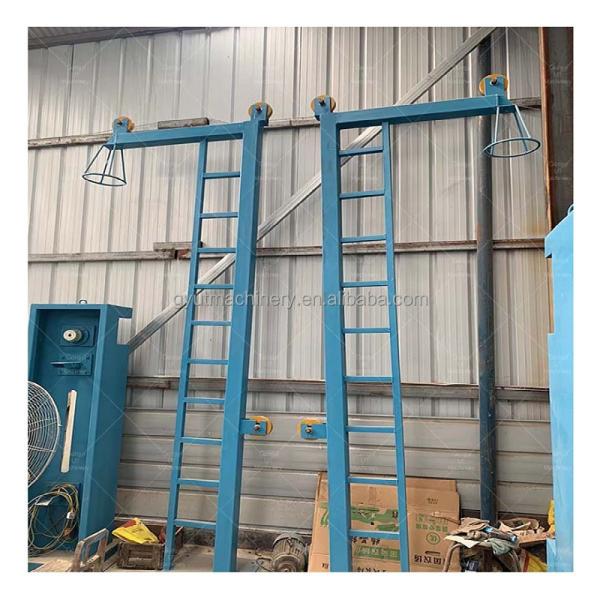

The pay-off machine





The main PVC extruder machine

Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm





The Capstan type haul-off machine




The Take-up machine
Aluminum Al Rod Drawing Machine with and Inlet Diameter 9.5mm Outlet Diameter 1.7mm

Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production
It takes more than 30 business days to customize complex mechanical equipment.

Q2:What is terms of payment? MOQ?
A2: T/T. 1 set.

Q3:How do you gurantee the machine stable operating?
A3:we do Pre-shipment test for every single piece of machine.
we have seperate QC,delivery,sales and after-sales departments.
also strict management process from pre-sales to after-sales.

Q4: How is your After-Sales Service?
A4:1 year warranty with 60+ oversea after-service engineers
(oversea after-service team of high efficient,professional and enough experience
for various Non-standard project)

Q5:How can I install my machine when it arrives?
A5: For simple and semi auto machine,DingLong would send manual instruction and teaching video.
For complex operation , we will send the engineers overseas to help client
installing, operating and training.
