Aluminum Sheet V Grooving Machine Steel Door Making Machinery 4mm Sheet Matel

hot sell V grooving machine, V groover,V cutting machine,sheet emtal V grooing machine

Product features:

the V grooving machine can mak the U type and V type groove on the matel sheet, the cutting

depth can control by the CNC system
the V groover frame structure design is adopted for the machine seat and the beam. The overall

rigidity is

good and the deformation is small.
the machine seat is fixed, and the bevel gear and rack transmission beam are moved, the speed

of the machine can be adjusted, the cutting process is smooth and efficient, and the cutting surface

is smooth and smooth.
the machine is the X-axis digital display, the Y1, Y2 and z-axis CNC machines, with high positioning accuracy and large processing range.
the machine is equipped with side pressure and end press. And all adopt hydraulic pressure, the

pressure is adjustable, the pressure is reliable.

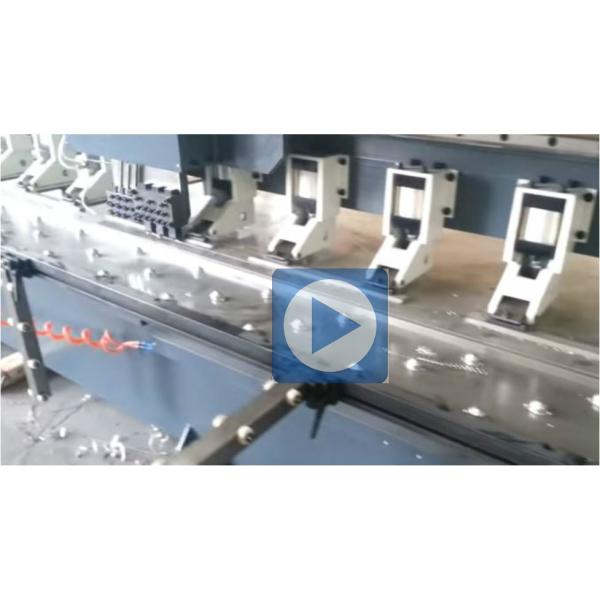

Click the photo to see the vedio of CNC sheet v gooeing machine

Configuration instructions
Control system: HD6K Taiwan
Motor: SEW Germany
Electrics: Germany Te/Omron;
cable: EASY GRATH Germany
Ball screw: TAIWAN HIWIN;
Line guide rail: TAIWAN HIWIN;
Foot Switch: Karcon (South Korea)
cooling system: Beiqier

Main Features

Available to groove not from one side of plate and end not at another side

The minimum distance from the side of plate to the first grooving line is 10~12mm

The minimum size of plate to groove is 100X100mm

Available to groove from one point to another point

Products manufactured by our V Grooving Machine and Bending Machine

Technical Parameter

After Sale Service

Quality Guarantee:1 year

We could provide video instruction and engineers oversea service.

And if there is anything wrong with the machine after the warranty, we could offer you the fittings of the machine with cost price
