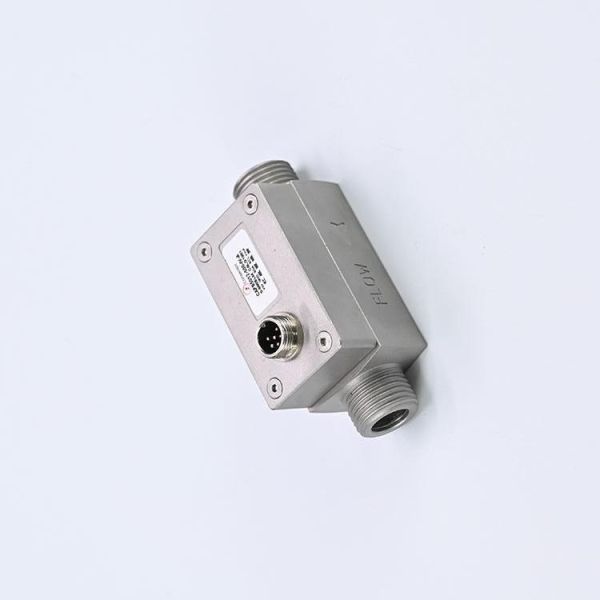

Explosion Proof Gas Mass Flowmeter CAFS5012 Power Supply 8-24VDC 50mA
Explosion Proof Gas Mass Flowmeter CAFS5012 Power Supply 8-24VDC 50mA
Explosion Proof Gas Mass Flowmeter CAFS5012 Power Supply 8-24VDC 50mA
Explosion Proof Gas Mass Flowmeter CAFS5012 Power Supply 8-24VDC 50mA
Specifications
Brand Name :
Consensic
Model Number :
CAFS5012
Certification :
PTC23041812701C-CN01
Place of Origin :
WUXI
MOQ :
Please contact us for details
Price :
Offline conversation or face-to-face discussion
Payment Terms :
L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability :
999
Delivery Time :
3-7 work days
Product :
Flowmeter
Calibration method :
Air, 20°C, 101.325kPa
Functional items :
CAFS5012 Response time 65 (10, 20, 30, 50, 80, 100, 200, etc.) ms optional
precision :
±1.5％F.S
Maximum pressure :
0.8MPa
Explosion proof type :
Ex ia IIC T6 Ga
Description

Explosion Proof Gas Mass Flowmeter CAFS5012 Power Supply 8-24VDC, 50mA

The CAFS5012E explosion-proof gas mass flowmeter utilizes advanced microelectromechanical systems (MEMS) flow sensing technology, making it ideal for measuring and controlling clean, relatively dry gases across various applications. Its distinctive packaging technology accommodates diverse flow measurement ranges, delivering high sensitivity, reliability, and stability—all at a low cost.

Key features include an integrated MEMS flow sensing unit paired with a high-precision digital processing and calibration circuit (MCU). The device employs a Δ - ∑ A/D converter and a logic circuit with internal calibration capabilities, allowing for real-time, accurate sensing signal acquisition and flow signal output. This internal compensation negates the need for external calibration, ensuring precision in flow measurement.

Moreover, the CAFS5012E is equipped with robust protection circuits for the power supply and interface systems, enhancing its operational reliability. Its user-friendly digital output communication simplifies data retrieval, making it accessible for users across a range of industries. The combination of these features positions the CAFS5012E as a versatile and dependable solution for gas flow measurement needs.

Functional items CAFS5012 communication mode RS485 Modbus joggle NTP 1/2”
performance parameter unit remarks
Flow range 0-50/100/200/300/400 slpm customizable
Power Supply Voltage 8~24VDC,50mA VDC selectable
accuracy ±1.5 % FS
response time 65 (10,20,30,50,80,100,200, etc.) ms selectable
maximum pressure 0.8 MPa customizable
communication mode RS485 Modbus
Measure the scale ratio 50:1

Dimensions

Explosion Proof Gas Mass Flowmeter CAFS5012 Power Supply 8-24VDC 50mA

Explosion Proof Gas Mass Flowmeter CAFS5012 Power Supply 8-24VDC 50mA
