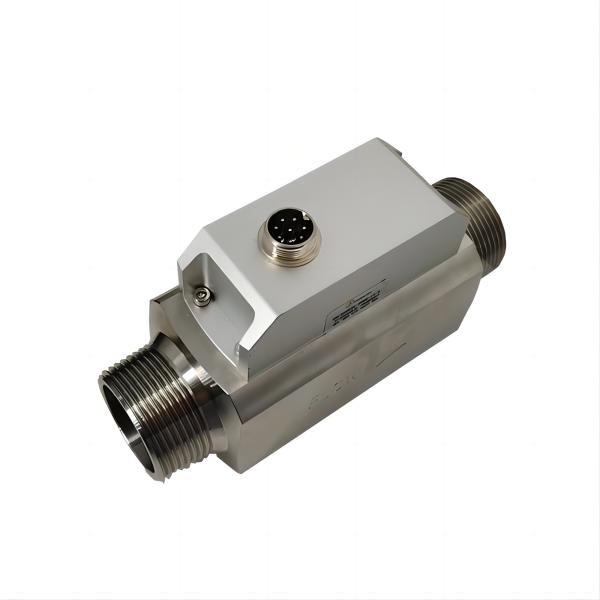

CAFS5032 response time 65 ms selectable communication modeRS 485(MODBUS )
CAFS5032 response time 65 ms selectable communication modeRS 485(MODBUS )
Specifications
Brand Name :
Consensic
Model Number :
CAFS5032
Place of Origin :
WUXI
MOQ :
Please contact us for details
Price :
Offline conversation or face-to-face discussion
Payment Terms :
L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability :
999
Delivery Time :
3-7 work days
Power Supply Voltage :
8~24VDC,50mA VDC selectable
The overall material :
stainless steel
response time :
65 ms
specifications :
0-2000(1000,1200,1600,2000)SLPM
Description

Key Features and Advantages

0-2000(1000,1200,1600,2000)SLPM

  • High Accuracy: The CAFS5032 provides ±1.5% FS accuracy for dependable and precise gas flow measurements in diverse applications.
  • Customizable Response Time: Standard response time of 65 ms with options for customization to match specific measurement requirements.
  • Flexible Power Supply: Operates with a power supply of 8~24VDC, 50mA, offering flexibility for different system configurations.
  • Advanced Communication Capabilities: Equipped with RS485 (MODBUS) communication for seamless integration into existing control systems. An optional 4-20mA analog output is also available for additional data acquisition needs.
  • High Pressure Resistance: Designed to handle up to 0.8 MPa pressure, with customization options for higher pressures to meet specific application requirements.
  • Wide Temperature and Humidity Range: Functions effectively at medium temperatures of -10°C to 65°C and ambient temperatures of -25°C to 85°C, with a working humidity range of <100% RH (no ice or condensation).
  • Durable Stainless Steel Construction: Made from stainless steel, ensuring durability and resistance to harsh environmental conditions.
  • Versatile Output Options: Provides analog output (1-5 VDC) for straightforward integration and 4-20mA output for various measurement and control applications.

Performance Specifications

Feature CAFS5032 response time 65 ms selectable communication modeRS 485(MODBUS )
Power Supply Voltage 8~24VDC, 50mA
Accuracy ±1.5% FS
Response Time 65 ms (Selectable for Customization)
Maximum Pressure 0.8 MPa (Customizable for Higher Pressures)
Communication Mode RS485 (MODBUS), Optional 4-20mA Analog Output
Temperature Range Medium: -10°C to 65°C; Ambient: -25°C to 85°C
Humidity <100% RH (No Ice, No Condensation)
Output Method Analog Output 1-5VDC, Optional 4-20mA
Joggle PT1/4” (Customizable)
Calibration Method Air, 20°C, 101.325 kPa
Material Stainless Steel

CAFS5032 response time 65 ms selectable communication modeRS 485(MODBUS )CAFS5032 response time 65 ms selectable communication modeRS 485(MODBUS )
