Describe

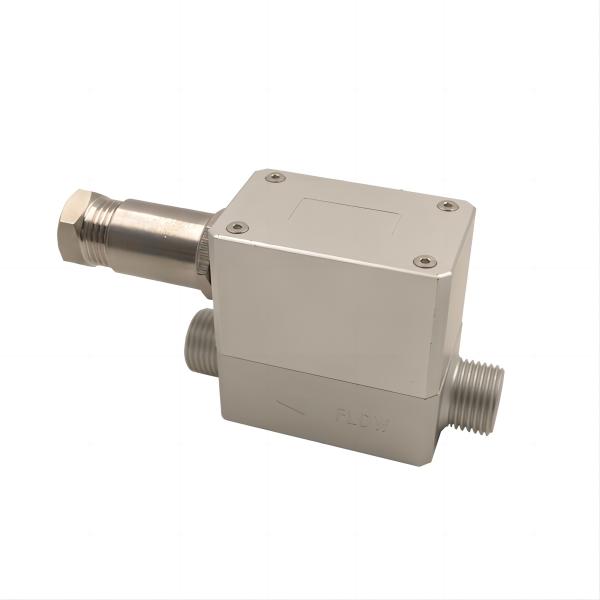

CAFS 5012E Explosion-proof gas mass flowmeter is made of microelectromechanical system (MEMS) flow sensing chip, suitable for various uses of clean, relative, dry gas flow measurement and process control, the unique packaging technology makes the product to meet different ranges of flow measurement, to ensure high sensitivity, high reliability, high Stability and low cost.

CAFS 5012E Is based on MEMS flow sensing unit and high precision digital processing and calibration circuit (MCU). The integrated Δ - Σ A / D converter, the logic circuit with internal calibration function and MCU processor can guarantee the real-time acquisition and the accurate flow signal, without any external calibration compensation to ensure the high-precision flow output; the product adds the power system and interface system; friendly digital output communication mode, the user can easily obtain the corresponding data information and the product application range Very broad.

CAFS5012E

1. Safety and Durability:Intrinsically safe and explosion-proof design.Solid-state sensing core without surface cavities or fragile films, enhancing resistance to blockage and pressure impacts
2. Accuracy and Stability:High accuracy of ±1.5% FS (Full Scale).Excellent long-term stability with minimal zero-drift
3. Output Characteristics:Linear output with no temperature compensation required.Fast response time of 10 ms
4. Flow Range and Weight:Capable of measuring flow rates from 0 to 60 m/s.Weight: 100g
5. Environmental Tolerance:Suitable for relatively humid gas measurements.Resistant to condensate
6. Output Options:Multiple output types available:RS485.I2C.Analog output: 1-5 V
7. Temperature and Humidity Range:Operating temperature: -15°C to 65°C.Storage temperature: -25°C to 85°C.Humidity: 0-100% RH (no condensation)

Differentiators:

• Safety Features: The sensor's intrinsically safe and explosion-proof design makes it suitable for use in hazardous environments, ensuring safety in industrial applications.
• High Precision and Stability: The sensor provides high accuracy (±1.5% FS) and long-term stability with minimal zero-drift, ensuring reliable and consistent measurements over time.
• Quick Response Time: With a fast response time of 10 ms, the sensor is ideal for dynamic applications requiring rapid measurement updates.
• Robust Design: The solid-state sensing core enhances durability by avoiding issues related to surface cavities or fragile films, making it resistant to blockage and pressure impacts.
• Environmental Versatility: Designed to operate in a wide range of temperatures and high humidity environments, including resistance to condensate, making it suitable for various challenging conditions.
• Flexible Output Options: The availability of multiple output types (analog, I2C, RS485) provides flexibility for integration with different systems and applications.
• Compact and Lightweight: Weighing only 100g, the sensor is easy to handle and install, offering convenience without compromising performance.
