CMF9019 Power Supply Voltage 7~24VDC,50mA VDC customizable response time 67 (Default)mscustomizable
CMF9019 Power Supply Voltage 7~24VDC,50mA VDC customizable response time 67 (Default)mscustomizable
Specifications
Brand Name :
Consensic
Model Number :
CMF9019
Certification :
PTC23091116101C-CN01
Place of Origin :
WUXI
MOQ :
Please contact us for details
Price :
Offline conversation or face-to-face discussion
Payment Terms :
L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability :
999
Delivery Time :
3-7 work days
Power Supply Voltage :
7~24VDC,50mA VDC customizable
esponse time :
67 (Default)mscustomizable
stimulate the menstrual flow :
19mm
repetitiveness :
0.25%
Description

Maximum Flow Specifications

Nominal Diameter (mm) Maximum Flow Specification Selection (SLPM)
19 100, 200, 300, 500, 600, 800, 1000

Functional Items

Model: CMF9019

Performance Parameters

Parameter Value Unit Remarks
Nominal Diameter 19 mm
Scale 100:1
Power Supply Voltage 7~24VDC, 50mA VDC Customizable
Accuracy ±1.5 %FS
Repetitiveness 0.25 %
Response Time 67 (Default) ms Customizable
Maximum Pressure 0.5 (customizable max. 0.8) MPa
Communication Mode RS485 (MODBUS)
Output Method Analog outputs of 1-5V, 4-20mA VDC Optional
Display Mode Instantaneous flow: SLPM; cumulative flow: SL
Temperature Medium temperature: -1065; ambient temperature: -2585 °C
Working Humidity <100% RH (no ice, no condensation)
Weight 0.395 kg
Interface R3/4” Customizable
Calibration Conditions Air, 20°C, 101.325kPa

Product Introduction

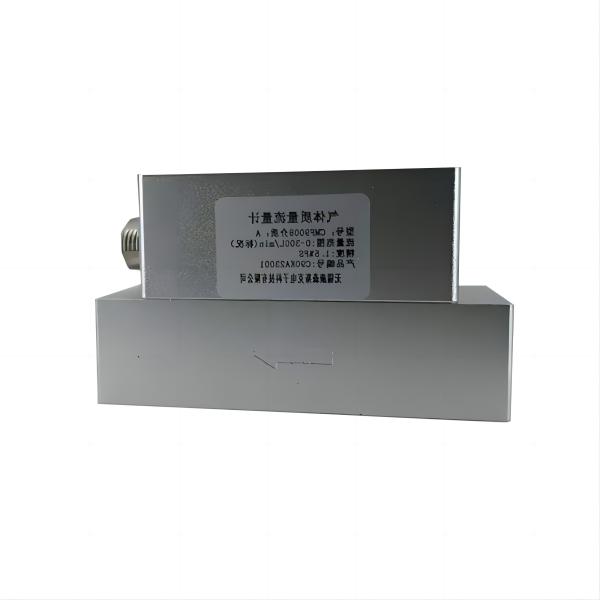

The CMF9000 Series digital development type gas mass flowmeter employs a microelectromechanical system (MEMS) flow sensor chip, making it suitable for various applications involving clean, relatively dry small flow gas measurement and process control. Its unique packaging technology ensures the product can accommodate different flow measurement ranges, providing high sensitivity, high reliability, high stability, and low cost.

The CMF9000 series integrates a MEMS flow sensing unit with a high-precision digital processing and calibration circuit (MCU). This includes an integrated Δ-Σ A/D converter, logic circuit with internal calibration function, MCU processor, and display unit module. Together, these components ensure real-time, effective acquisition of sensing signals, accurate flow signals, and the application of the necessary compensation algorithm. The design of the flowmeter eliminates the need for external calibration compensation, ensuring high-precision flow output. The user-friendly digital output communication mode allows for easy access to comprehensive data information, broadening the product's application range.

Product Features

  • High Accuracy and Sensitivity: ±1.5% F.S. accuracy with high sensitivity.
  • High Reliability and Stability: Ensures consistent performance over time.
  • Fast Response Time: Default 67 ms, customizable to meet specific needs.
  • Wide Flow Range: Suitable for various flow ranges, ensuring versatility.
  • Solid-State Sensing Core: Durable and resistant to environmental factors.
  • Multiple Output Methods: Analog output (1-5V), 4-20mA, and RS485 (MODBUS) for flexible communication.
  • User-Friendly Display: Displays instantaneous flow in SLPM and cumulative flow in SL.
  • Wide Temperature Range: Medium temperature: -10°C to 65°C, ambient temperature: -25°C to 85°C.
  • High Humidity Tolerance: Operates effectively at <100% RH (no ice, no condensation).
  • Lightweight and Customizable Interface: Weighs 0.395 kg with a customizable R3/4” interface.
