Specifications
Place of Origin :
Shandong, China
Brand Name :
WYYW
Model Number :
YTN-100H
Packaging Details :
Pressure Gauge 0-10bar
Each individual foam packaging, 6pcs for a big carton packaging.
Supply Ability :
100000 Piece/Pieces per Month Pressure Gauge 0-10bar
MOQ :
100 pieces
Price :
$14.00/pieces 100-499 pieces
Customized support :
OEM, ODM
Windows :
Glass
Range :
0-1000bar
Producing experience :
10 years
Factory :
yes,we are factory
Feature :
Aseismic
Your idea :
acceptable
Main market :
all over the world
Warranty :
1 Year
Service :
complete after-sales service
Quality :
exceptional quality
Port :
Qingdao,China
Description

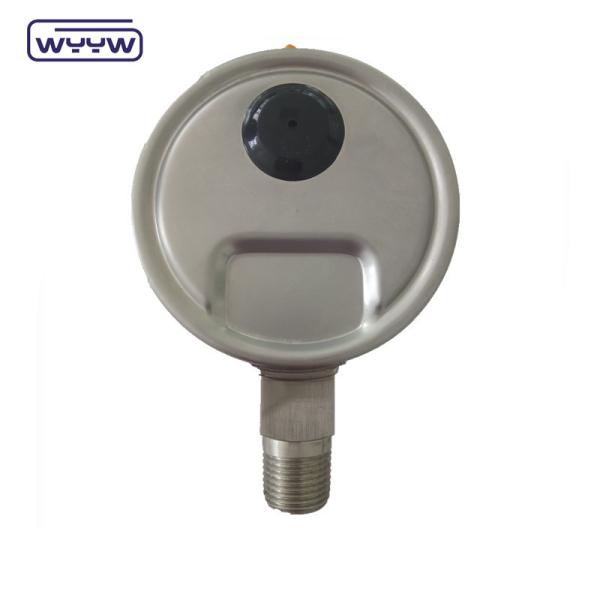

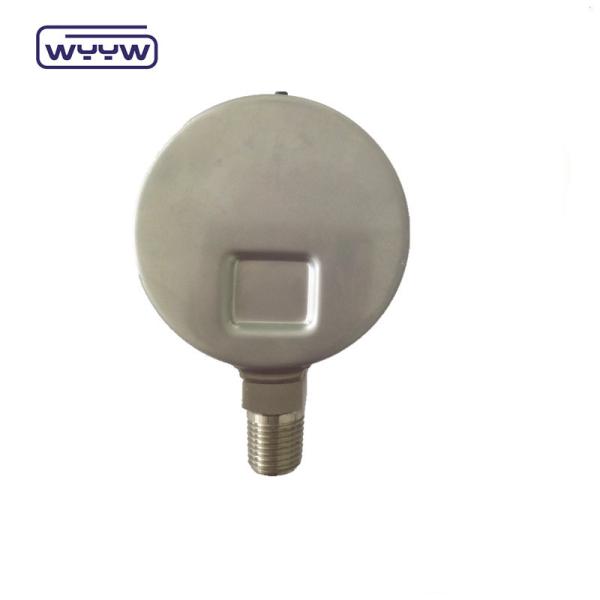

Pressure Gauge 0-10bar

0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty

Product Description

0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty

Name

All stainless steel pressure gauge

Dials Size

60mm (or dail size made as demand)

Case

Black steel case; brass connection

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Gasket under the window

Movement

Stainless steel

Socket

Stainless steel

Bourdon tube

Phosphor Bronze

Dial plate and pointer

Aluminum

Window

Glass; Plastic

Connection sizes

1/8" for 1.5; 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Back

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full scale value
Short time:full scale value

0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty

0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty

0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty

Product Application

1.Outdoor and severe ambient and process conditions

2.Use where harmful vibration and pulsation are present

3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.

Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including:
pressure gauge, gas regulator, cutting torch and welding torch etc.

Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia,Middle East, America and Australia.

Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty

Packaging & Shipping

0-10bar 0-250bar 0-600 Bar Liquid Filled Pressure Gauge 1 Year Warranty

Advantages

1.Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2.Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;

3.Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;

4.Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;

5.Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;

6.OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
