Specifications
Place of Origin :
Shandong, China
Brand Name :
WYYW
Model Number :
YX-60C
Certification :
CE,ISO
Packaging Details :
Seaworthy packing, each one is packed with rubber boot in paper bags, 30 bags in one carton box. or as customer's request.
Supply Ability :
1000000 Unit/Units per Month pressure gauge with back flange
MOQ :
50 units
Price :
$20.00/units 50-99 units
Warranty :
1 year
Customized support :
OEM, ODM
Case size :
60mm
pressure range :
0-250MPa
Accuracy class :
2.5%
connection size :
NPT, BSP(G,BF),BSPT(ZG,PT) 1/4"
Mounting :
bttom, back, panel
Port :
Qingdao
Description
pressure gauge with back flange
Product Description

Dials size 2.5"(63mm),4"(100mm),6"(150mm)
Case SS304, black steel
Pressure range 0-100MPa, other scale unites bar, psi, kgf/cm2,ect. opitional
Movement SS, brass
Socket SS, brass
bourdon tube phosphor bronze, SS
Dial plate and pointer Aluminum
Window Glass, safe glass
Connection size 1/4" for 2", 2.5"case, 1/2" & 3/8" for 4" and 6" case
Connection thread Metric thread, NPT, BSP(G,PF),BSPT(ZG,PT)
Liquid Silicone, glycerine or dry
Mounting Bottom, back and panel
Accuracy 2.5"(63mm)-2.5%; 4"(100mm) and 6"(150mm)-1.6%
Control Upper and lower limits contact control
Working voltage AC220V, DC380V and DC24V opitional
Pressure limitation

Steady: 3/4x full scale value

Fluctuation :2/3x full scale value

Short time: full scale value

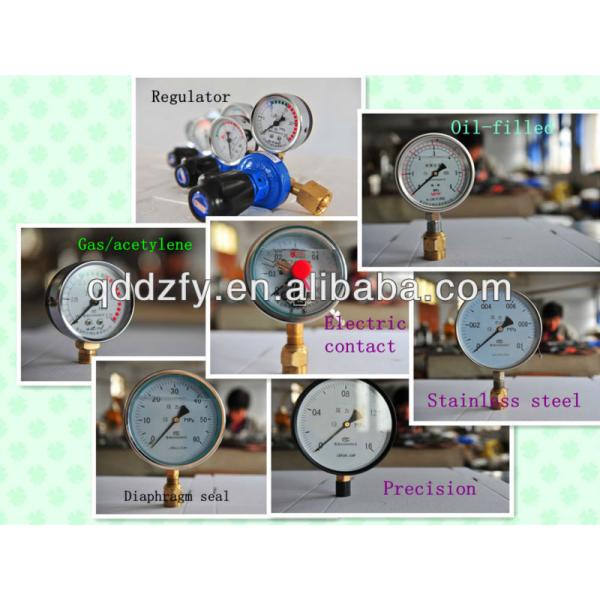

More products60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange
60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange
Production process
60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange
60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange

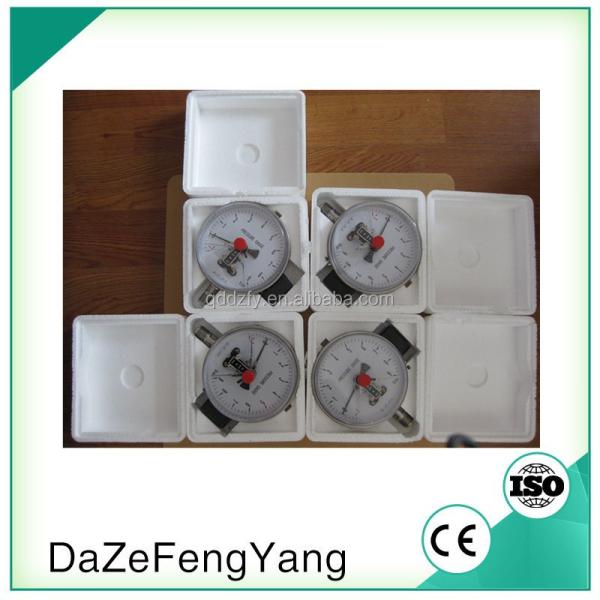

Packaging & Shipping

60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange

Company Information

60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange

Our service

1.Sample:samples are available,we have a good relationship with DHL,Fedex and other express company,we can decrease your cost for samples

2.Customise service:customise logo and OEM service is available for all clients

3.After service:if any questions about our products,we will not hesitate to solve it with our clients.Over more than 10 years exporting experience,we proved to be professional,reliable and competable.

If you are interested in our products, welcome to send inquiry !
