Specifications
Brand Name :
WYYW
Model Number :
YTN-63ZT
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
200 pieces
Price :
$3.00/pieces 200-999 pieces
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Piece/Pieces per Month hydraulic jack with pressure gauge
Packaging Details :
Each gauge packed in one paper box
With outer carton box
or packed accordiong to client's requirements
Customized support :
OEM, ODM, OBM
Material :
stainless steel case, brass internals
Thread :
1/4''PT/NPT/G/M
Pressure range :
as demands
size :
63mm
Description

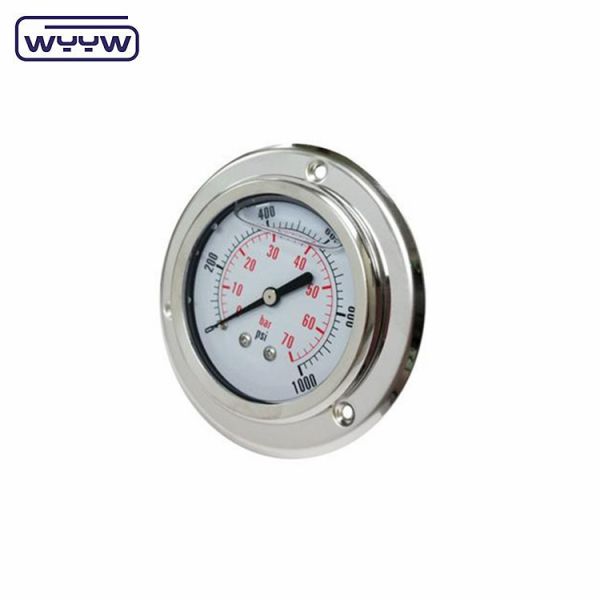

Hydraulic Pressure Gauge Glycerine Or Silicome Filled Manometer

Product Description

Hydraulic Pressure Gauge Flange SS304 Glycerine Or Silicome Filled Manometer

Name

glycerine filled pressure gauge

Dials Size

63mm (or dail size made as demand)

Case

Stainless steel case; brass connection

Pressure

Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring

Gasket under the window

Movement

Brass

Socket

Brass

Bourdon tube

Phosphor Bronze

Dial plate and pointer

Aluminum

Window

Glass; Plastic

Connection sizes

1/8" for 1.5; 1/4 for 2",2.5" case; 1/2 for 4",6"

Connection threads

Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

Mounting

Bottom (Or made as panle, ba)

Accuracy

1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%

Pressure limitation

Steady: 3/4x full scale value
Fluctuation:2/3x full scale value
Short time:full scale value

Hydraulic Pressure Gauge Flange SS304 Glycerine Or Silicome Filled Manometer

Product Application
  1. Conditions in outdoor environments and extreme ambient or process situations.

  2. Applications in environments with significant vibrations and pulsations.

  3. Used in hydraulic machinery, pressure washing systems, oil field equipment, pumps, compressors, and various process systems.

Hydraulic Pressure Gauge Flange SS304 Glycerine Or Silicome Filled Manometer

Company Information

Qingdao DaZeFengYang is a leading manufacturer specializing in pressure gauges and hardware tools, proudly affiliated with the China National Hardware Association.

Our expert team is committed to ensuring that our pressure gauges comply with both GB/T (Chinese Standards) and international quality standards. We have earned ISO9001 and CE certifications for our comprehensive product range, which includes pressure gauges, gas regulators, cutting torches, and welding torches.

With years of experience, we offer a wide array of specialized and standard products at competitive prices, ensuring timely delivery. Our efficient sales and after-sales services have made us a preferred choice for customers globally, especially for distributors and importers from Europe, Southeast Asia, the Middle East, the Americas, and Australia.

We invite you to reach out to us via phone or email, or visit our facility. We look forward to the opportunity to create a successful partnership with you.

Hydraulic Pressure Gauge Flange SS304 Glycerine Or Silicome Filled ManometerHydraulic Pressure Gauge Flange SS304 Glycerine Or Silicome Filled ManometerHydraulic Pressure Gauge Flange SS304 Glycerine Or Silicome Filled Manometer

Advantages
  1. Advanced Equipment and Professional Technology: We are dedicated to providing high-quality gauges using state-of-the-art equipment and professional technology for customers worldwide.

  2. Outstanding After-Sales Support: Our company prioritizes exceptional after-sales service, aiming for long-term trade partnerships.

  3. Thorough Inspection and Superior Quality: All our pressure gauges undergo 100% inspection and are certified with ISO9001 and UL standards.

  4. Timely Delivery: We ensure prompt delivery to consistently meet our customers’ needs.

  5. Convenient Purchasing and Cost Savings: As a skilled manufacturer, we make purchasing easy and offer high-quality products at competitive prices.

  6. OEM Capabilities: Over the years, we have successfully fulfilled numerous OEM orders for well-known companies in the USA and European markets.
