Product Description

APT306 Sewage series adopt imported U.S.A MEAS TE silicone core, ensure the factory the highest accuracy is 0.25%. And the unique 8pores(APT303) or 20 pores(APT304) or “Steel cage” Flanges(APT305) filter design protects the diaphragm from non-clogging and damage. Make it suitable for variety of sewage waste water treatment applications.

Three types of Water Level sensor, which one is more suitable for you?

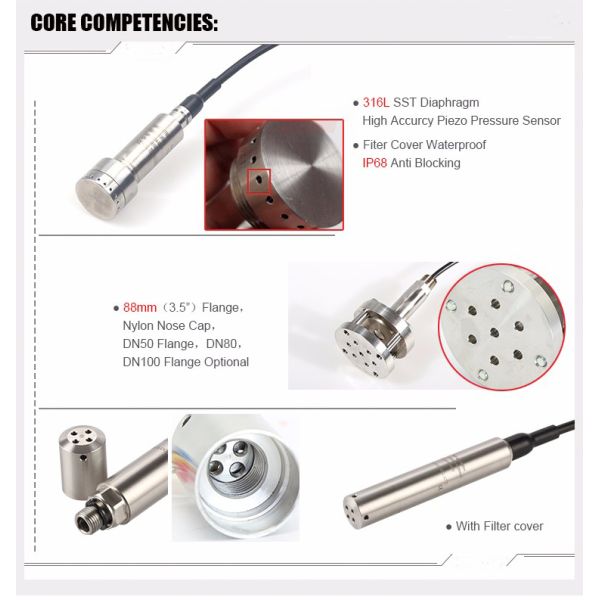

APT304 submersible level sensor, IP68 All welded ,All-dimensional waterproof , anti-blocking design Prevent plugging rate increases more than 80%, Filter <0.3mm impurities, Suitable for general sewage, waste water treatment and city water supply application.

APT305 submersible sewage level sensor, Enhanced the filter diameter,Flush membrane to prevent clogging 20 pores design to ensure sensitivity ,Filter less 0.6mm purity. Suitable for most chemical industry sewage, pharmaceutical industry sewage, waste water treatment etc. application .

APT306double flanged sewage level sensor, Open double Flange design gives full protection and allows sensing to sewage levels no matter how much debris /mud/sand or rags build up. Suitable for sewage, waste water treatment with a lot of impurities.

Now Please contact us, Acmesensor can provide the most cost effective solution for level monitoring for a variety of applications, welcome to send your inquiry to us.

Why Choose Acmesensor Septic Tank Water Level Meter Sensor APT306?

1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response

time; Its service life is 2-3 times of similar products.

2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;

Anti-interference is enhanced by 300%, the stability is over 10 years.

3. The unique design of 4 hole and The unique filter design, it Can effectively filter out impurities,

prevent blockage, prevent shock; Prevent plugging rate increases more than 80%

4. Automatic temperature compensation, -40 ~ 85℃, auto-correction temperature drift.

5. Five layers of seamless and waterproof dustproof connection design, international level IP68;

12 mm waterproof and oil-proof cables, the service life is more than 10 years.

6. Filter cover can be filter <0.6mm impurities Overload above 20bar

7. Professional Explosion-Proof Design

What's the Specification of APT306?

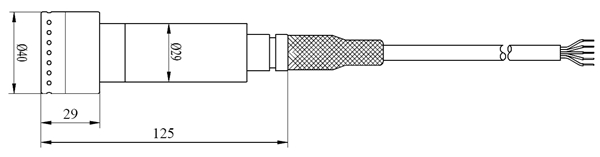

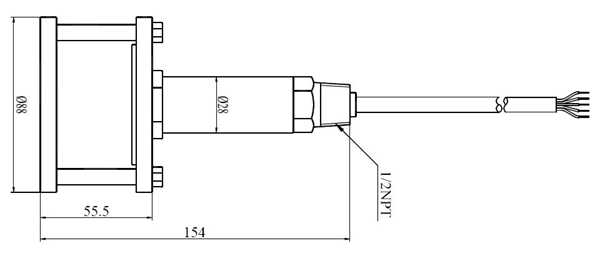

Drawing of water Level Sensor :

What is The Application of APT306?

The APT306 waste water level sensor is widely used in:

Sewage level measuring and control Automatic testing system

Well level measurement and control

Sea water level measurement and control

Industrial course testing and control

Laboratory equipment Oil and Fuel Tank level measuring

Sewer water level and pressure monitor

Saving water to irrigate

Sewage pump station level measurement,

And are highly praised by consumers.

production process

Packaging&Shipping

Inquiry information

In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !

FAQ
