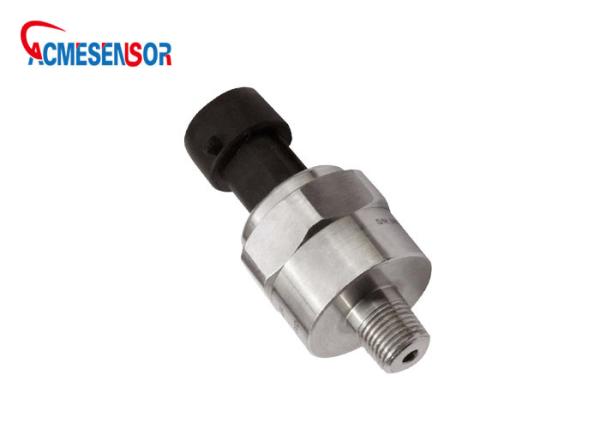

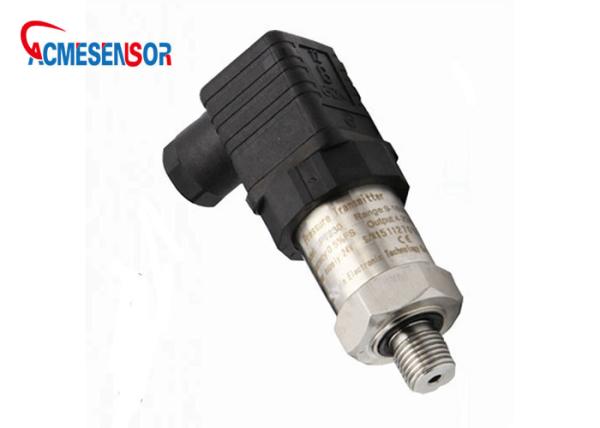

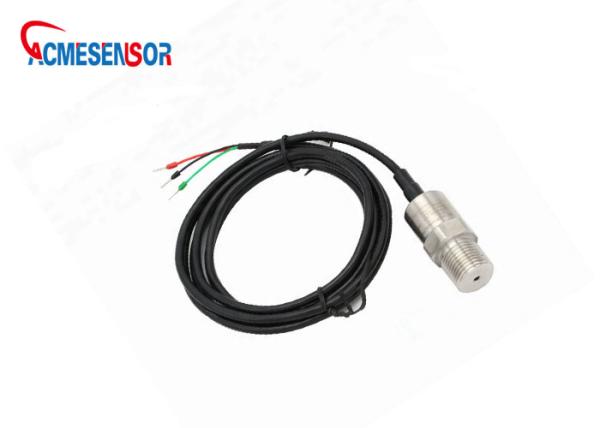

4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors
4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors
4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors
4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors
4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors
4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors
Specifications
Brand Name :
ACMESENSOR
Model Number :
APT215
Certification :
CE
Place of Origin :
China
MOQ :
1 Piece/Pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
Standard export packing for Visco Medium Pressure Measure Transmitter Sensor
Warranty: :
1 year
Customized support: :
OEM, ODM, OBM
Output: :
4-20mA/0-5V/0-10V/0.5-4.5vdc
Accuracy: :
0.25%FS
Power supply: :
12~36VDC
Pressure type: :
Gauge Pressure Absolute Pressure Sealed Pressure
Material: :
Stainless Steel
pressure range: :
0~60MPa
material of housing: :
1Cr18Ni9Ti stainless steel
Overload pressure: :
150%F.S.
Certification: :
CE, RoHS, ISO9001
Description

high quality analog output Ceramic pressure sensors

APT215 Pressure Transmitter is flush diaphragm and process connection by thread and Clamp, which is outside install type level sensor, electronic connect parts by terminal box IP65,

We are specialized in pressure level measurement, pressure transmitter consists mainly of usually pressure sensor, ceamic pressure sensor, high temp. pressure sensor, flush disphragm pressure sensor, smart digital pressure sensor, wirelss pressure sensor etc.

Why you choose and trust us?

♦ Trade Assurance: 75 Transactions, total amount is above $ USD 200,000+ (from Jan to Jun, 2017)

♦ Near 50% buyers found pressure sensor and contact us

Product description of low cost water air pressure sensor price?

Description

The product is produced with military craft and has the characteristics of advanced design perfect technology, strict production superior device, superior management, perfect quality control system It has been sold in more than 40 countries.

Feature

used in refrigeration Industry
±0.5%FS,±1%FS accuracy
high stability , high reliability
ceramic sensor from German
digital calibration
multiple connectors and ports
CE compliant
ROHS compliant

Applications

Process control system
Compressor
Building Water supply
Hydraulic control
Air conditioner
Automotive engine
Automatic detection system
Hydraulic Pressure station
Refrigerator

Product parameters of low cost water air pressure sensor price?

Pressure range 0~200kPa...60MPa
Pressure type gauge (G )
Overload pressure 150%FS
Accuracy 0.5%FS(typ.) ±1.0%F.S (max.)
long-term stability 0.5%FS/year(typ.) 1.0%FS/year(max.)
temp.coefficient of zero ±0.05%FS/°C(typ.) ±0.1%FS/°C(max.)
temp.coefficient of span ±0.05%FS/°C(typ.) ±0.1%FS/°C(max.)
Operating temperature -40°C~100°C
compensate temperature -10°C~80°C
storage temperature range -40°C~100°C
Medium compatibility All corrosive medium compatible with 1Cr18Ni9Ti
Output signal 4~20mA 0.5~4.5V
Power supply 10~30Vdc 5V(ratio)
Load resistance R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for votage output
Insulating resistance >100M Ω@100V
electrical interface packard,DIN43650,plug connection,cable connection,waterproof outlet
pressure interface M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF (customer request)
material of pressure membrane ceramic
material of housing Cr18Ni9Ti stainless steel
response time(10%~90%) ≤10ms
shock/impact 10gRMS,(20~2000)Hz / 100g,11ms
protection IP65
certification CE ,Ex ,ROHS
EMC EMI:EN50081-1/-2, EMS: EN50082-2

Detailed image of low cost water air pressure sensor price?

4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors​

4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors

Dimension of low cost water air pressure sensor price?

4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors

Electrical interface and pressure interface of low cost water air pressure sensor price?

4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors

Process flowchart of low cost water air pressure sensor price?

4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors

4-20mA Industrial Pressure Transmitter 12-36VDC Analog Output Ceramic Pressure Sensors

FAQ

Q:What kind of products do you offer ?

A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are Europe one.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q: How can I get the quotation or send my inquiry to?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Or contact Ms. Anna Loh directly at (email: sales09 at holykell.com, Whatsapp&Viber 86-18473365257) you will get the reply within 12hours.

Q. How to order?

A. In order to send you correct level sensor and best offer, please provide the following information when you are send inquiry, thanks !

1. What is the process medium? Water, milk, wine or others.

2. Working Temperature? -30℃~80℃ or others?

3. Level range: 0-5m or..?

4. Output signal:4-20mA, RS485 or..?
