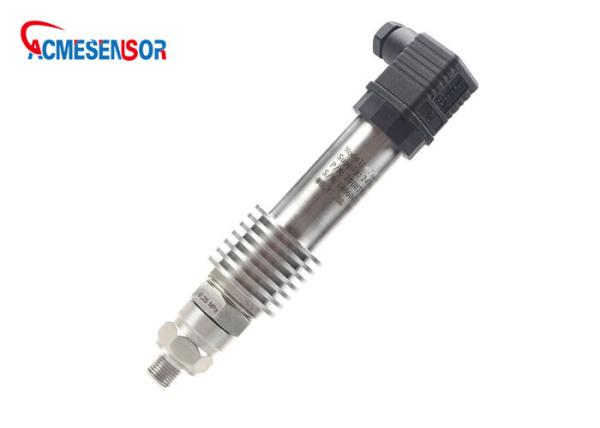

Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer
Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer
Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer
Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer
Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer
Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer
Specifications
Brand Name :
ACMESENSOR
Model Number :
APT211
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
50000 Unit/Units per Month
Usage: :
Resistance Sensor
Output: :
Analog SENSOR, 0-30mV...350mV full output optional acccording to pressure range
Pressure range: :
-1 Bar...0-1...2000 Bar optional
Power supply: :
12-36V DC
Accuracy: :
1%FS;0.5%FS
Temp Compensation: :
0℃-85℃(A type);0℃-100℃(B type)
Working Temp: :
-10℃-125℃(A type);-60℃-200℃
Medium compatible: :
316L stainless steel or 1Cr18Ni9Ti stainless steel
Electronic connection: :
DIN Hirschman Terminal;Directly 2 meters cable
Process connect: :
1/4" male,1/4 NPTmale,1/2" NPT female,G1/2"etc.
Product: :
high temperature oil pressure sensor
Description

OEM APT211 200C high temperature oil pressure sensor/250C high temp pressure sensor for steam pressure measuring

APT211 200C high temperature oil pressure sensor

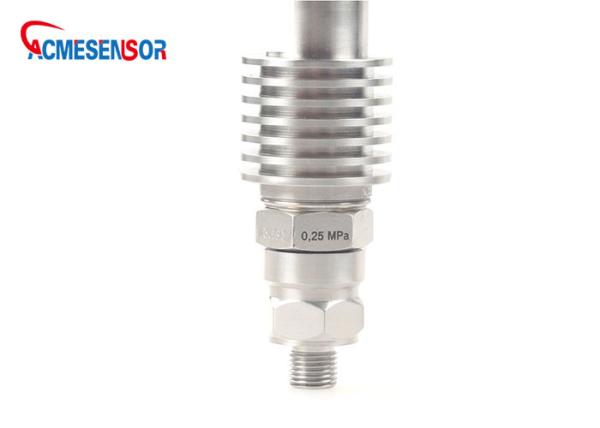

APT211 200C high temperature oil pressure sensor is suited for media temperatures up to 200°C. The pressure acted on diaphragm is transmitted onto imported silicon or sapphire sensing die through the radiating fin. The radiating fin could decrease high media temperature to close to environment temperature by the airs heat dissipation function. This design not only do not need additional cooling devices (e.g. water cooling device), but also able to make full use of performance advantages of Piezo-resistive pressure sensor. The integrated high precise PCB amplifies sensor signal into voltage or current signal related to pressure proportionally. The whole transmitter is full welded construction, IP65 protection and good .

Specification of high temperature oil pressure sensor:

Model:

HPT200-HT 200C high temperature oil pressure sensor

Pressure Range:

-1-0-1 Bar.....2000 Bar Optional

Pressure Type:

Gauge pressure; Absolute pressure; Sealed gauge pressure optional.

Accuracy:

≤ ±1%F.S

≤ ±0.5%F.S

Working Temperature Span:

-10℃-125℃ (A type) OR -60℃~200℃ (B type)

Ambient Temp:

0-85℃ (A type) Or -20℃~100℃ (B type)

Cooling device:

With cooling device for max 125 ℃; With cooling device for max 200 ℃ optional

Storage Temp:

-20℃~125℃

Temperature Compensation:

0-85 degree C (A type) OR 0℃~100℃(B type)

Medium compatible:

Compatible with 316L Stainless Steel or 1Cr18Ni9Ti stainless steel

Electronic Wire:

2 Wires

3/4 Wires

Output:

4~20mA

0~10mA

0~5V

1~5V

0.5~4.5V Ratiometric

Power Supply:

12~36 V DC

12~36V DC

12~36 V DC

12~36 V DC

5Vdc

Electronic connection:

DIN Hirschman Terminal Box4 Pins and IP65.

Directly 2 meters cable IP67 optional.

Cable length:

2 meters or By customized.

Pressure process connection:

G1/4’’male, 1/4’‘NPT male, 1/2’‘NPT Female

G1/2’’; G3/4’’male optional. (by customized)

Water Proof:

IP65

Response time:

≤1ms

Details of high temperature oil pressure sensor:

Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer

Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer

Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer

Steam Industrial Pressure Transmitter 200C 250C High Temperature Oil Pressure Transducer

APT211 pressure sensor order guide:

In order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
1.What is your medium ? Water, or other.
2.Working temperature ? -30°C~85°C or other
3.Pressure range ? 0~100bar or other
4.Output signal? 4-20mA, 0-5V or other
5.Electronic connection ? Fixed Cable, Sealed screw by order
