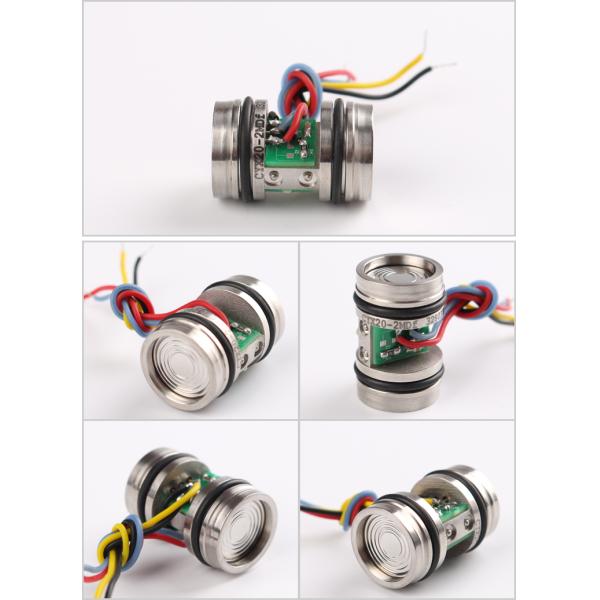

316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
Specifications
Place of Origin :
China
Brand Name :
OEM
Supply Ability :
20,000 pcs per month
Packaging Details :
Stardard Export Packing By carton
MOQ :
Negotiable
Price :
Negotiable
Product Name :
low cost differential pressure sensor
Pressure range :
0~35Kpa,10kPa~3.5MPa by customized
Constant current power supply :
1.5mA (input voltage max 10Vdc) mv output
Pressure sensor core Diameter :
OEM China Differential Pressure Senso
Housing marterial :
Full stainless steel 316L
Working temp. range :
-40℃~+125℃
Pressure type :
Gauge, absolute, sealed gauge available
ic connection :
Kovar Pin
High static pressure :
20MPa
Warranty :
18 Months
Port :
shenzhen/shanghai
Certification :
CE;ISO
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Description

316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer


Specification of low cost differential pressure sensor

Specification

Min

Typ

Max

FS output (mV)

--

100

--

Zero output (mV)

±1

±2

Non Linearity (%FS)

0.2

0.5

Hysteresis (%FS)

0.05

0.1

Repeatability (%FS)

0.05

0.1

Zero Temperature drift (%FS@25℃)

10kPa

±0.4

±1.6

≥35kPa

±0.15

±0.8

Temperature Error Sensitivity (%FS @25℃)

10kPa

±0.4

±1.6

≥35kPa

±0.2

±0.7

Long-term stability (%FS/Year)

0.1

Compensated temp. range(℃)

0~50;-10~80

Working temp. range(℃)

-40~+125

Storage temp. range(℃)

-40~+125

Lifetime(25℃)(times)

>1×108Pressure cycle(FS)



Features of low cost differential pressure sensor

• Pressure range ,0~35Kpa,10kPa~3.5MPa
• Constant current power supply
• Isolated construction, enable to measure various media
• OEM differential pressure sensor
• Full stainless steel 316L
• High static pressure 20MPa
• Long-term stability 0.1%FS/year
• 18 Months warranty

Application of low cost differential pressure sensor

• Industrial process control
• Gas, liquid pressure measure
• Pressure checking meter
• Pressure calibrator
• Differential pressure measure
• Ventura and eddy-current flow meter

316L Industrial 1.5mA 3.5MPa Differential Pressure Transducer
