30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
Specifications
Place of Origin :
China
Brand Name :
OEM
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE;ISO
Packaging Details :
Stardard Export Packing By carton
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20,000 pcs per month
Product name :
piezoresistive ceramic pressure sensor
Power supply :
0-30VDC(Max)
Size mm( diameter * height) :
18*6.35
Operating temperature :
-40~135℃
Full range output :
>=2mV/V
Temperature Drift (Zero & Sensitivity) :
≤±0.03%FS/℃
Overall accuracy linear + hysteresis :
≤±0.3%FS
Repeatability :
≤±0.2%FS
Burst Pressure :
>=1.15~3times range(by range)
Insulation resistance :
>=2KV
Description

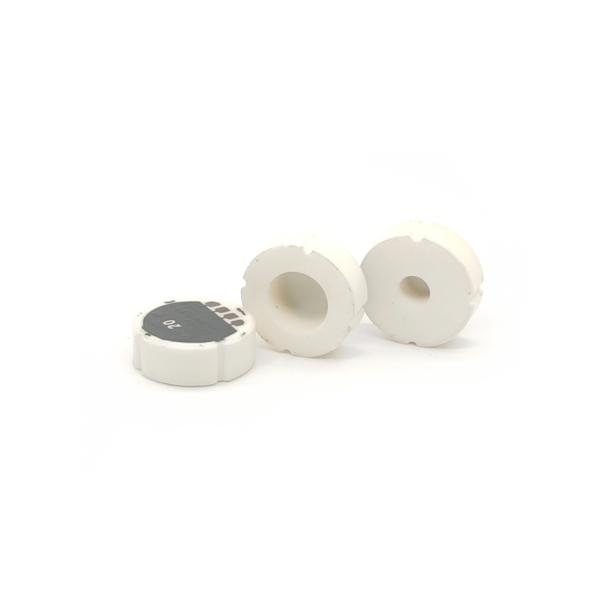

30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
Product Description
Ceramics Pressure Sensor adopt the special ceramics material, and the special process to finish the production of piezoresistive type pressure sensor. Ceramics material possess strong corrosion preventive,and good for the heat emission,nice springiness and insulativity,more and more clients use the ceramics pressure sensor instead of siliconizing and other pressure sensor,traditional and mechanical pressure component.
Application
◆ automatic, water pump, diesel,engine,compressor,refrigerating machine,Jet Coder,air-condition, water heater,eurostar;
◆valve,transmit,chemicals,industrial automation,petrochemical engineering,clinical gauge and many other field.
Manufacture Specification
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
Pressure range
2-600bar (choose the range you want)

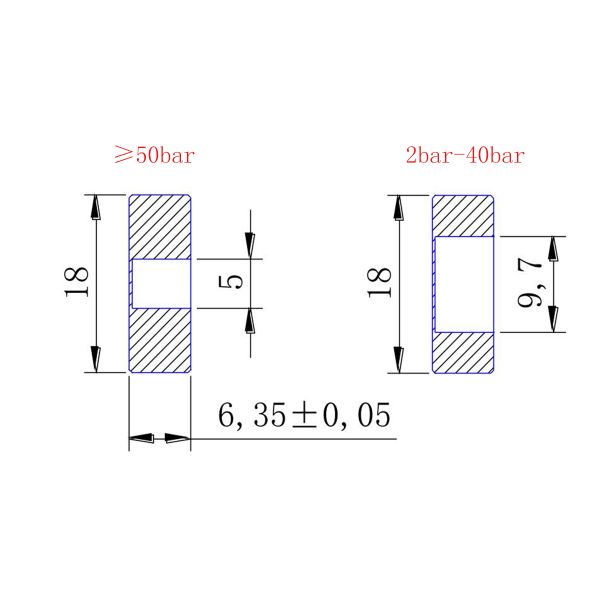

Size mm( diameter × height)
φ18×6.35
Supply Voltage
0-30VDC, maximum(30V)
Bridge Road Impedance
11KΩ±30%
Full range output
≥2 mV/V
Operating temperature
-40~135℃
Storage temperature
-40~+150℃
Temperature drift (zero & sensitivity)
≤±0.03% FS/℃
Overall accuracy linear + hysteresis
≤±0.3% FS
Repeatability
≤±0.2% FS
Zero offset
≤±0.2 mV/V

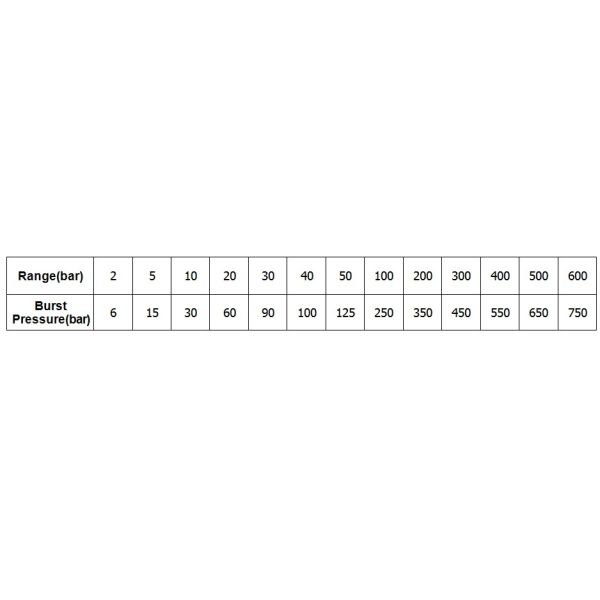

Burst Pressure
≥1.15~3 times range (by range)
Insulation resistance
≥2 KV
Zero-point long-term stability @20°C
±0.25% FS
Relative humidity
0 – 99%
Direct contact with liquid materials
96% Al2O3
Sensor weight
≤7g( Non-customized products)
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
30VDC Piezoresistive Ceramic Pressure Transducer For Water Pump
