Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Specifications
Place of Origin :
China
Brand Name :
OEM
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE;ISO
Packaging Details :
Stardard Export Packing By carton
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20,000 pcs per month
Pressure range :
0~0.2bar...20Mpa
Output :
4~20mA, 1~5V,0~5V,1~10V,0~10V
Accuracy :
0.5% F.S, 0.25% F.S
Power supply :
12VDC~36 VDC
Pressure Chip :
ceramic
overpressure :
150%FS
pressure interface :
M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF (customer request)
certification :
CE ,Ex ,ROHS
title :
Low cost Water Air Pressure Sensor price
Selling Units :
Single item
Single package size  :
25X25X15 cm
Single gross weight :
1.000 kg
Package Type :
Standard packaging
Description

Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor

Production Description

ceramic pressure sensor is made of high quality stainless steel structure, the core and the pressure sensor chips are imported from Germany, the use of digital calibration and compensation technology, and passed the safety certification and CE certification.Widely used in compressor, automobile, air conditioning and other field pressure measurement.

Pressure range

0~0.2bar...20Mpa(OEM)

Pressure type

Gauge (G)

Accuracy

±0.25%FSm, ±0.5%FS

Material

Membrane: ceramic Housing:Stainless steel

Output signal

4~20mA 1-5V 0-5V 0.5~4.5V 0~10V 100mv R

Power supply

10~30Vdc 5V

Electrical connection

Packard , DINS43650 , plug connection, cable connection, water proof outlet

Pressure connector

G1/2, G1/4, NPT1/4, 7/16-20UNF, M20×1.5

Stability

Typical ±0.1%FS Max. ±0.2%FS

Overload pressure

1.5 times of rated pressure (1.5X)

Operating temperature range

-30~80℃

protection

IP65 (OEM)

certification

CE ,Ex ,ROHS

In order to meet different connection requirements, it has designed four electrical connections.They are DIN43650(Hirschmann),cable connection,plug connection,packard.

Feature

1. Overpressure Protection
Withstand the instantaneous impact of 2.5 times the range pressure

2. Wide Voltage Supply
10-30V wide voltage range optional

3. German Imported Chip
High stability, effective suppression of power frequency interference

4. 3mm Lead Pressure Hole
Protect the internal sensor precision work for a long time

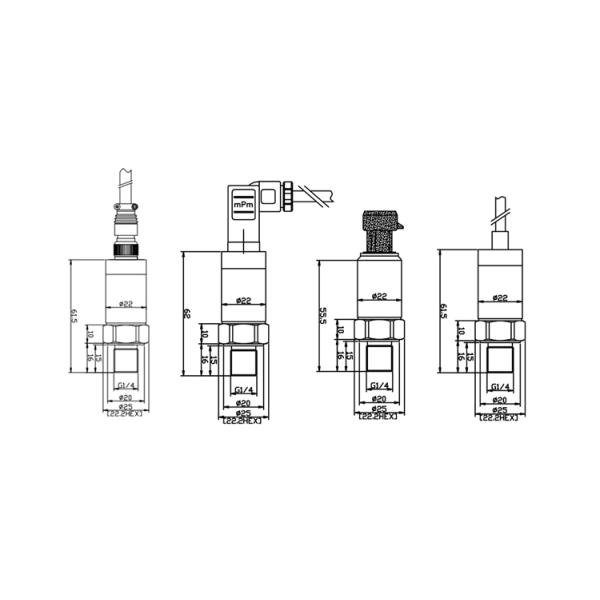

Dimensions

Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor

Application:

Process control system Air compressor Refrigeration system

CNGSNG gas station Natural gas HVAC

Oil pumpdrilling Food industry Chemical industry

Hydraulic control system pump&water system Others

Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
