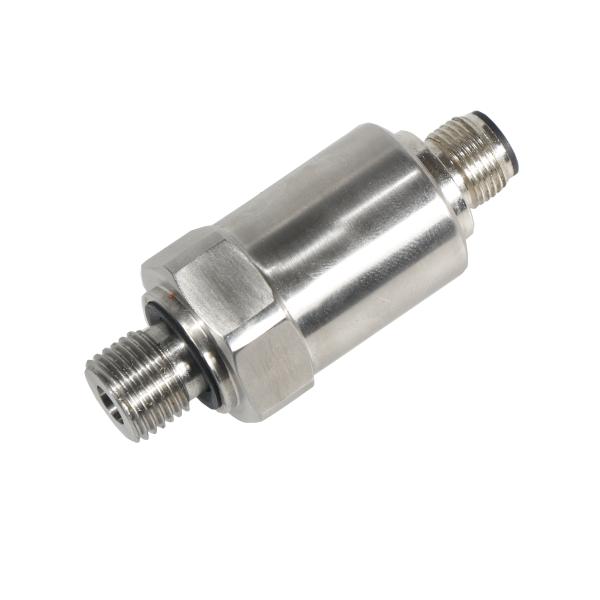

316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
Specifications
Place of Origin :
China
Brand Name :
OEM
MOQ :
Negotiable
Price :
Negotiable
Pressure Range :
-0.1...0~0.01...100MPa
Pressure type :
gauge (G), absolute (A), sealed gauge (S)
Output signal :
0-5V,0.5-4.5V,0-10V,4-20mA,0-20mA
Power Supply :
12 ~ 30VDC typical value: 24VDC
Accuracy :
0.25%FS(typ.) 0.5%FS(max.)
Working Temp :
-25℃~85℃
Electronic connection :
Packard 3 Pin Connector,Hirschman,
Pressure interface :
M20x1.5, 1/8''NPT, 1/4''NPT, G1/4'', 7/16''-20 UNF(by Customized)
Material of pressure membrane :
316L stainless steel
EMC Standard :
EN 61326-1; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
Certification :
CE;ISO
Packaging Details :
Stardard Export Packing By carton
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20,000 pcs per month
Description
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
Product Description
pressure transmitter use the Germany Ceramic sensors or diffuse silicon oil-filled sensors body as the sensitive element, built-in processing circuit to change sensors millivolt signal to standard output voltage or current signals, can be directly with the computer, control instrument and display instrument, etc. Select the high stability, high reliability of piezoresistive pressure sensor and high-performance dedicated circuit in the transmitter, the overall performance is stable and reliable, long distance signal transmission can be performed. Adopts the integration of the full stainless steel structure, after lots of stainless steel welding to reach the solid-state design, easy installation, with the characteristics of high vibration resistance and impact resistance, can be use in the bad environment for a long time.
Features
316L stainless steel diaphragm Micro amplifier,voltage and current output signal lication Strong anti-interference ,long-term stability Multiple electrical connection are optional ,easy installation Small size,low-cos and OEM is available Wide range,available to Gauge,Absolute and sealed gauge type
Characteristic of Pressure Sensor
1 Germany technology Ceramic sensors, 10 years design
2 Ti special integrated processing chip is used in the circuit
3 Automatic temperature compensation -40~80
4 Superior Long term Stability,low temperature drift, high sensitivity
5 Multiple electrical connection are optional ,easy installation
7 Wide range,available to Gauge,Absolute and sealed gauge type
8 HVAC Systems ·Energy and Water Treatment
9 EMI/RFI Rejection

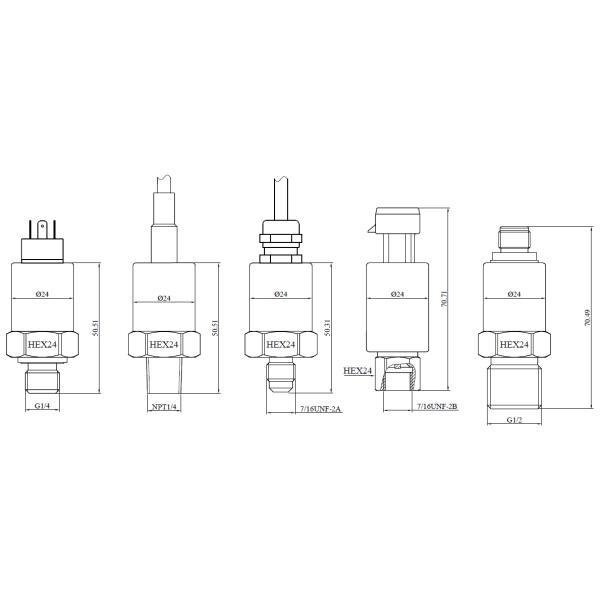

Size Information
Dimension Unit of outline drawing:mm.
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
Electrionic Connections
OUTPUT=Signal, VCC=Power Supply, GND=VCC-&S,Sheild=Earth
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
Manufacture Specification
Ambient Temperature: 25°C (unless specified)
Parameter Data
Pressure Range -0.1...0~0.01...100MPa
Pressure type gauge (G), absolute (A), sealed gauge (S)
Overpressure 150%FS
Burst pressure 250%FS
Electronic Wire 2 Wires 3 Wires
Output signal 4~20mA 0~5VDC 1~5VDC 0~10VDC 0.5~4.5VDC 0.5~4.5 V radio metric
Power Supply 12 ~ 30VDC, typical value: 24VDC 10~30 V DC 10~30VDC 12~30VDC 5 V DC 5 V DC±5%
Accuracy 0.25%FS(typ.) 0.5%FS(max.)
(including: nonlinearity, repeatability, hysteresis, zero drift, full drift)
Long-term stability ≤0.2%FS/year
Working Temp −25℃~85℃
Storage Temp −40℃~125℃
Temperature Compensation -10℃~80℃ (Standard)
Temp.coefficient of zero ±0.1%FS/°C
Temp.coefficient of span ±0.05%FS/°C
Insulating resistance 100MΩ@250VDC
Medium compatible Water, gas and weakly corrosive fluids
Short circuit protected Yes
Reverse polarity protection Yes
Electronic connection Packard 3 Pin Connector;
Smaller Hirschman Terminal Box IP65;
Packard 3 Pin Connector with cable length by Customized.
Pressure interface M20x1.5, 1/8’’NPT male, 1/4’’NPT male/Female, G1/4’’ male/female, 7/16’’-20 UNF male/Female (by Customized)
Material of pressure membrane 316L stainless steel
Response time(10%~90%) ≤10msec(Rises to 90%FS)
Vibration Shock 10g/5~2kHz,axes X/Y/Z/20g half sine 11ms
Water Proof IP65
Certificate approving CE Certificate available.
EMC Standard EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
Weight Net weight is about 0.1KG, Full Packing weight is about 0.2KG (Included 2 Meters Cable)

316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
