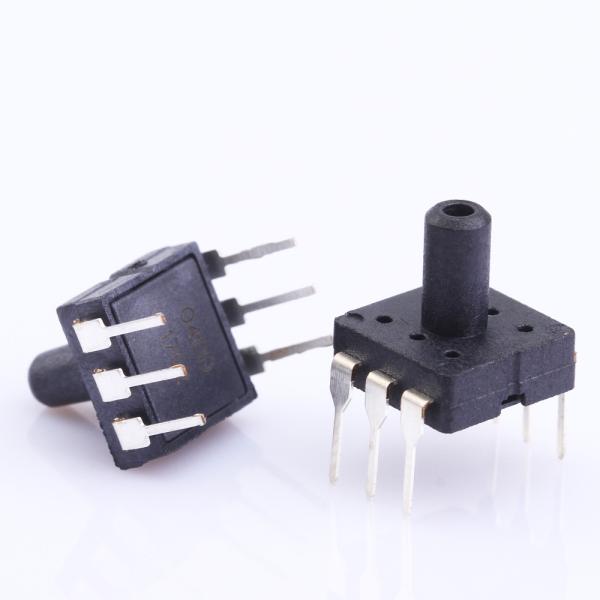

Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
Specifications
Place of Origin :
China
Brand Name :
OEM
Supply Ability :
20,000 pcs per month
Packaging Details :
Stardard Export Packing By carton
MOQ :
Negotiable
Price :
Negotiable
Product name :
Pressure sensor
Pressure range :
-100~0kPa...2000kPa
Power supply :
5V/3.3V
Output signal :
0.5-4.5Vdc(Analog)&12C
Accuracy :
1.5%Span
Pressure type :
Gage/Vacuum
Measured media :
Air and non-corrosive gases
Compensated Temp. :
0-60'C
Work temperature :
-20 ~ 100'C
ESD HBM :
4000V
Certification :
CE;ISO
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Description
Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge

Feature

  • Ranges: -100kPa~5kPa…5kPa~200(-15PSI~0.7PSI…30PSI)

  • Optional 5V or 3.3V power supply

  • Gage, Vacuum Type
  • For Non-corrosive gas or air
  • Amplified, Calibrated analog output (i2c is available)
  • Temp. Compensated:0℃~+60℃(32℉~+140℉)
  • Low Cost for high volume application

Application

  • For Medical and healthy equipment field, such as Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device etc.

  • For Home appliance field, such as Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee Machine, Cleaner, Robotic, Emergency Lamp,Sport Equipment etc.

  • For Other fields, such as air pump, emergency lamp, dust collector, HVAC and pneumatic device,automotive application etc.

Performance Parameter

Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at a temperature of 25±1℃ and humidity ranging from 25%~85%.

Item Data Unit
Power Supply 5(or 3.3 by custom) V
Max. Excitation current 3 mA
Output Signal 0.5-4.5(or by custom) V
Accuracy ±1.5 %Span
TCO(Temp. Coefficient of Offset) ±0.03 %FS/℃
TCS(Temp. Coefficient of Span) ±0.03 %FS/℃
Long Term Stability(1year) ±2 %Span

Over Pressure

 2X
Compensation Temp. 0 ~ 60/32 ~ 140 ℃/℉
Ambient Temp. -10 ~ 90/-4 ~ 185 ℃/℉
Storage Temp. -40 ~ 125/-40 ~ 257 ℃/℉

Dimension (Unit:mm/Inch)

Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge

Order Guide

Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge

Notes

1. Implement ESD protection during soldering and assembly.
2. Overload voltage(6.5Vdc) or current(5mA) may burn the ASIC.
3. The medium must be compatible with the pressurized parts.
4. Please contact us for special request on parameter and application.

Non Corrosive Gas / Air Piezoelectric Pressure Sensor For Tyre Gauge
