4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
Specifications
Place of Origin :
China
Brand Name :
OEM
Supply Ability :
20,000 pcs per month
Packaging Details :
Stardard Export Packing By carton
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE;ISO
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Application :
Gas and Fluid Pressure Measurement
Power supply :
12~36VDC
Accuracy :
0.2%FS - 0.5%FS
Output signal :
4~20mA/0.5-4.5VDC
Pressure type :
Gauge Pressure Absolute Pressure Sealed Pressure
Process connection :
M20*1.5, G1/4, NPT1/4, etc.
Electrical connection :
GDM series
Overload pressure :
200%FS
Operating temperature :
-40~85℃
Options :
HART communication, alarm output
Description
4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
Product Description

The Pressure Transducer Sensor is a small economical pressure transmitter, due to its high reliability, wide applicability, product flexibility and diversity, it is widely used in measuring and controlling in aviation, aerospace, petroleum, chemical, metallurgy, electric power, water conservancy, etc.


High electrical performance and long-term stability make it the first choice for similar industries, and can directly replace similar products such as Atlas, MSI, HUBA. All the products can be customized according to your requirements, we can also accept OEM.

Features:

  • Advanced ceramic piezoresistive sensor/diffused silicon sensor (optional), cost-effective
  • Multiple pressure ranges and electrical outputs
  • Compact structure
  • Multiple threaded connections
  • High electrical performance
  • Long-term stability
Technical Parameter
Media Oil (mineral, screw compressor oil), water, air
Power Supply 12VDC~36VDC; 5VDC; 2.7-5.5VDC
Accuracy 0.2%FS - 0.5%FS
Pressure Range 0 - 3KPa - 60MPa
House Material Stainless steel
Output 4 - 20mA, 0.5 - 4.5VDC
Temperature Drift ±0.03% FS/K
Operating Temperature -40 ~ 85℃ / -40 ~ 185℉
Overload Pressure 2*FSO
Electrical Connection Hirschmann GDM series
Process Connection M20*1.5, G1/4, NPT1/4, R1/4, etc.
Options HART communication, alarm output
Response Time <1ms
Protection Level IP65
Weight 200g
Certificates CE, ISO

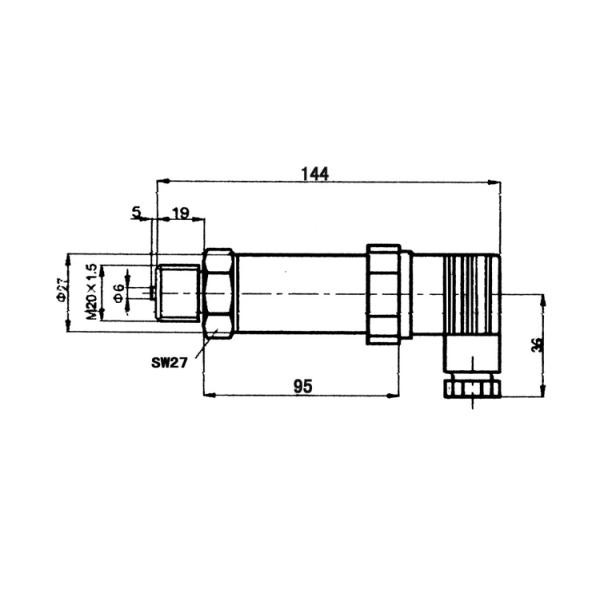

Detailed Images

Wiring:

4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor

4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor

Electrical Connection:

4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor 4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor

Output 4-20mA 0-10VDC, 0.5-4.5VDC With Alarming function
Power supply+ 1 Red 1 Red 1 Red

Current Output/Power supply- (Two wire)

 2 Black 2 Black 4 Black

CVoltage Output/Alarming 1

 3 White 2 White

GND/Alarming 2

 4 White 4 Blue 3 Blue

4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor

4mA 36VDC Small Piezoresistive Pressure Transmitter Sensor
