Specifications
Place of Origin :
China
Brand Name :
OEM
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE;ISO
Packaging Details :
Stardard Export Packing By carton
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20,000 pcs per month
Name :
Stainless Steel Pressure Sensor Transducer 50 Bar 100Bar 300Bar
Measuring medium :
Gas, liquid
Pressure type :
Gauge pressure(G), Sealed pressure(S)
Pressure range :
0~400bar
Power supply :
9-32VDC
Output signal :
4~20mA ,0~10VDC,0~5VDC
Accuracy :
0.5%FS
Medium temp :
-40~+85℃
Overpressure :
150%FS (1.5 times FS)
Damage pressure :
500%FS (5 times FS)
Selling Units :
Single item
Single package size  :
5X5X9 cm
Single gross weight :
0.127 kg
Package Type :
Standard export packing, including instructions and certificate
Description
400 Bar Stainless Steel Water Pressure Sensor Transducer

Application of 0-5V Submersible Liquid Water Pressure Sensor

  • Mechanical engineering Industry
  • Industrial automation measuring
  • Hydraulic and level measurement
  • Gas tank pressure monitoring
  • Industrial test and control
  • Other industrial applications

Special Feature of 0-5V Submersible Liquid Water Pressure Sensor

  • Widely pressure range from 0~400bar
  • Various electrical connectors available: can be OEM custom various parameters
  • Various industrial standard signal output:4~20mA,0~10V,0~5V,1~5V,0.5~4.5V optional
  • Wide temperature range: -40 ~ 125℃, autocorrection temperature drift
  • Moisture-proof design: Stable performance in very humid environment
  • Harsh working environment without delay: Response time ≤1ms
  • Compact dimension design

Description of 0-5V Submersible Liquid Water Pressure Sensor

standard pressure transmitter adopts Classical diaphragm technology. It designed with widely pressure range, compound output signals optional. It is suitable for both civil and industrial use. Multiply construct available, it can make sure the batch requirement of the client, we also can supply the special design.

Pressure Transmitter

1. Measuring range from 0-250Bar .

2. Output signal : 0.5-4.5V

3. Process connection: G1/4

4. Power Supply: 5Vdc

5. Accuracy: 0.5%FS

Remarks: The price is based on the above specification . For this model other specification please contact us . Other pressure range etc specification such as this model are list as follows:

Specifications

Measuring medium Gas, liquid
Pressure type Gauge pressure(G), Sealed pressure(S)
Pressure range 0~400bar
Power supply 9-32VDC
Output signal 4~20mA ,0~10VDC,0~5VDC
Nonlinearity ≤0.2
Non-repeatability ≤0.2% FS
Accuracy 0.5%FS
Long-term stability 0.25%FS/year
Medium temp -40~+85℃
Operation temp -40~+85℃
Zero temp. drift ≤0.03%FS/℃
FS temp. drift ≤0.03%FS/℃
Response time ≤5ms(10%-90%)with buffering ≤1ms(10%-90%) Without buffering
Insulation resistance ≥1000 MΩ/100V
Overpressure 150%FS (1.5 times FS)
Damage pressure 500%FS (5 times FS)
Vibration resistance 5~1000Hz
Shock resistance 50g, 20ms
Process connections G1/4, M14×1.5, or other process connections on request
Materials Wetted parts: 17-4PH, non-wetted parts: stainless steel 304
Ingress protection IP67
Electrical connections Circular connector M12 x 1,L-connector DIN43650

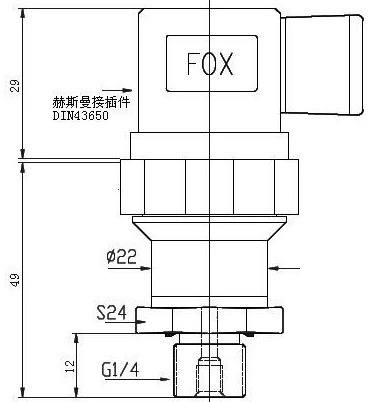

Dimensions in mm

400bar Stainless Steel Water Pressure Sensor Transducer400bar Stainless Steel Water Pressure Sensor Transducer

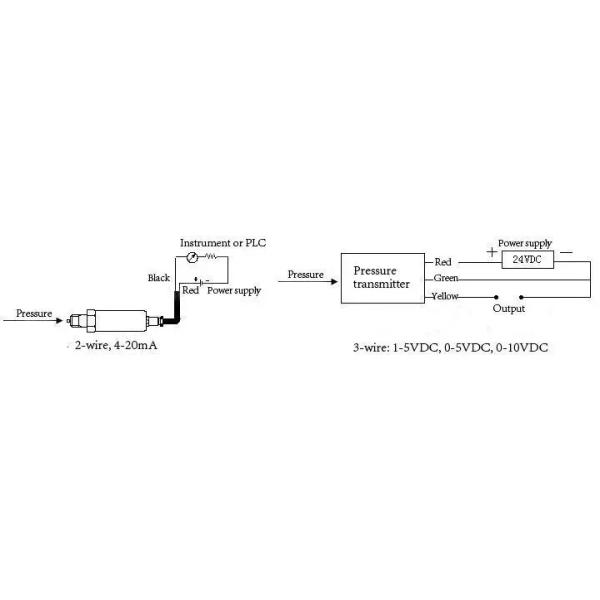

Wiring diagram

400bar Stainless Steel Water Pressure Sensor Transducer
