Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Oil Filled Waterproof Pressure Transducer
Specifications
Place of Origin :
China
Brand Name :
OEM
Supply Ability :
20,000 pcs per month
Packaging Details :
Stardard Export Packing By carton
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE;ISO
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
type :
pressure sensor
usage :
Industrial usage
place of origin :
Shaanxi, China(mainland)
power supply :
12-24VDC (10-30VDC)
Output :
12-36VDC/24VDC
Setting distance :
0-1.4mm, 0-2.8mm, 0-5.6mm...
Control output :
max.200ma
Accuracy :
0.1%FS; 0.2%FS; 0.5 %FS
Media :
gas, air, liquids, weak corrosive
Certificate :
ISO9001-2008
Description

Oil Filled Waterproof Pressure Transducer

Introduction

waterproof pressure transducer is an isolated oil - filled pressure sensor core with high performance, low cost and small volume. It uses MEMS Silicon chip. Manufacturing of each sensor is a process with strict aging, screening and testing to ensure the excellent quality and high reliability.

This product has high anti-overload capacity and wide temperature range, it is widely used in automobiles, loading machinery, pumps, air conditioning and other occasions where have high requirements on small size and cost-effective.

Feature

Ø Measuring range: -100kPa…0kPa~10kPa…100MPa

Ø Wide temperature compensation: -10℃~+80℃

Ø Imported chip, Laser trimming

Ø SS 316L φ19mm*11.5mm

Application

Ø Pressure measurement of automobile engine oil

Ø Engineering machinery, water pumps, equipment

Ø Industrial process control

Ø Urban water supply system

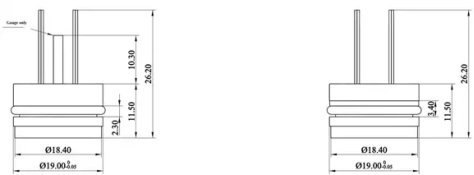

Outline Construction:(Unit: mm)

Oil Filled Waterproof Pressure Transducer

Specification

Construction Condition

Diaphragm material

SS 316L

Housing material

SS 316L

Pin Wire

Kovar/100mm silicone rubber wire

Back pressure tube

SS 316L (gauge and negative pressure only)

Seal ring

Nitrile rubber

Electrical Condition

Power supply

≤2.0mA DC

Impedance input

3kΩ~6kΩ

Impedance output

3kΩ~6kΩ

Response

(10%~90%):<1ms

Insulation resistance

100MΩ,100V DC

Overpressure

2 times FS

Environmental Condition

Media applicability

Fluid which has no corrosion on stainless steel and nitrile rubber

Shock

No change at 10gRMS,(20~2000)Hz

Impact

100g,11ms

Position

Deviate 90° from any direction, zero change≤±0.05%FS

Basic Condition

Environment temperature

(25±1)℃

Humidity

(50%±10%)RH

Atmospheric pressure

(86~106) kPa

Power supply

(1.5±0.0015)mA DC

Parameter

Item

Min.

Typ.

Max.

Units

Linearity

±0.1

±0.2

%FS,BFSL

Repeatability

±0.05

±0.075

%FS

Hysteresis

±0.05

±0.075

%FS

Zero output

±2.0

mV DC

FS output

45

130

mV DC

Compensated temp. range

-10~80

℃

Working temp. range

-40~125

℃

Storage temp. range

-55~150

℃

Zero temp. error

±0.75

±0.1

%FS, @25℃

Full temp. error

±0.75

±0.1

%FS, @25℃

Long term stability error

±0.2

%FS/year

Note:1. The above performance indicators are tested under the benchmark conditions

2. The temperature range for temperature drift test is the compensation temperature range

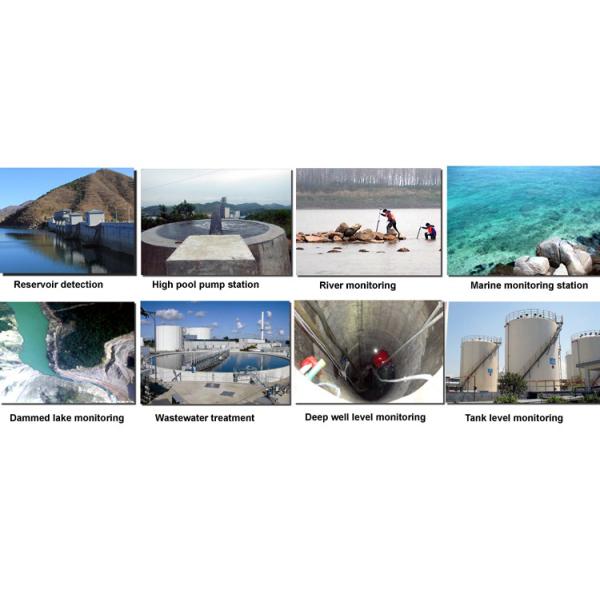

Usage Area:

Oil Filled Waterproof Pressure Transducer
