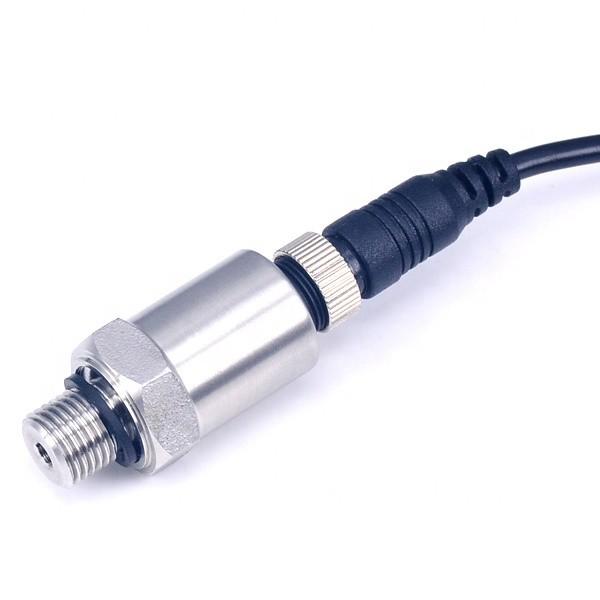

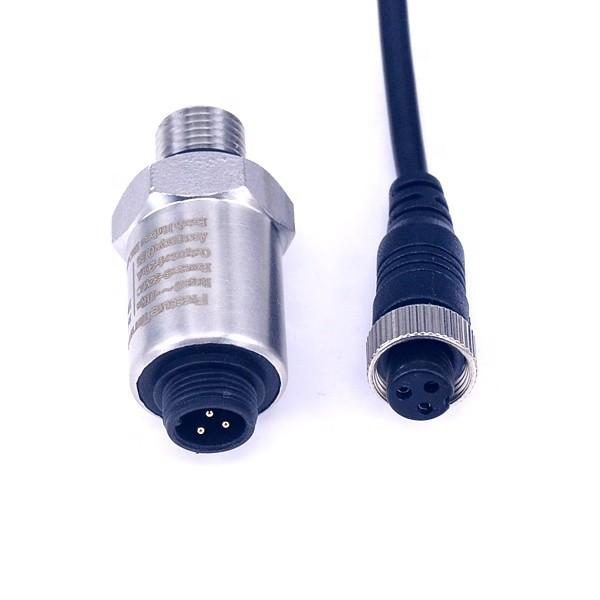

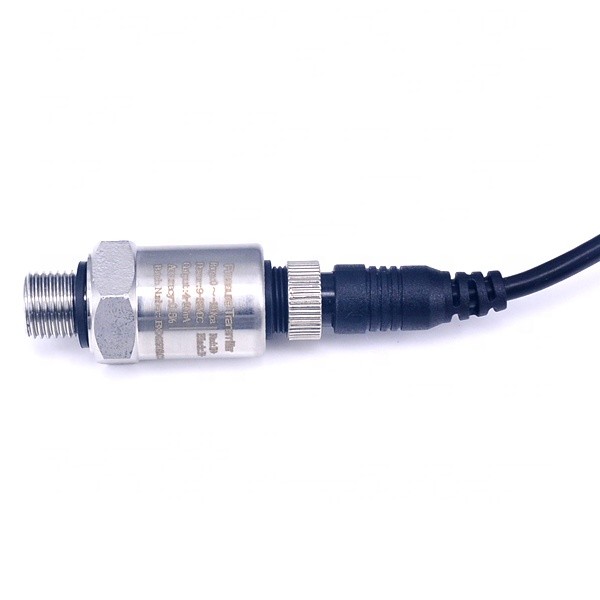

20mA IP68 Waterproof Pressure Sensor For Water Treatment Industry
20mA IP68 Waterproof Pressure Sensor For Water Treatment Industry
20mA IP68 Waterproof Pressure Sensor For Water Treatment Industry
20mA IP68 Waterproof Pressure Sensor For Water Treatment Industry
20mA IP68 Waterproof Pressure Sensor For Water Treatment Industry
20mA IP68 Waterproof Pressure Sensor For Water Treatment Industry
Specifications
Place of Origin :
China
Brand Name :
OEM
MOQ :
Negotiable
Price :
Negotiable
Product Features :
the Characteristics of Professional Waterproofing Hammer Impact
Power Supply :
9-32VDC
Signal Output :
4-20mA
Long-term Stability :
Less than 0.1%FS/year
Accuracy :
+/-0.5%FS etc
Thread :
G1/4
Wiring Connector :
Aviation Plug with 1m cable
Overload Capacity :
200%FS
Sensor Core :
Import Ceramic Pressure Sensor Core
Pressure Medium :
Special Designed for Water System
Selling Units :
Single item
Single package size  :
15X12X8 cm
Single gross weight :
0.300 kg
Package Type :
Plastic bubble bag,and then put into solid carton.
Certification :
CE;ISO
Packaging Details :
Stardard Export Packing By carton
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20,000 pcs per month
Description
20mA IP68 Waterproof Pressure Sensor For Water Treatment Industry

Product Description

Waterproof Pressure Sensor is developed according to the needs of water treatment industry,widely use for the field of conversion frequency pump,complete water supply system and air-conditioning plant etc,with the characteristics of professional waterproofing hammer impact,nice electrical performance and long term performance to make it the first choice for the same industry,can directly replace similar imported products.

Technical Parameters:

Pressure Range

0-10bar

Supply Voltage

9-32VDC

Signal Output

4-20mA

Pressure Connection

G1/4

Accuracy

±0.5%FS

Overload Capacity

200%FS

Pressure Medium

non-corrosive medium

Long-term Stability

≤±0.2%FS/year

Working Temperature

-40 to +85℃

Temperature Drift

0.02%FS/℃

Electrical Connection

Aviation Plug

Protection Class

IP68 Waterproof,can throw into water

Housing Material

304 Stainless Steel

Blast Proof Class

ExiaIICT6

Definition for the wires:

Output Mode

4-20mA

0-10V

Power+

1-Red

1-Red

Power-

2-Black

2-Black

Voltage Output

3-White
20mA IP68 Waterproof Pressure Sensor For Water Treatment Industry
FAQ

1: What detailed information do I need to provide if I want to place an order?
application,measured medium,work temp.,test range,output,screw port,electrical connection etc.

2: How long will get the reply?

Contact you in 6 hours during working days or talk online through TradeManager,Skype,Wechat.

3: Could I get samples?
Any quantity samples are available for you to test our quality.
4: Could you provide me the shortest lead time?
We have materials in stock,we will put your order ahead of schedule if need in rush.
5: Could I visit your factory?
Of course,we warmly welcome you to visit our factory.
