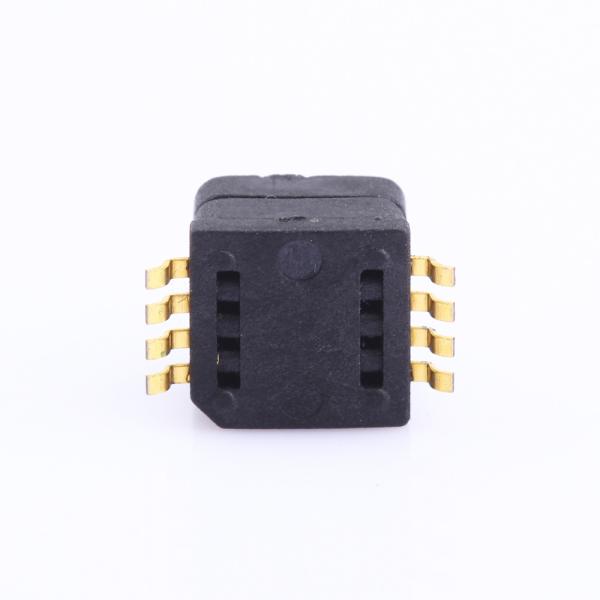

4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor
Specifications
Place of Origin :
China
Brand Name :
OEM
MOQ :
Negotiable
Price :
Negotiable
Product name :
Pressure sensor
Pressure range :
-100kPa~0kPa...1000kPa
Power supply :
5VDC
Output signal :
0.5-4.5V
Accuracy :
1%Span
Pressure type :
Gage type
Measured media :
Air and Non-Corrosive gas or air liquid
Compensated Temp. :
0-60'C
Work temperature :
-40 ~ 125'C
Ambient Temp :
-10~85'C
Certification :
CE;ISO
Packaging Details :
Stardard Export Packing By carton
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20,000 pcs per month
Description
4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor

Feature

  • Ranges:-100kPa~0kPa…1000kPa(0PSI~1.5PSI…150PSI)
  • Perfect Accuracy: ±1.0% of full scale
  • Gage Type
  • For Non-corrosive gas or air liquid
  • Calibrated,Amplified analog output
  • Temp. Compensated:0℃~+70℃(32℉~+140℉)
  • Direct application, Low Cost.

Application

  • For Small household appliances field, such as electric cooker,milk machine,purifier,coffee machine etc, medical instruments and device.

  • For air pump, air compressor, pressure gauge and meter etc.

  • For Other fields, such as medical device, automotive, liquid level, diving equipment etc.

Performance Parameter

Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at a temperature of 25±1℃ and humidity ranging from 25%~85%.

Item Data Unit
Power Supply 5 Vdc
Output Signal 0.5-4.5(or by custom) Vdc
Accuracy ±1.0 %Span

Zero Temp.Coefficient

 ±0.03 %FS/℃

Span Temp.Coefficient

 ±0.03 %FS/℃
Long Term Stability(1year) ±1 %Span
Over Pressure 2X (≤500kPa) Rated
1.5X(≥500kPa)
Compensation Temp.

0 ~ 60/32 ~ 140

℃/℉
Ambient Temp.

-10 ~ 85/14 ~ 185

℃/℉
Storage Temp.

-40 ~ 125/-40 ~ 257

℃/℉

Dimension&Electric Connection(Unit:mm/Inch)

4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor 4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor 4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor

PIN Definition

1

3

5

7

2 / 4/ 6 / 8

SDA

VDD

GND

SCL

NC

NOTE:

1, N/C Pins must be left floating

2, Soldering of lead Pins:250’C for 5 sec max.

3, 0.1uf capacitor must be connected between VDD and GND

Notes

1. Implement ESD protection during soldering and assembly.
2. Overload voltage(6.5Vdc) or current(5mA) may burn the ASIC.
3. The medium must be compatible with the pressurized parts.
4. Please contact us for special request on parameter and application.
