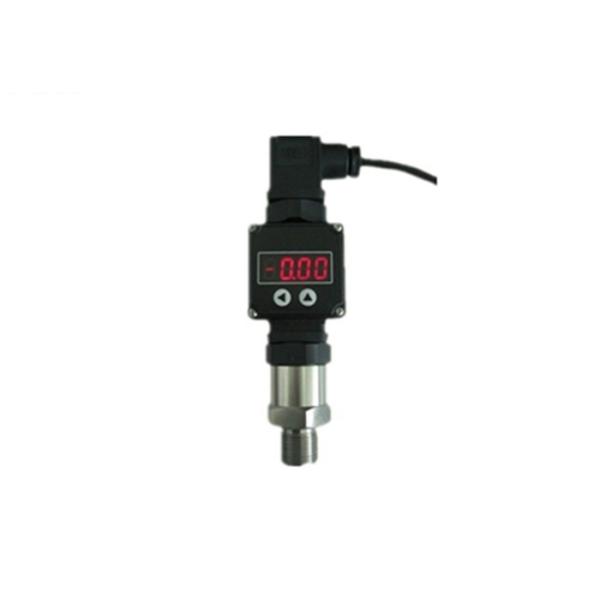

LED Display Smart Pressure Transmitter with 4-20mA 1-5V Output , Precision Pressure Sensor
LED Display Smart Pressure Transmitter with 4-20mA 1-5V Output , Precision Pressure Sensor
Specifications
Brand Name :
WNK
Model Number :
WNK805
Certification :
ISO,Exia
Place of Origin :
ANHUI, CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200 set/day
Delivery Time :
3~5 working days
Packaging Details :
standard export carton packing
Measure media :
liquid, gas and steam
Output signals :
4~20mA, 1-5V
Accuracy :
0.2%, 0.25%, 0.5%,
Pressure range :
-100KPa~0, 0-10kPa, 100kPa......70MPa
Protection class :
IP65
Housing material :
304SST, 316SST
Power Supply :
10.5~30V DC
Application :
Pressure measurement
Display :
LED (optional)
Diaphragm :
316L
Description

LED Display Smart Pressure Transmitter with 4-20mA 1-5V Output , Precision Pressure Sensor

LED Display Smart Pressure Transmitter with 4-20mA 1-5V Output

Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably, with LED display, so user can also make calibration on site.

Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement


Technical data

Applicable media Liquid, Gas, Steam
Pressure range -100KPa~0, 0-0.2~-100kPa, 0-0.2~1000kpa, -1bar ~70MPa
Pressure measurment Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy 0.2, 0.5
Stability ±0.25% FS/year
Zero drift 50% of full range span.
Max overload 200% of sensor range
Output signals 4~20mA, 1-5V
Display LED
Housing material 304 stainless steel
Mechanical connection M20×1.5; 1/2-18NPT, 1/4NPT, Customize, G1/2 Flush diaphragm, Clamp
Power supply Non-explosion: 10.5~45V DC
EEX ia:10.5～30 V DC
Ambient temperature －40～85℃
Process temperature －40～85℃
Compensation temperature －10～70℃

Dimension

LED Display Smart Pressure Transmitter with 4-20mA 1-5V Output , Precision Pressure Sensor

Our product quality is guaranteed

1. Our products are all calibrated before shipment.

2. 100% of all products we do temperature compensation and aging test before shipment.

LED Display Smart Pressure Transmitter with 4-20mA 1-5V Output , Precision Pressure Sensor
