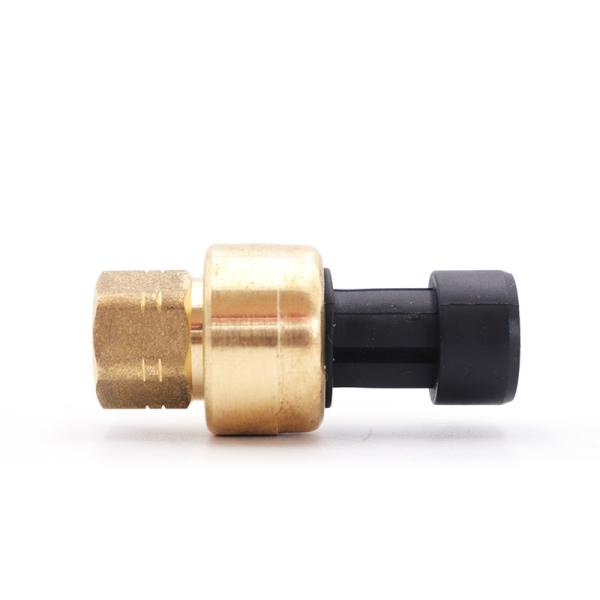

IP65 4.5VDC Brass Capacitive Ceramic Pressure Sensor
IP65 4.5VDC Brass Capacitive Ceramic Pressure Sensor
IP65 4.5VDC Brass Capacitive Ceramic Pressure Sensor
IP65 4.5VDC Brass Capacitive Ceramic Pressure Sensor
IP65 4.5VDC Brass Capacitive Ceramic Pressure Sensor
IP65 4.5VDC Brass Capacitive Ceramic Pressure Sensor
Specifications
Brand Name :
WNK
Model Number :
WNK83MA
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
D/P, T/T, Western Union, Paypal
Supply Ability :
5000/ Piece/ Month
Delivery Time :
5-8 work days
Packaging Details :
Neutral carton packing or as per your requirement.
Housing Material :
Brass
Output Singal :
0.5-4.5v
Ambient Temperature :
-40-125C
Pressure Type :
Gauge Pressure Sealing Pressure
Accuracy :
1%FS
Electrical Connection :
Packard, Cable outlet
Pressure Range :
0-10Bar 0-20Bar
Process Connection :
1/4 NPT G1/4
Protection :
IP65
Description

0.5-4.5VDC Brass Capacitive Ceramic Pressure Sensor For Liquid Gas And Water

Product Description

WNK83 is a low cost ceramic capacitive pressure sensor. It uses our patented ceramic capacitive core pressure sensor, with accuracy of 1%FS, suitable for various IOT, IIOT and other process control fields. WNK83 has brass or stainless steel 304 housing and electrical connectors of Packard and direct cable. Its output is linearity 0.5-4.5V. With big stock, we ship you sensors very fast. As an original producing factory, OEM, ODM and customization services are welcome!

Applicable media water or liquid, gas
Pressure range

0-10bar, 0-20bar
Pressure measurement Gauge Pressure, Sealing Pressure
Output signals 0.5-4.5v
Power supply 4.75-5.25V DC
Accuracy ±1%FS
Total error band ±3%
Max pressure 2 times
Burst pressure 3 times
Supply current 15mA max
Electrical connection Packard Cable outlet
Process connection 1/4NPT, G1/4
Housing material brass
Protection class IP65
Working temperature -20-70c
Ambient temperature -40-110c

IP65 4.5VDC Brass Capacitive Ceramic Pressure SensorIP65 4.5VDC Brass Capacitive Ceramic Pressure SensorIP65 4.5VDC Brass Capacitive Ceramic Pressure Sensor

Company Information

IP65 4.5VDC Brass Capacitive Ceramic Pressure Sensor

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.

Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
