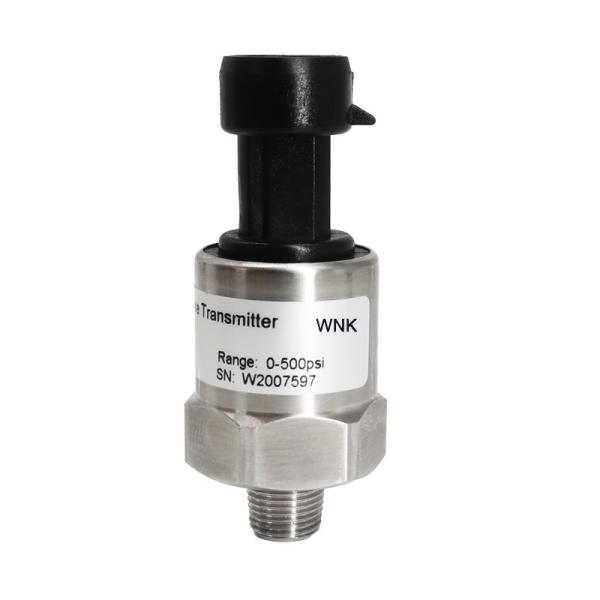

SPI 20MA Gas Resistance Air Flow HVAC Pressure Sensor 1/8NPT Connection
SPI 20MA Gas Resistance Air Flow HVAC Pressure Sensor 1/8NPT Connection
SPI 20MA Gas Resistance Air Flow HVAC Pressure Sensor 1/8NPT Connection
SPI 20MA Gas Resistance Air Flow HVAC Pressure Sensor 1/8NPT Connection
Specifications
Brand Name :
WNK
Model Number :
WNK80MA
Certification :
CE, SGS, ISO9001
Place of Origin :
Anhui, China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 Piece/Pieces per Month Pressure Transmitter
Delivery Time :
5-8 work days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Pressure Range :
0-600bar
Output :
I2C, SPI, 0.5-4.5V, 4-20ma And Customization
Respond Time :
≥1ms
Overload Pressure :
3-5 Times
Sensor Type :
Iot Pressure Sensor
Working Temperature :
-40 -135°C
Warranty :
12 Months
Ingress Protection :
IP67
Accuracy :
1%
Compensation Temperature :
-20 -70°C
Housing Material :
Stainless steel 304
Description

4-20MA Oil Gas Resistance Pressure Sensor For HVAC Automation Air Compressor


Founded in 2004, Hefei WNK Smart Technology Co Ltd is a professional national high-tech enterprise specializing in the development, manufacturing, sales and service of various type of advanced and reliable pressure sensors and pressure transmitters. We are committed to providing our customers with pressure sensors, pressure transmitters and technical solutions in various type of applications
The company's main products include pressure sensors and transmitters, temperature transmitters and other measuring instruments. The company's products and services are widely applied in internet of things and smart cities such as: smart water, smart gas and smart fire.


SPI 20MA Gas Resistance Air Flow HVAC Pressure Sensor 1/8NPT Connection

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.


Parameter:

Applicable mediaLiquid, gas and steam
Pressure range0-20kPa~50MPa
CellCeramic capacitive pressure sensor
Pressure measurmentGauge Pressure, absolute pressure and sealing pressure
Output4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)1%F.S.
Compensation temperature-20~85ºC
Ambient temperature-40~125ºC
Working temperature-40~125ºC
Temperature drift(zero)±0.15% F.S. (-20~85ºC)
Temperature drift(full range)±0.15% F.S. (-20~85ºC)
Electrical connectionParkard, Cable outlet, M12, mini DIN43650
Mechanical connectionG1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material304 stainless steel(316SS for inner core)
ProtectionIP65



Electrical connection

SPI 20MA Gas Resistance Air Flow HVAC Pressure Sensor 1/8NPT Connection


Application:

WNK80MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
