4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam
4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam
4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam
4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam
Specifications
Brand Name :
WNK
Model Number :
WNK80MA
Certification :
CE
Place of Origin :
China
MOQ :
1 Ppiece
Price :
Negotiation
Payment Terms :
T/T, Paypal, West union
Supply Ability :
1000
Delivery Time :
3-5 days
Packaging Details :
Standard Packing or as per your requirement
Output :
24VDC/12VDC/5VDC/3.3V
Pressure range :
0~6MPa
Measured media :
Liquid, gas and steam
Electrical connection :
Packard, M12, DIN43650, Cable
Housing material :
Alunimum/Brass/SST 304
Key words :
Pressure sensor
IP rate :
IP65
Prorocess conection :
G1/2, G1/4, M2x1.5NPT1/4, customization
Description

4-20ma 0.5-4.5v I2C Output Ceramic Capacitance Pressure Sensor For Liquid Gas Steam

Product Description

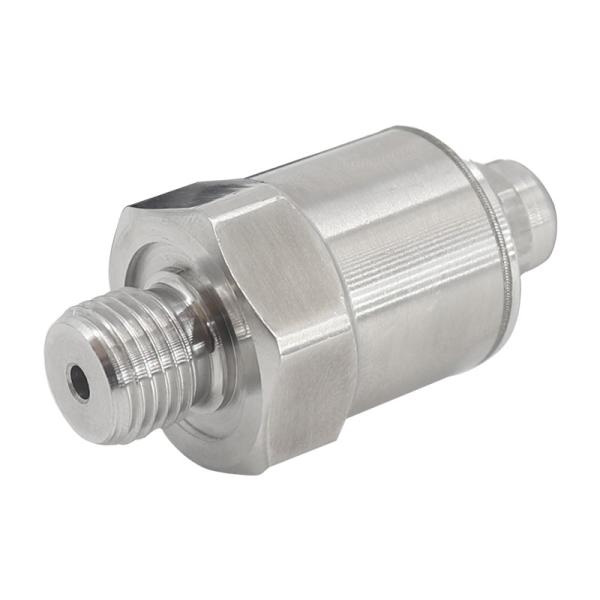

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Specification

Applicable media Liquid, gas and steam
Pressure range00 0-6Mpa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure and sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability) 0.5%FS-1%FS
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material 304 stainless steel(316SS for inner core)
Protection IP65

Product display:

4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam

Company introduction:

4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
