Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive
Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive
Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive
Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive
Specifications
Brand Name :
WNK
Model Number :
WNK8010-TT
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
D/P, T/T, Western Union, Paypal
Supply Ability :
5000 pieces per month.
Delivery Time :
5-8 working days
Packaging Details :
standard export package
Analog :
4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, I2C
Digital :
Hart, RS485 etc
Measure range :
0-1~200mH2O
Media :
Liquid, Water
Accuracy :
±0.25% FS/year, ±0.5% FS/year
Housing material :
Stainless steel
Power supply :
24V/12V/5V/3.3V
Protection :
IP68
Description

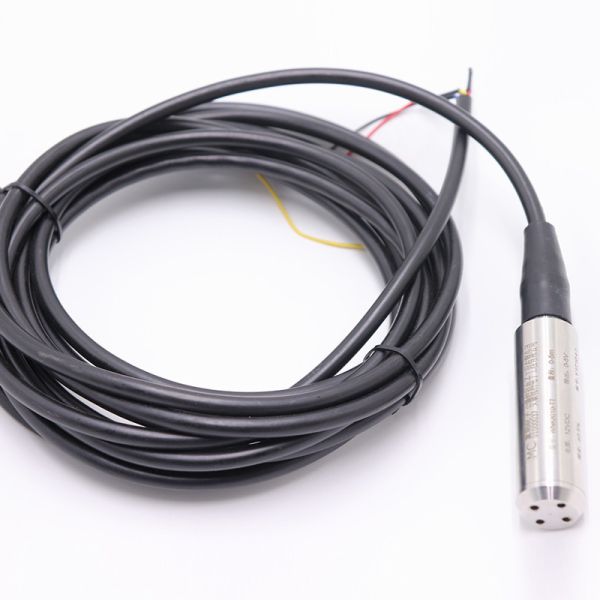

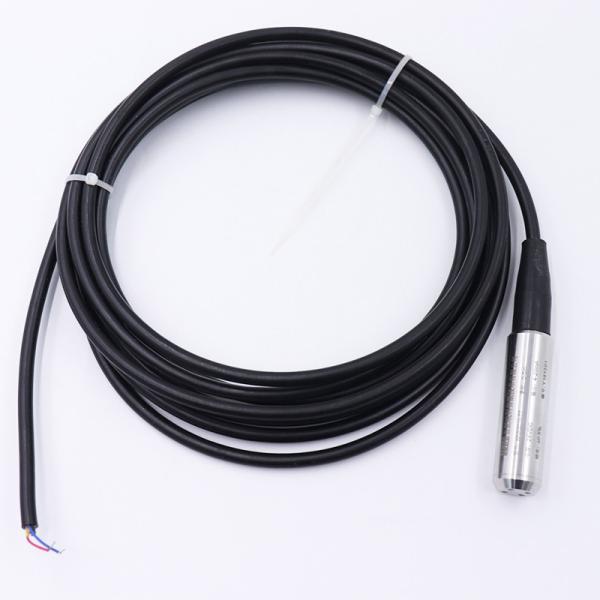

Anti-corrosive 4-20ma Underwater River Water Tank Level Sensor

Product Description

WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Product Specification

Output signals
Output 4-20mA,,0-5V, 1-5V,Customization
Measured range
Measured range 0-0.5~200mH2O
Max overload 150% of sensor range
Parameters
Applicable media Liquid, Water
Accuracy ±0.2% FS/year, ±0.5% FS/year
Stability ±0.25% FS/year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power supply 24V DC
Ambient temperature -20~85℃
Process temperature -20~85℃
Compensation temperature -20~85℃
Protection class IP68

Product Show

Underwater Underwater 12v Water Level Automatic Indicator Anti CorrosiveUnderwater Underwater 12v Water Level Automatic Indicator Anti Corrosive

Ordering sheet
Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive

Company Information

Underwater Underwater 12v Water Level Automatic Indicator Anti CorrosiveUnderwater Underwater 12v Water Level Automatic Indicator Anti Corrosive

Package and Shipping

Underwater Underwater 12v Water Level Automatic Indicator Anti CorrosiveUnderwater Underwater 12v Water Level Automatic Indicator Anti Corrosive

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.

Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: What is yor MOQ?

A: We have no MOQ limits,1 pc for testing is acceptable.
