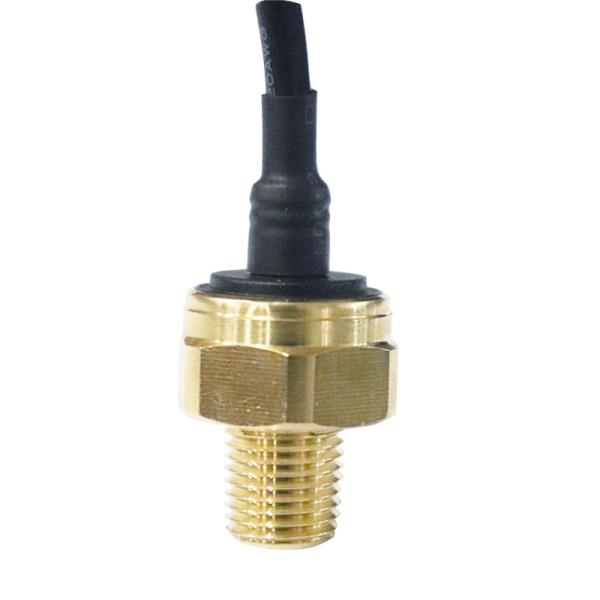

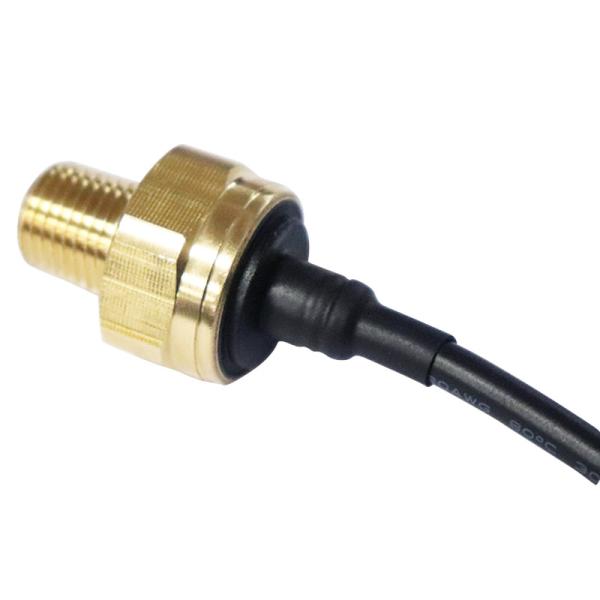

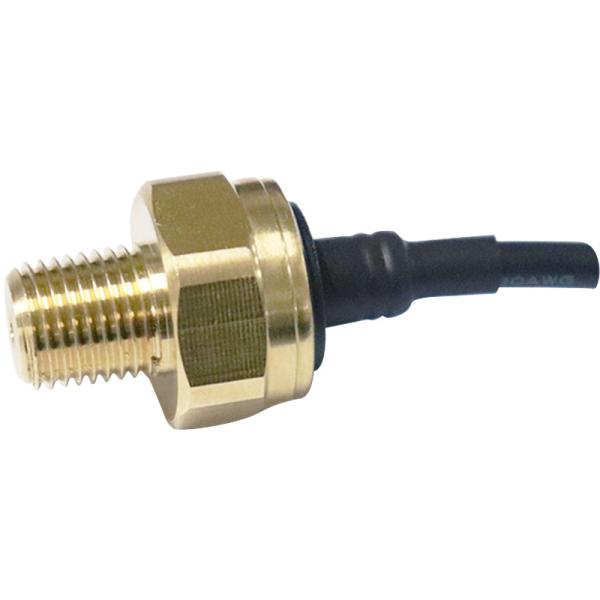

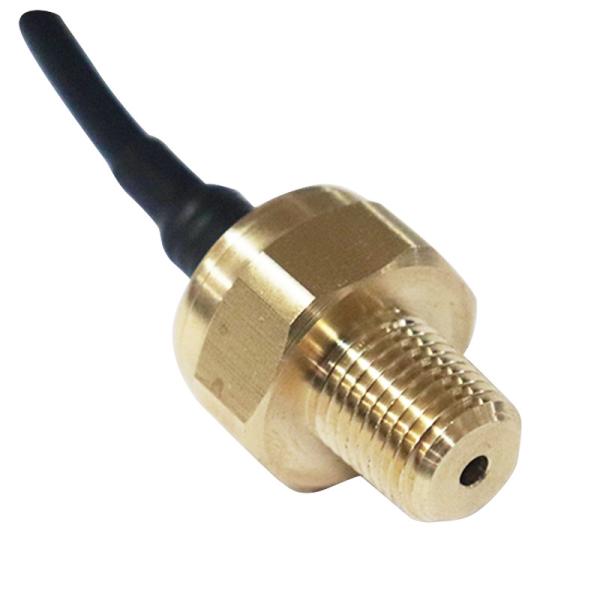

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor
Specifications
Brand Name :
WNK
Model Number :
wnk83mA
Certification :
CE
Place of Origin :
China (Mainland)
MOQ :
1Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
5000+Piece+perMonth
Delivery Time :
5-8 work day
Packaging Details :
standard export carton box
Accuracy :
1%
Measured media :
Liquid, gas and steam
Pressure range :
0-1000kPa
Output signal :
0.5-4.5 VDC
Power supply :
4.75-5.25 VDC
Operating temperatures :
-20 to 70 ℃
Material :
Brass
Process connection :
1/4NPT
Electrical connection :
Cable outlet
Features :
Anti-corrosion,anti-wear,shock resistance
Description
Product Description

0.5V-4.5V Output Ceramic Capacitive Pressure Sensor for Water,Liquid,Gas

As a brass practical pressure transmitter, WNK83mA has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25 voltage DC and the maximum supply current is 15 milliamp, besides the voltage output is 0.5-4.5voltage DC. It can withstand strong working pressures up to 2000kpa. Its linearity,hysteresis,repetitiveness accuracy is 1%.

Applicable media Liquid, gas and steam
Pressure range 0-1000kPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Cable outlet
Mechanical connection 1/4 NPT
Housing material Brass
0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor

Company Information

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor

Factory

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor

Exhibition

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor

Our Certificate

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
