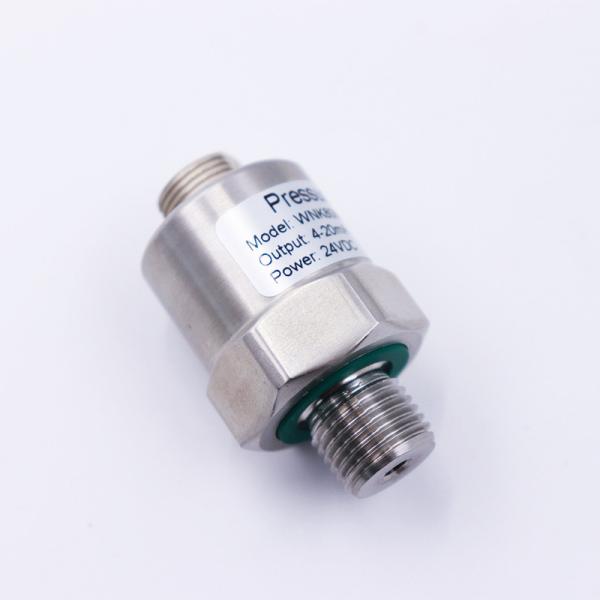

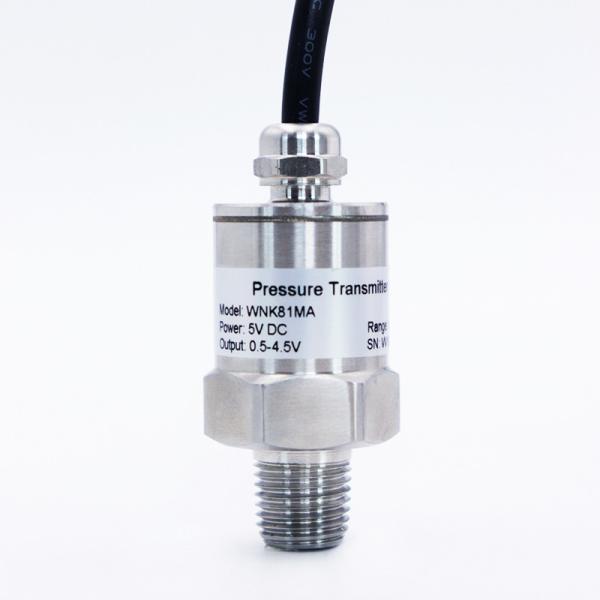

WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment
WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment
WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment
WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment
WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment
WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment
WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment
WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment
Specifications
Brand Name :
WNK
Model Number :
WNK81mA
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
2000pieces per week
Delivery Time :
5-8 working days
Packaging Details :
Boxes
Media :
Water, Liquid, Gas, Steam, Oil, Lubricant
Output signal :
4- 20mA, 0.5-4.5V, 0-5V, 1-5V, i2c, other
Pressure range :
-100Kpa ~ 60MPa
Material :
304 SS, 316L
Accuracy :
0.5% , 1.0% FS
Operating temperature :
-40~85 ℃
Description

Wnk81ma diffused silicon pressure sensor transducer for water treatment system

Product Discription

Application in water treatment and water conservancy monitoring:
With the development of science and technology, water conservancy power generation, hydrological monitoring, sewage treatment,constant pressure water supply and other industries have increasingly higher requirements for timely data feedback and control of field pressure. Pressure sensor provides first-hand information for the discovery and processing of field problems.​

WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment

WNK81mA pressure sensor is generally used in the balance water tank and the balance water tank in the water treatment system as a liquid level sensor. The pressure data returned by the pressure sensor is controlled by the frequency converter to start or stop the pump.

WNK81MA products are small in size and high in accuracy, and are used in industrial sites, urban water supply and sewage treatment, hydrological monitoring and control, large river dams and water conservancy construction, marine and marine systems, instrument and beverage equipment, chemical equipment, medical equipment, water conservancy and hydropower monitoring.

WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment

WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment

Product Name WNK81mA Diffused Silicon Pressure Sensor Transducer For Water Treatment System
Pressure Type Gauge pressure, sealing pressure, absolute pressure
Measure Range 0-20kPa~60MPa
Output 0.5-4.5v, 4-20mA, I2C, 0-5V, 0-10V, customize
Accuracy 0.5%FS, 1%FS
Compensation Temperature -20…70ºC
Ingress IP65/IP67
Working Temperature -45 to 85ºC,
Electrical Connection Packard, M12*1, Cable outlet, Mini DIN43650, Customize
Process Connection G1/4, 1/4NPT, 1/8NPT, M12*1.5, Customize

Product Features

WNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water TreatmentWNK81mA Electronic Pressure Sensor Precision Pressure Sensor For Water Treatment
