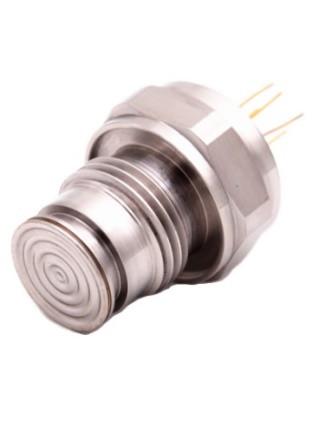

High Reliability Film Pressure Sensor G1/2 Flush Membrane Silicon Pressure Sensor
High Reliability Film Pressure Sensor G1/2 Flush Membrane Silicon Pressure Sensor
Specifications
Brand Name :
Sensors
Model Number :
SMP2210
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD33-50/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500000 units per year
Delivery Time :
5-8 working days
Packaging Details :
Carton Packing
Membrane :
Flush
Pressure connection :
G1/2
Theory :
MEMS
Description

SMP2210 OEM flat membrane pressure sensor

Overview

SMP2210 series flush diaphragm pressure sensor core uses MEMS silicon die, combined with our company's unique design and production process. Each product's production has adopted a strict aging, screening and testing processes, to ensure excellent quality and high reliability, and to provide high-quality products for the long-term use of customers.

The product uses flush membrane thread installation structure, easy to clean, high reliability, suitable for food, hygiene or viscous medium pressure measurement.

Features

Range: -100kPa～20kPa…10MPa

Wide temperature compensation 0℃~70℃

2 times overload pressure

SS 316L

Flat model structure design, easy to clean without scaling

Application

Food, beverage, health industry

Process control

Viscous media pressure measurementn

Gas, liquid and vapor pressure measurement

Outline Structure:(Unit: mm)

High Reliability Film Pressure Sensor G1/2 Flush Membrane Silicon Pressure Sensor

Parameter:

Item Min. Typ. Max. Units

Linearity

 ±0.15 ±0.2 %FS,BFSL
Repeatability ±0.05 ±0.075 %FS
Hysteresis ±0.05 ±0.075 %FS
Zero output ±2.0 mV DC
FS output 45 130 mV DC
Compensated temp. range 0～70 (0A/0B 0~60) ℃
Working temp. range -40～125 ℃
Storage temp. range -55～150 ℃
Zero temp. error ±0.75 ±1.0 %FS, @25℃
Full temp. error ±0.75 ±1.0 %FS, @ 25℃
Long term stability error ±0.1 %FS/year
Note:1. The above performance indicators are tested under the benchmark conditions.
2. The temperature range for temperature drift test is the compensation temperature range.
