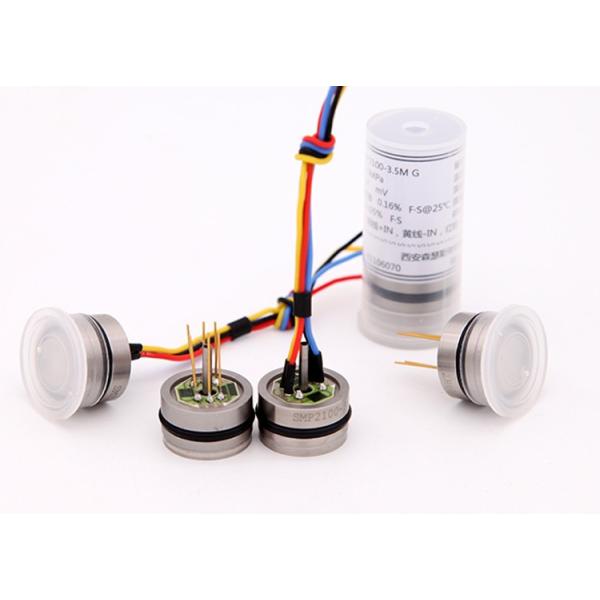

Thinner Diffused Silicon Pressure Sensor Compact Size Long Service Life
Thinner Diffused Silicon Pressure Sensor Compact Size Long Service Life
Thinner Diffused Silicon Pressure Sensor Compact Size Long Service Life
Thinner Diffused Silicon Pressure Sensor Compact Size Long Service Life
Thinner Diffused Silicon Pressure Sensor Compact Size Long Service Life
Thinner Diffused Silicon Pressure Sensor Compact Size Long Service Life
Specifications
Certification :
CE RoHS
MOQ :
1-49 Pieces
Price :
$12.00
Brand Name :
Sensors
Model Number :
SMP2160
Place of Origin :
China
Sensor type :
Diffused Silicon
Size :
Compact
Output signal :
mV
Supply voltage :
Max 2mA
Selling Units :
Single item
Single package size  :
1.65X1.9X cm
Single gross weight :
0.030 kg
Description

Product Description:

SMP2160 series pressure sensor uses high stability diffusion silicon chip, the measured medium pressure can be transferred to silicon chips through the diaphragm and silicone oil transfer to the diffusion of silicon chips, the use of diffusion silicon piezo-resistive effect principle, to achieve the purpose of measuring the size of liquid, gas pressure.

Features:

n Range: -100kPa…0kPa~20kPa…3.5MPa

n SS 316L

n φ19mm×5.55mm

n high precision, high stability

Application:

n Industrial process control

n Gas, liquid and vapor pressure detection

n Level measurement

Outline structure:(unit: mm)

Thinner Diffused Silicon Pressure Sensor Compact Size Long Service Life

Specification:

Structural Condition

Diaphragm material

SS 316L

Housing material

SS 316L

Pin Wire

Gold-plated karaf /100mm silicone rubber wire

Back pressure tube

SS 316L (gauge and negative pressure only)

Seal ring

Nitrile rubber

Electrical Condition

Power supply

≤2.0mADC

Impedance input

2.5~5kΩ

Impedance output

2.5kΩ~5kΩ

Response

(10%~90%):<1ms

Insulation resistance

100MΩ,100V DC

Overpressure

2times FS, ( 0C/0B/0A/02 5times FS)

Environmental Condition

Media applicability

Fluid which has no corrosion on stainless steel and nitrile rubber

Shock

No change at 10gRMS,(20~2000)Hz

Impact

100g,11ms

Position effects

Deviate 90° from any direction, zero change≤±0.05%FS

Basic Condition

Environment temperature

(25±1)℃

Humidity

(50%±10%)RH

Atmospheric pressure

(86~106) KPa

Power supply

(1.5±0.0015)mA DC

All tests are in accordance with relevant national standards, including GB / T2423-2008, GB / T8170-2008, GJB150.17A-2009, etc., and also comply with the Company's "Pressure Sensor Enterprise Standards" provisions of the relevant content.
