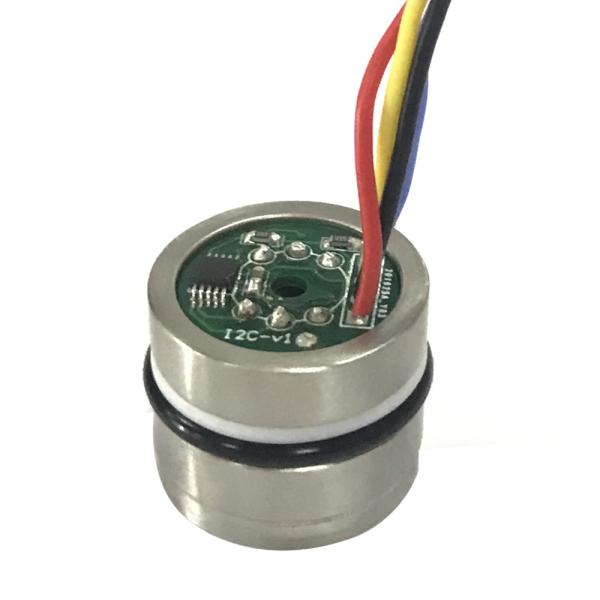

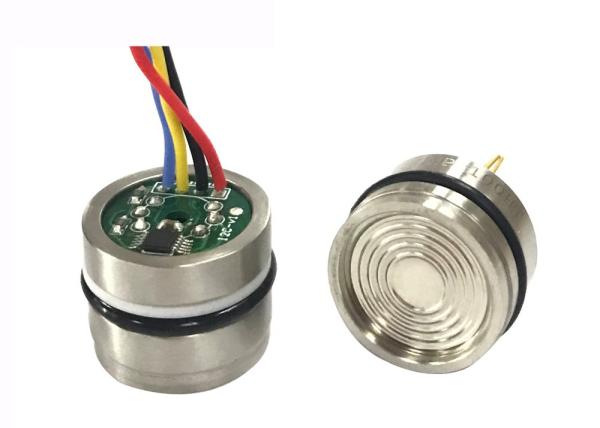

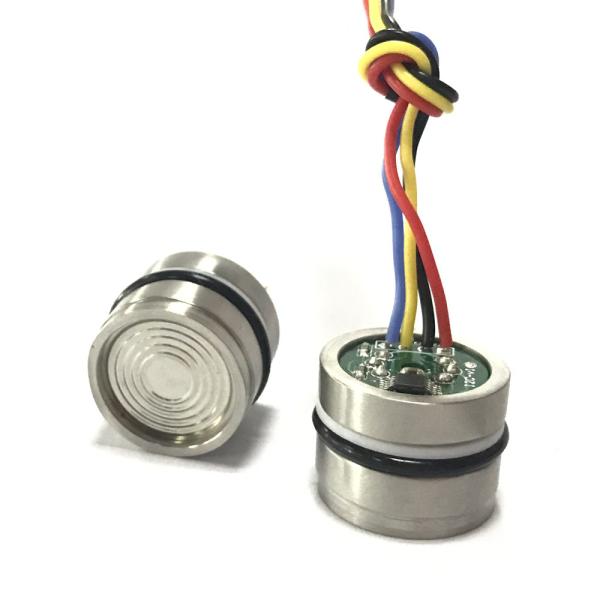

High Stable Film Pressure Sensor I2C Mems Piezoresistive Pressure Transducer
High Stable Film Pressure Sensor I2C Mems Piezoresistive Pressure Transducer
High Stable Film Pressure Sensor I2C Mems Piezoresistive Pressure Transducer
High Stable Film Pressure Sensor I2C Mems Piezoresistive Pressure Transducer
High Stable Film Pressure Sensor I2C Mems Piezoresistive Pressure Transducer
High Stable Film Pressure Sensor I2C Mems Piezoresistive Pressure Transducer
Specifications
Place of Origin :
China
Brand Name :
XI'AN SENSORS
Model Number :
SMP3011
Packaging Details :
Carton
MOQ :
50 - 199 Pieces
Price :
$16.00
Certification :
CE ISO9000
Product name :
Metal Film Isolation pressure sensor
Application :
Industrial process control
Material :
SS 316L
Volume :
19mm*15mm
Description
Product Description

Features

  • n Ranges: -100kPa…0~20kPa...70MPa

    n 24-bit High precision analog to digital conversion

    n Real-time compensation

    n Isolated structure for multiple media

    n Out put:15%~85%

    n I2C Bus protocol

Application

  • n Low power, smart device

    n Process control

    n Construction machinery

    n Medicine, food processing, packaging equipment

Outline construction (unit: mm)

High Stable Film Pressure Sensor I2C Mems Piezoresistive Pressure Transducer

Range<20MPa Range≥20MPa

Specification

Electrical characteristics

Range

0~100kPa……0~60MPa

Overload

1.5 times FS

Accuracy

±0.5%F.S. BFSL@25℃

Total error

±1.0%F.S. (Includes calibration error and temperature drift effects)

Input voltage

1.8V~3.6VDC

Output

15%~85% (I 2 C Bus protocol)

Working current

≤0.3mA,Standby current is about 0.1μA

Operating temperature

-10℃~80℃

Storage temperature

-40℃~125℃

Long-term stability

±0.2%FS/year

Output conversion

Percentage output(%)

Digital quantity (decimal)

Digital quantity (hexadecimal)

0

0

0x000000

10

1677722

0x19999A

15

2516582

0x266666

85

14260633

0xD99999

90

15099494

0xE66666

100

16777215

0xFFFFFF
