Industrial Thinner Water Pressure Sensor SMP2160 Piezoresistive Transducer
Industrial Thinner Water Pressure Sensor SMP2160 Piezoresistive Transducer
Industrial Thinner Water Pressure Sensor SMP2160 Piezoresistive Transducer
Industrial Thinner Water Pressure Sensor SMP2160 Piezoresistive Transducer
Industrial Thinner Water Pressure Sensor SMP2160 Piezoresistive Transducer
Industrial Thinner Water Pressure Sensor SMP2160 Piezoresistive Transducer
Specifications
Brand Name :
Sensors
Model Number :
SMP2160
Certification :
CE certificate
Place of Origin :
China
MOQ :
1 unit
Price :
USD9-25 per unit
Payment Terms :
T/T, Western Union
Supply Ability :
500000units per year
Packaging Details :
Inner pakcing by plastic box and outer packing by carton
Dimension :
Thinner
Sensor :
Silicon sensor
Material :
SST 316L
Output :
133+/-33mV
Description


SMP2160 Thinner Silicon Pressure Sensor
SMP2160 series pressure sensor uses high stability diffusion silicon chip, the measured medium pressure can be transferred to silicon chips through the diaphragm and silicone oil transfer to the diffusion of silicon chips, the use of diffusion silicon piezo-resistive effect principle, to achieve the purpose of measuring the size of liquid, gas pressure.

Features

Range: -100kPa…0kPa~20kPa…3.5MPa

SS 316L diaphgram

φ19mm×5.55mm

High precision, high stability

Thinner size

Application

Industrial process control

Gas, liquid and vapor pressure detection

Level measurement

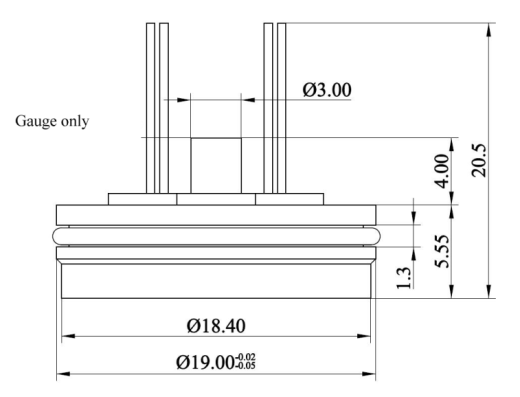

Outline structure:(unit: mm)

Industrial Thinner Water Pressure Sensor SMP2160 Piezoresistive Transducer

Specification

Structrual Condition
Diaphragm materialSS 316L
Housing materialSS 316L
Pin WireGold-plated karaf /100mm silicone rubber wire
Back pressure tubeSS 316L (gauge and negative pressure only)
Seal ringNitrile rubber
Electrical Condition
Power supply≤2.0mADC
Impedance input2.5~5kΩ
Impedance output2.5kΩ～5kΩ
Response(10%～90%):<1ms
Insulation resistance100MΩ,100V DC
Overpressure2times FS, ( 0C/0B/0A/02 5times FS)
Environmental Condition
Media applicabilityFluid which has no corrosion on stainless steel and nitrile rubber
ShockNo change at 10gRMS,(20～2000)Hz
Impact100g,11ms
Position effectsDeviate 90° from any direction, zero change≤±0.05%FS
Basic Condition
Environment temperature (25+/-1)℃
Humidity(50%+/-10%)RH
Atmospheric pressure(86~106) KPa
Power supply(1.5+/-0.0015)mA DC
All tests are in accordance with relevant national standards, including GB / T2423-2008, GB / T8170-2008, GJB150.17A-2009, etc., and also comply with the Company's "Pressure Sensor Enterprise Standards" provisions of the relevant content.

Parameter

Item Min. Typ. Max. Units

Linearity

 ±0.15±0.25%FS,BFSL
Repeatability ±0.05±0.075%FS
Hysteresis ±0.05±0.075%FS
Zero output ±2.0mV DC
FS output45100 mV DC
Compensated temp. range0～70℃
Working temp. range-40～125℃
Storage temp. range-55～150℃(no Sealing ring)
Zero temp. error ±0.75±1.0%FS,@ 25℃
Full temp. error ±0.75±1.0%FS,@ 25℃
Long term stability error ±0.2 %FS/year
Note:1. The above performance indicators are tested under the benchmark conditions.
2. The temperature range for temperature drift test is the compensation temperature range.
